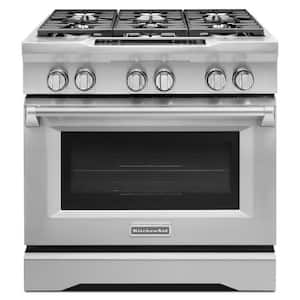

5.1 cu. ft. Commercial-Style Slide-In Dual Fuel Range with Self-Cleaning True Convection Oven in Stainless Steel

  • Dual fuel combines gas cooking surface with an electric oven
  • EVEN-HEAT True Convection helps keep the perfect temperature
  • 20K BTU ULTRA POWER dual-flame burner ranges from high-to-low
  • View More Details

Product Details

Detail Image
Appliance Type
Warranty Information
Width Measurement
Height Measurement
Depth Measurement
Cooking Type
Number of Burners or Elements
Tips for Measuring Your Space
Measure the Front Door
Walk the Path of Delivery
Measure the Cabinet Opening
This KitchenAid Commercial-Style dual fuel slide-in range features a gas cooktop with electric oven. The 20000 BTU Ultra Power Dual-Flame Burners and the Even-Heat True Convection System allow passionate cooks to reach their gourmet potential. KitchenAid commercial-style ranges bring the tools of restaurant chefs into residential kitchens.
  • 5.1 cu. ft. extra-large oven capacity provides enough room to cook an entire meal at once
  • Cooktop features 6 gas burners (two 20000 BTU Dual-Flame burners, two 15000 BTU burners and two 5000 BTU simmer burners) for supreme cooking flexibility
  • The design of the Dual-Flame burner allows fine-tuned, versatile control from an ultra-low heat for simmering and melting to very high heat for searing, all on the same burner
  • Convect Bake, Roast and Broil. Intuitive convection settings provide even baking results on all racks, even browning and faster roasting times for meats and decrease the time needed to get exceptional results similar to outdoor grilling
  • Electric oven for even baking and browning
  • Full and Center Broiling options. Choose Full Broil to broil larger amounts of food using both the broil burner and the broil element. Choose Center Broil to broil smaller amounts of food using only the inner broil burner
  • Touch-activated oven controls with digital display are easy to see, use and keep clean
  • Oven control lock feature shuts down the control panel pads to avoid unintended use of the oven
  • Self-cleaning oven with adjustable cleaning levels lets you match the cleaning time to the cleaning need
  • Oversized oven window and 2 oven lights let you check cooking progress without opening the oven door and disturbing oven temperature
  • 3 oven racks, including a Satinglide roll-out extension rack that allows easy access to position and remove food in the oven
  • Porcelain-coated cast-iron cooktop grates for durable wear
  • Limited 1-year warranty, plus a limited 5-years parts only warranty on select component parts
  • Click Here for details on the services included with Delivery & Basic Hook-up, Installation options for Major Appliances, and Appliance Return Policy Information
  • California residents


Dimensions: H 35.75 in, W 36 in, D 27.75 in



Depth With Door(s) Open 90 Degrees (In.)
45.5 in
Oven Interior Depth (in)
Oven Interior Height (in)
Oven Interior Width (in)
Product Depth (in.)
27.75 in
Product Height (in.)
35.75 in
Product Width (in.)
36 in
Range Size (Width)
36 in.


Amperage (amps)
50 A
Appliance Category
Appliance Type
Dual Fuel Range
Burner Grate Material
Cast Iron
Burner No.1 BTU
Burner No.2 BTU
Burner No.3 BTU
Burner No.4 BTU
Burner No.5 BTU
Burner No.6 BTU
Burner Type
Capacity of Oven (cu. ft.)
5.1 cu ft
Capacity of Oven (cu. ft.)
5.1 cu ft.
Cleaning Type
Self Cleaning
Color of Cooktop
Stainless Steel
Color/Finish Family
Stainless Steel
Control Type
Controls Location
Front Control
Cooktop Features
Continuous Grates, LP Convertible, Sealed Burners
Drawer Type
No Drawer
Fuel Type
Dual Fuel
Ignition Type
Power Cord, Propane (LP) Conversion Kit
Number of Burners
6 burner
Number of Oven Racks
Number of Rack Positions
Oven Cleaning Options
Oven Cooking Process
True Convection
Oven Features
Oven Temperature Probe
Oven Settings
Delay Bake/Delay Start, Proofing Mode, Sabbath Mode
Product Weight (lb.)
469 lb
Range Installation Type
Voltage (volts)
120/240 V

Warranty / Certifications

Certifications and Listings
ADA Compliant, UL Listed
Manufacturer Warranty
Limited 1-year warranty / 5-year parts only select component parts

Questions & Answers

Q:Do you have to have outside ventilation for this range or can it just be a non-vented range hood with just a charcoal f
by|Jun 28, 2019
2 Answers
Answer This Question

A:  It oes not require outside ventilation.

by|Sep 30, 2020

    A:  Hi Jan, we suggest your range hood be at least 36" wide, capable of 80,000 BTU and 600 CFM or larger range hood be installed. Our hoods of this class are externally vented, with options for through the wall or ceiling vent runs being most common.

    by|Jul 1, 2019
      Q:Is the Misty Blue limited edition self cleaning or manual cleaning?
      by|Jun 11, 2019
      2 Answers
      Answer This Question

      A:  Hello Michael, please look at the Use and Care Guide below on page number 28. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances! https://images.homedepot-static.com/catalog/pdfImages/03/034c8f05-f4f6-4e40-af15-9938469d6871.pdf

      by|Jun 13, 2019

        A:  It is self-cleaning.

        by|Jun 12, 2019
          Q:What is the maximum lower cabinet depth for a flush mount?
          by|May 18, 2019
          1 Answer
          Answer This Question

          A:  Hello Erin! The depth excluding the handle would be 27 3/4". Thank you for your inquiry on our KitchenAid appliances.

          by|May 29, 2019
            Q:For simmering, what is the lowest BTU?
            by|May 2, 2019
            1 Answer
            Answer This Question

            A:  Hi Algonquin, we would recommend checking out the Use and Care Guide, page 10, for more information on simmering. You can find the Use and Care Guide at: https://images.homedepot-static.com/catalog/pdfImages/8e/8e8868bb-e19b-4348-9c8a-dde1a97b1399.pdf

            by|May 3, 2019
              Showing 1-4 of 34

              Customer Reviews

              4.7 out of 5
              • 4.7
                out of 249 reviews
              • 92% recommend this product
              Filter by:
              Showing 1-10 of 249 reviews
              Simply Outstanding.
              [This review was collected as part of a promotion.] We finally built our dream kitchen; as always, the appliances are the showstoppers in the room. We bought this stove, plus a KitchenAid fridge (amazing) and dishwasher (it's so darn smart!). My first dual-fuel stove. The cooktop is flat, the burners are easy to set and the super burners get a large pot boiling in minutes. Frankly, I was worried the stove would take a while to reach temperature. It's faster than the old gas stove it replaced. Easy to use and shockingly accurate at every temp, critical for some baking. And slow cooking a roast at 125 for ten hours - easy peasy. Oh, and the roller oven rack - amazing. This is a cook's stove!
                • Recommended
                Great style, quality and function
                [This review was collected as part of a promotion.] Installed this range in our new remodled kitchen. Out of the crate it ran flawlessly with only minor adjustments. The lcd Touch screen is intuitive and easy to understand. It controls all functions of the oven. The oven is very spacious and will accommodate large meals. It pre heats quickly and temp is very accurate. The cooktop is large and will handle a variety of equipment. I love the 2 power burners with 20k output. There is also a simmer function, that gives precise control down to an almost invisible flame. No more burning in our pots and pans. The quality of this range is equal or better than its competitors such as Viking or Wolf. Plenty of power on the cooktop and temp accuracy in the oven
                  • Recommended
                  excellent quality and gorgeous to look at !!
                  [This review was collected as part of a promotion.] Picked this range for new construction home we had built...It is a gem with many unique features..It is a convection and regular Bake oven and looks absolutely gorgeous.I receive never ending compliments ..It runs quietly and cooks the food so nicely.Highly recommend !!!
                    • Recommended
                    Great Product
                    [This review was collected as part of a promotion.] We love our new stove! It is Beautiful and provides amazing quality!
                      • Recommended
                      Loving it !!
                      [This review was collected as part of a promotion.] Just put it in a month ago and we are very pleased with performance and ease operation Terrific looking with the kitchen aid exhaust fan too !
                        • Recommended
                        Awesome Oven!
                        [This review was collected as part of a promotion.] I bought this oven after having a Wolfe for two years. We moved and remodeled and I did not want to spend the money. This works just as good as the Wolfe and I love each individual burner. Highly recommend!
                          • Recommended
                          Big, Bold and Beautiful!
                          I don’t know if this was crazy or stupid, but we designed our kitchen around this range without having seen it! We could not find any retailer that had a Misty Blue range on the floor, so we ordered the mixer to gauge the color and fell in love. We took a gamble, ordered the range, and designed our kitchen around it. Luckily the risk paid off, and it is stunning! Not only is it beautiful to look at, it is beautiful to cook with! The convection oven bakes like a dream with consistent, even heat. I made cinnamon rolls and they rose and browned perfectly without having to rotate the pan halfway.... same with loaves of bread. I can’t tell you when I’ve ever had so much fun cooking and baking. Thanks KitchenAid!
                            • Recommended
                            Gorgeous and practical
                            [This review was collected as part of a promotion.] We recently did a complete kitchen makeover and purchased this range. It is beautiful and functions very well. The burner top comes apart easily to clean, and it cooks well. The gas burners are great. The oven works well too, and it is VERY spacious. I have fit several things at once in it. It was the perfect range for us. We looked at several options and I am glad we went with this one.
                              • Recommended
                              Fantastic range!
                              [This review was collected as part of a promotion.] Bought all KitchenAid appliances for remodeled kitchen. So glad we did. This range is fantastic. First time owning gas burners and we love it. Range is extremely functi9nal and has a great look!
                                • Recommended
                                Owner LOVE the Range
                                [This review was collected as part of a promotion.] This not only works great but makes a statement in the new remodeled kitchen!
                                  • Recommended
                                  Showing 1-10 of 249 reviews
