Internet #100206376

Model # PS5666XCCV4

Store SKU #571393

0785007286694

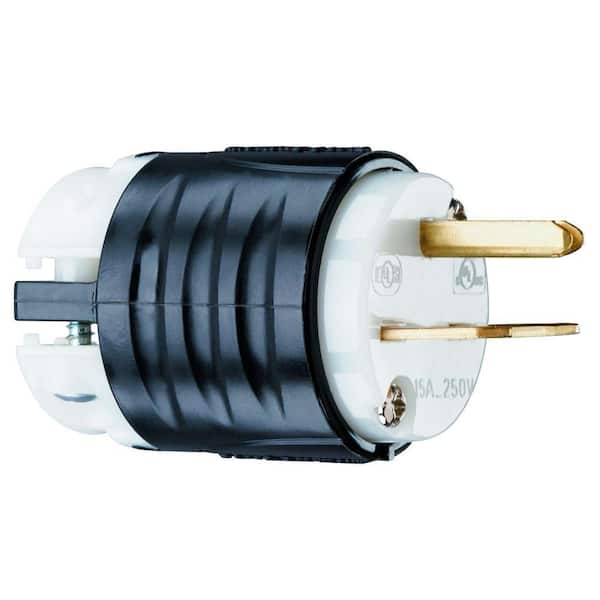

Pass & Seymour Extra-Hard Use 15 Amp 250-Volt NEMA 6-15P Straight Blade Plug

  • Fast and easy to install
  • Durable construction stands up to impacts, chemicals, and weather
  • Large ribs on body for a superor grip when mating
Contains 4 units  ($2.12  /unit)
$8.49

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Fast and easy to install
  • Durable construction stands up to impacts, chemicals, and weather
  • Large ribs on body for a superor grip when mating
Pass & Seymour Straight Blade Plugs are built to work for you, offering years of dependable service in the toughest real-world conditions and delivering maximum productivity on the jobsite. They offer more safety and productivity on the job with quick, intuitive wiring and a recessed cord grip to reduce screwdriver slippage. You’ll see durability and productivity everywhere from our choice of premium materials and uncompromising construction to our superior, innovative designs based on decades of feedback from contractors and MRO professionals.
  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire, saving time and money during installation
  • See-through, thermoplastic terminal chamber offer a clear view of terminals and wire connections
  • Tapered wire wells guide conductors into captivated, staked clamping nuts
  • Housing is keyed for fast alignment with terminal selection
  • Chemical and impact-resistant nylon 6 shell material offers unparalleled durability
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity while the ground pin is reinforced for added strength and safety
  • Color coded terminal screws are positioned on the same plane and backed out for fast installation
  • Double-wipe, firm-grip ground contact and triple-wipe power contacts guarantee a superior connection
  • Recessed cord-grip screw reduces screwdriver slippage to improve overall safety
  • Rugged external two-piece cord grip provides uniform pressure for superior retention of conductors
  • Internal dust shield keeps terminals free of contaminants
  • Cord diameter: 0.230 in. to 0.720 in.
  • Note: product may vary by store

Product Overview

  • Fast and easy to install
  • Durable construction stands up to impacts, chemicals, and weather
  • Large ribs on body for a superor grip when mating
Model #: PS5666XCCV4
Sku #: 571393
Internet #: 100206376

Pass & Seymour Straight Blade Plugs are built to work for you, offering years of dependable service in the toughest real-world conditions and delivering maximum productivity on the jobsite. They offer more safety and productivity on the job with quick, intuitive wiring and a recessed cord grip to reduce screwdriver slippage. You’ll see durability and productivity everywhere from our choice of premium materials and uncompromising construction to our superior, innovative designs based on decades of feedback from contractors and MRO professionals.

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire, saving time and money during installation
  • See-through, thermoplastic terminal chamber offer a clear view of terminals and wire connections
  • Tapered wire wells guide conductors into captivated, staked clamping nuts
  • Housing is keyed for fast alignment with terminal selection
  • Chemical and impact-resistant nylon 6 shell material offers unparalleled durability
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity while the ground pin is reinforced for added strength and safety
  • Color coded terminal screws are positioned on the same plane and backed out for fast installation
  • Double-wipe, firm-grip ground contact and triple-wipe power contacts guarantee a superior connection
  • Recessed cord-grip screw reduces screwdriver slippage to improve overall safety
  • Rugged external two-piece cord grip provides uniform pressure for superior retention of conductors
  • Internal dust shield keeps terminals free of contaminants
  • Cord diameter: 0.230 in. to 0.720 in.
  • Note: product may vary by store

Compare Similar

Compare Similar Products
Brand Legrand Leviton Legrand Leviton
Name Pass & Seymour Extra-Hard Use 15 Amp 250-Volt NEMA 6-15P Straight Blade Plug 20-Amp Industrial Grade Locking Plug In Black/White Pass & Seymour Extra-Hard Use 20 Amp 125-Volt NEMA 5-20P Straight Blade Plug 30 Amp 125-Volt 2-Pole Angle Travel Trailer Plug, Black
Price
$8.49
$11.87
$11.97
$11.98
Ratings (33) (5) (33) (114)
Connection Type Straight Blade Twist Lock Straight Blade Straight Blade
Maximum Amperage (amps) 15 20 20 30
Electrical Features No Additional Features No Additional Features No Additional Features No Additional Features
Plug/Connector Plug Plug Plug Plug
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
1.55
Product Height (in.)
5.859
Product Width (in.)
3.75

Details

Color Family
Black
Color/Finish
Black & White
Connection Type
Straight Blade
Electrical Features
No Additional Features
Electrical Product Type
Plug
Grounding
Self-Grounding
Indoor/Outdoor
Indoor
Male/Female
Male
Material
Nylon
Maximum Amperage (amps)
15
Mounting Type
Plug-In
NEMA Configuration
NEMA 6
Number of Poles
3
Package Quantity
4
Plug/Connector
Plug
Rating
General Purpose
Returnable
180-Day
UL Listing
1-UL Listed
Voltage
250 volt
Wire Type
3-Wire Grounding

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
1 Year Limited

Specifications

Dimensions

Product Depth (in.)
1.55
Product Height (in.)
5.859
Product Width (in.)
3.75

Details

Color Family
Black
Color/Finish
Black & White
Connection Type
Straight Blade
Electrical Features
No Additional Features
Electrical Product Type
Plug
Grounding
Self-Grounding
Indoor/Outdoor
Indoor
Male/Female
Male
Material
Nylon
Maximum Amperage (amps)
15
Mounting Type
Plug-In
NEMA Configuration
NEMA 6
Number of Poles
3
Package Quantity
4
Plug/Connector
Plug
Rating
General Purpose
Returnable
180-Day
UL Listing
1-UL Listed
Voltage
250 volt
Wire Type
3-Wire Grounding

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
1 Year Limited

Questions & Answers

My ac has a prong like this and i need an standard adapter, do you have an adapter for this kind of prong?

Asked by: Ricky
This is a standard plug for a 220-250 volt device that uses up to 15 Amps.
Answered by: Andre
Date published: 2018-04-21

Is there any difference to the application if you use this 6-15p vs a 6-20p in a 6-20 outlet if y...

Is there any difference to the application if you use this 6-15p vs a 6-20p in a 6-20 outlet if you follow the recommendation of having it connected to a 20 amp circuit? In other words, does it matter what plug the machine is running on as long as the recommended circuit is met and both the plug & outlet compliment each other?
Asked by: Gunter007
The NEMA 6-20 outlet provides a way to connect either a NEMA 6-15 or 6-20 plug, it accepts either. A NEMA 6-15 outlet will only accept a NEMA 6-15 plug.
Answered by: Andre
Date published: 2018-04-21

How would I hook a `12/4 cord to this plug?

How would I hook a `12/4 cord to this plug?
Asked by: Jd
You don't. A 12/4 cord has a neutral wire that has no connections available on this outlet. If your device uses that neutral connection, you cannot use this plug.
Answered by: Andre
Date published: 2018-04-21
