Internet #202077684

Model #R52-00123-00W

Store SKU #613947

Store SO SKU #162677

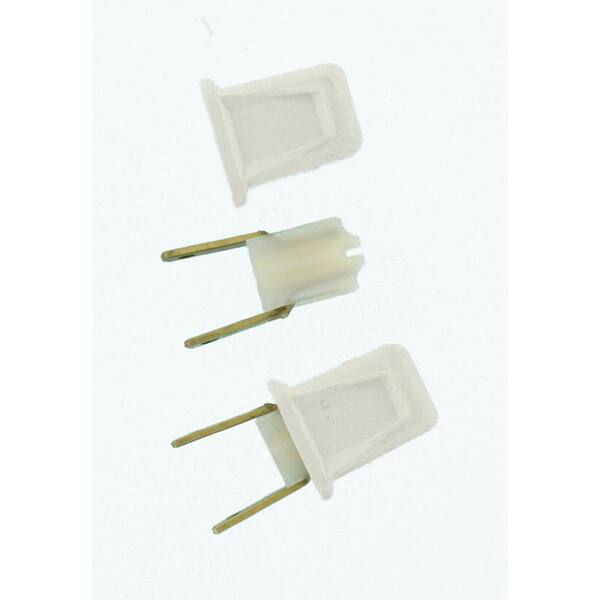

10 Amp 2-Pole Straight Blade Plug, White

  • Convenient - offers optimum conductivity with solid brass blades
  • Design - built-in rejection prevents loose contact of the plug
  • Durable - thermoplastic construction resists impact
  • See More Details
$129

Frequently Bought Together

+
+
Price:
$129

Product Overview

The Leviton line of straight blade plugs and connectors includes: Black and White Industrial Grade devices that resist impact, corrosion and chemicals; Hospital Grade devices that meet the highest standards for dependable, long-term performance; Wet guard for water and moisture resistance; Dust guard to resist dust and dirt; Python, with an innovative interlocking design; rugged nylon flanged inlets and outlets; and integrated inlets and outlets with weather resistant covers.
  • California residents
  • Non polarized
  • Brass plug blades and connector contacts for maximum conductivity
  • Available in white, brown and ivory
  • UL listed

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Electrical Plugs & Connectors

current product
10 Amp 2-Pole Straight Blade Plug, White
15 Amp 125-Volt 2-Pole 2-Wire Polarized Plug, White15 Amp White Non-Polarized Angle Plug15 Amp 125-Volt Non-Polarized Angle Plug, Black
BrandLevitonLevitonLevitonLeviton
Name10 Amp 2-Pole Straight Blade Plug, White15 Amp 125-Volt 2-Pole 2-Wire Polarized Plug, White15 Amp White Non-Polarized Angle Plug15 Amp 125-Volt Non-Polarized Angle Plug, Black
Price
$129
$199
$199
$199
Ratings
(26)
(47)
(33)
(23)
Voltage125 volt125 volt125 volt125 volt
Plug/ConnectorPlugPlugPlugPlug
Connection TypeStraight BladeStraight BladeStraight BladeStraight Blade
Electrical FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional Features
Indoor/OutdoorIndoorIndoorIndoorIndoor
Maximum Amperage (amps)10151515
Mounting TypePlug-InPlug-InPlug-InPlug-In
Wire Type2-Wire2-Wire2-Wire2-Wire
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
0.75
Product Height (in.)
1.06
Product Width (in.)
0.98

Details

Color Family
White
Color/Finish
White
Connection Type
Straight Blade
Electrical Features
No Additional Features
Electrical Product Type
Plug
Grounding
Ungrounded
Indoor/Outdoor
Indoor
Male/Female
Female
Material
Nylon
Maximum Amperage (amps)
10
Mounting Type
Plug-In
NEMA Configuration
NEMA 1
Package Quantity
1
Plug/Connector
Plug
Rating
General Purpose
Returnable
180-Day
UL Listing
1-UL Listed
Voltage
125 volt
Wire Type
2-Wire

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
2-Year Limited

Questions & Answers

4Questions8Answers

Why do customers go online to complain about trouble they had with products, but they don't go on...

Asked by b0bb0 December 15, 2018
0
Answers

Can this plug be used as a replacement plug for a pre-strung Christmas tree where the previous pl...

Asked by Bakerview December 4, 2017
2
Answers

This does not have a fuse, so if you try to use it you will be losing the over-current protection that the fuse provided. It will probably work, but at increased risk.

Does this plug come in brown

Asked by Sharyn September 27, 2017
1
Answer

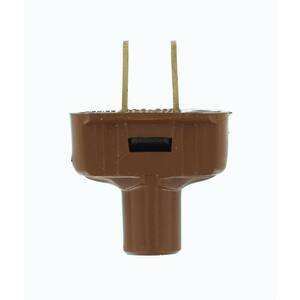

Although Leviton does make versions of this item in brown, ivory and white, the only color I was able to find at my local Home Depot was white. I also did a quick search and didn't see the brown one on the Home Depot website as of Oct 13, 2017. If it's still not available, perhaps it could be special ordered from your local Home Depot. Brown Model 123 UPC: 078477052983 URL: http://www.leviton.com/en/products/123

Can you use this plug on a lamp cord with a wire designed for a polarized plug

Asked by Lampjunkie November 17, 2016
5
Answers

Better to use a polarized one. The polarized plug is a safety feature. One of the wires in the cord is the hot wire, the other is neutral. The hot wire can kill you. The lamp is designed to keep the hot wire away from you. For example, the screw base of a light bulb needs to be connected to the neutral wire because it's possible to accidentally come in contact with it. The center button on the base of the bulb is well away from anywhere your (or a little one's) hands might touch. May seem like a little thing, but doing CPR on a child is the last thing I want to be doing.

Customer Reviews

  • 26 Customer Reviews
  • 2.9 out of 5 stars overall
50% of customers recommended.
Overall Ratings
5star-icon(8)
4star-icon(3)
3star-icon(2)
2star-icon(3)
1star-icon(10)
Sort By:
I understand all the complaints about this plug. But I like it. I have used several. Yes, the spe...
I understand all the complaints about this plug. But I like it. I have used several. Yes, the specs do not state that you MUST use 18/2 lamp cord - the stuff that is called zip cord by most of us. It is skinny and has a figure 8 shaped cross section. That is an important issue for this plug to be used without hassle. See attached picture of the end of the required wire. Also, I found that it took a little practice to put it on the wire easily. The main trick is to trim the end of the lamp cord squarely and to insert the end until it seems to hit bottom. But then you must push very firmly for the wire to get passed some obstruction. As soon as that barrier is past the wire will slide in another quarter of an inch or so before it bottoms. Now squeeze the prongs together to pierce the insulation. Then the cover will slide down the wire and snap into place. (You DID remember to insert the wire through the cover FIRST, didn't you?) Actually, the enclosed assembly instructions are pretty good, except they don't tell you about the wire type required and don't tell you that you MUST give that extra push to get the wire to bottom correctly - although they allude to the problem by saying that the end of the wire should be inserted all the way to the bottom edge of the plug.
Was this helpful?
5
0
Great product I have used for years. I restore around...
Great product I have used for years. I restore around 100 lamps a year. I also buy my sockets and wire when buying the plugs. I am very disappointed you are discontinuing them. I will have to shop elsewhere due to this. Discontinuing a great product.
Was this helpful?
0
0
great product
great product
Was this helpful?
1
0
Did exactly what I needed
Worked exactly as it should. Our puppy chewed the plug off our lit tree. This was a perfect fix. Super quick and easy. Took 5 minutes to cut the wires and put the new plug on. Perfect for Christmas lights.
Was this helpful?
0
0
I buy these all the time for my lighting business...
I buy these all the time for my lighting business and they work great. Super simple.
Was this helpful?
0
0
Purchased these and also 18g bulk lampcord. The size of the insulation will not fit into the plug...
Purchased these and also 18g bulk lampcord. The size of the insulation will not fit into the plug so basically worthless unless you use a smaller diameter lampcord.
Was this helpful?
0
0
Response from levitonProductExpertNovember 20, 2018
Leviton sincerely regrets your experience. We’d like to know more about your specific installation and the problem you encountered. Please send an email to ebusiness@leviton.com with your phone number and the best times to call, and we will have a technical support specialist call you to get some additional information and offer assistance.

David Keller
Leviton
Vice President, e-Business
Absolute garbage. Use for 18 ga. duplex wire only rarely found in any home device. Tried single...
Absolute garbage. Use for 18 ga. duplex wire only rarely found in any home device. Tried single wires but must be duplex wire. Home depot should not sell junk like this.
Was this helpful?
1
0
Response from levitonProductExpertJuly 20, 2018
Leviton sincerely regrets your dissatisfaction and appreciates your feedback. We’d like to know more about your specific installation and the problem you encountered. Please email to ebusiness@leviton.com your phone number and best times to call and we will have a technical support specialist call you to offer assistance.

David Keller
Leviton
Senior Director, e-Business
This is a small plug for lamp cords, etc. The design makes it easy to pull out of a socket, unli...
This is a small plug for lamp cords, etc. The design makes it easy to pull out of a socket, unlike several other plugs that are slippery and slope toward the back, making them difficult to remove. Assembly can be somewhat difficult. You have to force the wires all the way into the part with the prongs, press the prongs together, and then force the prong part into the outer case. When I say force, I mean that it is not an easy job. But when done I'm sure you will be satisfied with it from there on. If you have a spare outlet that is not installed you might consider placing the prong part into it, place that on a flat surface, and then force the outer case down onto the inner part. Older people and those that don't have strong hands may need help with assembly.
Was this helpful?
0
0
This thing comes with no instructions. I made some guesses and popped the circuit breaker before ...
This thing comes with no instructions. I made some guesses and popped the circuit breaker before I got it right. It doesn't work with 14 gauge solid wire, but it seems to work well with 16 gauge stranded wire. Don't strip the wires, just push the insulated wires into the two holes at the back of the plug. When you push the back shell on it will push the prongs through the insulation, making contact with the conductors.
Was this helpful?
1
0
Reminder: This plug is designed for only 10 amps. May not fit things like 18+ gauge zipcord.
Reminder: This plug is designed for only 10 amps. May not fit things like 18+ gauge zipcord.
Was this helpful?
0
0
