15 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White

  • Slim design for easy installation vs other GFCIs
  • Patented reset lockout prevents reset if protection is lost
  • Self-test feature helps ensure GFCI is providing protection
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

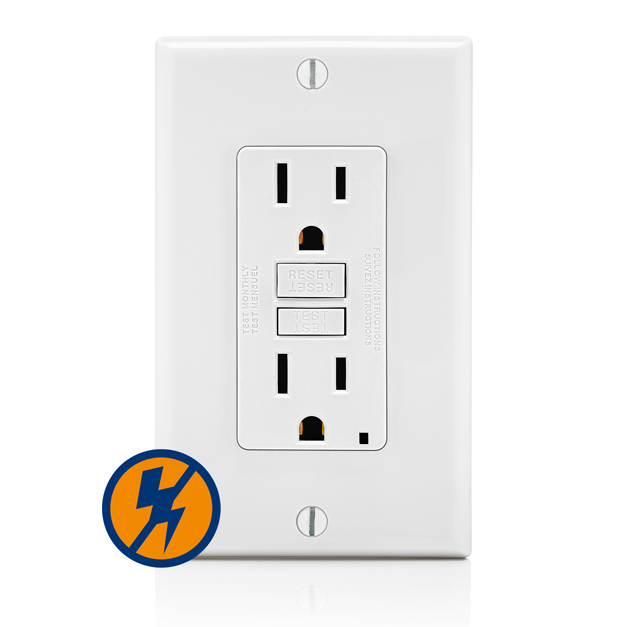

Protects Against Electric Shock

Protects Against Electric Shock

Cuts off power in a fraction of a second if a ground-fault is detected

Status Indicator Lights

Easy-to-Read Diagnostics

Status Indicator Lights for at-a-glance protection status

Easy Installation

Fast, Easy Installation

Slimmest profile on the market for fast and easy installation, even in shallow wallboxes

Pressing reset button

Patented Reset Lockout

Prevents reset if GFCI is damaged and cannot respond to a ground-fault

Adapts monitoring

Auto-Monitoring

Adapts and shifts to more frequent testing if potential problem is detected

Superior resistance

Advanced Electronics

Superior resistance to electrical surges, over-voltages and false triggers

Exceeds UL Requirements

Exceeds UL Requirements

Trip threshold meets or exceeds UL requirements for tripping time

Easy Wiring Options

Easy Wiring Options

Back and side wire capable

Wire seating visual

External Backwire Clamps

Provides visual indication of proper wire seating

Withstands

Rugged Design

Withstands high torque and resists wire pullout

Self-grounding clip included

Self-Grounding Clip

Standard brass self-grounding clip included

Compatible with all Leviton Decora products

Decora Compatible

Compatible with all Leviton Decora devices and wallplates; available in select Decora colors

Limited Two-Year Warranty

Warranty

Limited Two-Year Warranty

Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
  • Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted
  • On initial power up, tests the GFCI within 3 seconds
  • Auto-monitoring exceeds the UL requirement
  • Auto adapts and shifts to more frequent testing if potential problem is detected
  • Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers
  • Reduced depth makes it easier to install in any electrical box, even shallow ones
  • Terminals allow for easy wiring options - back and side wire capable
  • External back wire clamps provide visual indication of proper wire seating
  • Withstands high torque and resists wire pullout
  • Standard brass self-grounding clip
  • Trip threshold meets or exceeds UL requirements for tripping time
  • Improved immunity to high-frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages
  • Compatible with all decora devices and wall plates; available in select decora colors
  • UL fed spec WC-596 rated

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Electrical Outlets & Receptacles

15 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White20 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White
current product
15 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White
3.6A USB Dual Type A In-Wall Charger with 15 Amp Tamper-Resistant Outlets, White
BrandLevitonLevitonLevitonLeviton
Name15 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White20 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White15 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White3.6A USB Dual Type A In-Wall Charger with 15 Amp Tamper-Resistant Outlets, White
Price
Ratings
(1400)
(1742)
(1529)
(1478)
RatingTamper ResistantGeneral PurposeGeneral PurposeTamper Resistant
Number of Outlets2222
Indoor/OutdoorIndoorIndoorIndoorIndoor
Electrical FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional FeaturesUSB Port
Outlet TypeGFCIGFCIGFCIStandard
Outlet ConfigurationDuplexDuplexDuplexDuplex
Mounting TypeScrew-InScrew-InScrew-InIn-Wall
NEMA ConfigurationNEMA 5Non-NemaNon-NemaNEMA 5
GroundingSelf-GroundingUngroundedSelf-GroundingUngrounded
Outlet LocationWallWallWallFloor,Wall
View ProductView ProductView ProductView Product

Specifications

Dimensions

Outlet Depth (in.)
1.6875
Outlet Height (in.)
4.25
Outlet Width (in.)
2.25

Details

Color Family
White
Color/Finish
White
Electrical Features
No Additional Features
Electrical Product Type
Outlet
Grounding
Self-Grounding
Indoor/Outdoor
Indoor
Maximum Amperage (amps)
15
Mounting Type
Screw-In
NEMA Configuration
Non-Nema
NEMA Configuration Receptacle
5-15
Number of Outlets
2
Number of Poles
2
Outlet Configuration
Duplex
Outlet Location
Wall
Outlet Material
Nylon
Outlet Type
GFCI
Package Quantity
1
Rating
General Purpose
Returnable
90-Day
Voltage
125 volt
Wired or Wireless
Wired

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
2- Year Limited

Questions & Answers

36Questions44Answers

i have power coming out of the receptacles but the green light is not on, did i wire the receptac...

Asked by rayray June 11, 2021
5
Answers

I think no. The light isn't very bright but it stays on so the wiring is not correct. There is a sheet of paper in the box with the plug that tells you the codes and I don't have mine anymore but either something is wrong with your wiring or the plug isn't working right.

Does this ground fault plug have a light on it

Asked by Kaikai June 7, 2021
5
Answers

Yes it does...green when everything is well!

Where to buy stick on numbers for breaker bix

Asked by Tom January 31, 2021
5
Answers

home depot

Can I use these to replace a light switch that I no longer use?

Asked by AM January 16, 2021
2
Answers

Where is your light switch? GFCI outlets are required by code in certain areas of garages, out-buildings, bathrooms, kitchens, and basements. If your current light switch is not in one of these areas and 4' up on a wall, it'll draw attention from any inspector should one notice it. This is also a 4-pack of outlets, so you are looking at a product where there are 4 of these duplex outlets. Sounds like you might be asking about just a regular 120V 15Amp duplex receptacle instead of this GFCI outlet which may be problematic if you have anything incompatible installed downstream from it.

how bright is the indicator light

Asked by gjfl20 August 18, 2020
3
Answers

Not super. You'll barely notice it unless you're looking for it.

How come the label in the outlet says 20amp when the box says 15 amp?

Asked by Eric August 15, 2020
1
Answer

these are in fact 15 AMP. the electrical code says that if you put more than one device on a 20 amp circuit you can install 15 amp devices. if it is a dedicated 20 amp outlets (wired from outlet straight to the panel) then you would be required to use a 20 amp

My 3 bathrooms were installed with product. Last week Isaias caused big power outage. After elect...

Asked by Henry August 10, 2020
5
Answers

If power was restored, there must be power feeding the ground fault itself. If power is determined to be at receptacle, the ground fault ecepticle must be replaced. Sometimes a lighting strike can cause the fault internal circuitry to be damaged. One way to check for power at GFI is with a non contact.voltage tester. When near or touching a wire with voltage, the meter will sound an alarm. Always shut off all power before working on receptacle.

can this be used for a 8000 btu air conditioner?

Asked by VOLTS July 12, 2020
5
Answers

If the air conditioner pulls less than 15 amps when running then it might work for a while but an air conditioner will pull 5 times the power rating when it starts up so it would really stress a GFCI.

is this tamper resistant

Asked by Alysha May 8, 2020
5
Answers

I don’t think so, but I didn’t chick since it is installed outdoors in a weather proof enclosure

Does this come with wall plates as well?

Asked by Covid19SucksBalls April 11, 2020
8
Answers

No, just the outlet

15 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White - page 2

Customer Reviews

  • 4.6
    out of 1,529 reviews
  • 93% recommend this product
Filter by:
Showing 1-10 of 1,529 reviews
Great GFCI Outlet
This Leviton GFCI outlet works nicely. I like how it has a light on the front of it to tell you the status of the GFCI. It is easy to test and reset.
by Sean691
Easy to install. Works excellent...
Easy to install. Works excellent
by HomeDepotCustomer
Just what the Dr. ordered for a failed GFCI. My original with the house, 17 year old bathroom GFC...
Just what the Dr. ordered for a failed GFCI. My original with the house, 17 year old bathroom GFCI failed (tripped and would only reset for a second before tripping again; I disconnected the downstream circuit, same result). The new Leviton works great and has the advantage of a green LED that the 17 year old didn't have, it shows when the outlet is live and protecting correctly.
by Nick
1 person found this helpful
These GFCI plugs are pretty good. I have had several not work out of the box but Home Depot ia re...
These GFCI plugs are pretty good. I have had several not work out of the box but Home Depot ia really good about exchanging them. The ones that work last and do a good job. They are getting more and more expensive as everything else in life does. I will be buying more of these.
by THOMAS
Easy to install and works great
Easy to install and works great
by Cuba
Good quality and easy to install.
Good quality and easy to install.
by Sam
Easy to install, simple to use, great price point!
Easy to install, simple to use, great price point!
by smgpro
Expensive but works great!
Expensive but works great!
by Tsizzle
Power light is really useful
Power light is really useful
by Esanjines
This product is super easy to install and looks nice when finished. Decora switches and covers ma...
This product is super easy to install and looks nice when finished. Decora switches and covers make the home look so much better
by Pauly
Showing 1-10 of 1,529 reviews
