Internet #302648676

Model #VB2-DZ15S-HD2

Decora Smart with Z-Wave Technology 15 Amp Switch, White/Light Almond (2-Pack)

  • Compatible with the Wink Hub (not included)
  • Can control LED, CFL, halogen and incandescent bulbs
  • Built-in surge protection is included
  • See More Details

Frequently Bought Together

+
+
Price:
$8994

Product Overview

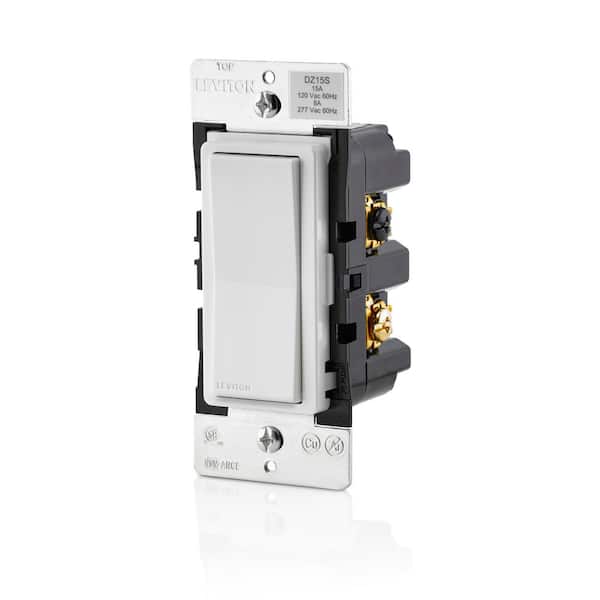

Leviton Decora Smart Z-Wave Light Switch

Leviton Decora Smart Z-Wave Light Switch (DZ15S)

Connect to a compatible hub to schedule lights to turn on/off at specific times and control via app or voice.

Neutral Wire Required

Installation is Simple!

Easily replaces existing dimmers or switches - just be sure you have a neutral connection, it's required for installation.

Meet the Family

Meet the Family

In addition to dimmers, Leviton also offers smart switches and plugs.

Convenience of voice control

Convenience of voice control

Requires compatible Z-Wave Hub (such as Wink or SmartThings) to enable Google Assistant or Amazon Alexa Voice Control.

What Can I Control

What Can I Control?

Leviton Z-Wave switches are used to control outdoor lighting for safety and on/off of interior fixtures.

Choose Your Hub

Choose Your Hub

Compatible with Z-Wave enabled smart security systems and hubs including Wink and Samsung SmartThings

3-Way Capable

3-Way Capable

Multi location achieved using DD0SR-1Z (coordinating) or DD0SR-DLZ (matching with LED indicator) add-on units.

Bulb Ratings

Bulb Ratings

Rated for CFL / LED up to 600W and incandescent up to 1800W. Neutral required.

Z-Wave Plus Technology

Z-Wave Plus

Z-Wave Plus devices work with certified Z-Wave hubs and security systems.

VIP Support when you need it.

You're a VIP

Support when you need it via US-based call centers, email, live chat and more.

Industry leading five year limited warranty

Industry Leading Warranty

Your purchase is backed by a five-year limited warranty.

The Decora Difference

The Decora Difference

Coordinates with our family of Decora products for seamless style.

Engineered by Leviton

Engineered by Leviton

Devices are designed, manufactured and supported by Leviton.

Simplify control of home lighting with the wireless Leviton DZ15S. This Z-Wave enabled universal switch works with most residential lighting and motor applications. It supports LED, CFL, incandescent, halogen, fluorescent and motor loads up to 1/2 HP. The DZ15S is compatible with Samsung Smart Things, the Wink Hub and all certified Z-Wave controllers. These systems support remote light access and scheduling, and many support voice control of your Leviton. Rated for 600-Watt LED and CFL Dimmable bulbs, 1800-Watt incandescent bulbs and 8A 277VAC; requires neutral connection. Use only one (1) Decora DZ15S Switch in a multi-location circuit with up to 9 coordinating remote switches (DD0SR-10) or up to 4 matching remote switches (DD0SR-DL).
  • California residents
  • Compatible with Z-wave controllers including Samsung SmartThings and Wink hub
  • Z-wave plus certification enhances range and reliability and is compatible with Z-wave hubs
  • Facilitates single pole or 3-way multi-location applications
  • Transient surge suppression built-in
  • Compatible with Vizia RF + systems
  • Hot, neutral, load and ground required for installation and traveler for multi-switch applications optional
  • Shop all of Leviton’s Smart Products here

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
1.4 in
Product Height (in.)
4.13 in
Product Width (in.)
1.75 in

Details

Amperage (amps)
15
Electrical Features
Programmable,Remote Control
Electrical Product Type
Switch
Function Type
On-Off
Hub Required
Samsung SmartThings Hub,Wink Hub
Indoor/Outdoor
Indoor
Mounting Type
In-Wall
Number of Switches
Single
Package Quantity
2
Power Options
Hardwired
Rating
General Purpose
Remote Access
Remote Access
Requires Hub?
Requires Smart Hub
Returnable
180-Day
Smart Home
Smart Home Enabled
Smart Home Protocol
Z-Wave
Specialty Switch Type
Light Sensing
Switch Style
Specialty
Switch Type
Maintained
Voice Control Hub Required
Alexa via Samsung SmartThings Hub, Wink Hub
Voltage
120 volt
Wired or Wireless
Wired
Works With
Alexa, Samsung SmartThings

Warranty / Certifications

Certifications and Listings
CSA Certified,UL Listed
Manufacturer Warranty
5-Year Limited

Questions & Answers

21Questions48Answers

The switch keeps dropping offline. If I reset by switching off/on the breaker it reconnects fine, for a while. Help!

Asked by arlee August 2, 2017
6
Answers

A couple of responders here have said that the switch is too far from the Wink hub or something similar. This is not true. I have 12 switches in my home, 3 of which are this Leviton switch, 3 others are an earlier switch and 6 are GE. I have no problem with the other 9 switches, some of which are further from the hub. I have moved the hub around trying to determine if that affects connectivity, but to no avail. There are only 2 solutions with this switch: 1) reset the breaker, 2) reset the switch. Both of these work 100% of the time but only temporarily. Between 2 days and 2 weeks the switch will go offline again. These are a nightmare and Leviton owes everyone who bought one with a Wink system a refund.

Is there an audible "click" when activated via wireless hub?

Asked by user January 21, 2019
5
Answers

No

Can the light be turned on and off normally by the switch, without having to use the Wink app?

Asked by Mark December 1, 2017
5
Answers

Yes, it works just like a "dumb" switch.

Is that the Decora SmartSwitch has timer futures?

Asked by Tony April 2, 2018
5
Answers

This is a "smart switch" which means it can be configured to turn on and off based on the users preference. But it does require a connection to a "hub" to work. I use the "smartthings" hub.

Why is this touted as working with Wink when multiple online forums indicate that it's connectivi...

Asked by Doug February 4, 2019
5
Answers

Hi Thank you for choosing. Sorry to hear your having trouble, for further assistance please call the tech line at 1-800-824-3005.

I bought this switch to replace one of my current 3-way switch, but I can't make them work since ...

Asked by Ben February 25, 2017
5
Answers

As you already discover it will not work with regular switch you will have to purchase corresponding remote switch in order to work 3-way or multi-location and model # is DD0SR-DLZ it say right on the bottom of box check the photo must have available white wire (neutral)

Can three switches fit inside a standard three switch wall box?

Asked by Troyster December 23, 2017
5
Answers

Yes, in the standard (deep) wall box. It will be tight to get all the wiring crammed in behind the switches.

does it work with Amazon Alexa

Asked by Julian February 16, 2017
5
Answers

Depends upon which controller you are using. It should work if Alexa is compatible with your controller.

This switch has problems getting the light status disconnected on Wink Hub and Wink Hub 2. I will...

Asked by Hunmin February 11, 2018
4
Answers

I do not have a solution, but I can tell you that I have the exact same problem with this switch. I have 3 of them that do exactly what you describe. I have since swapped them out for GE brand switches. I now have 8 switches and 5 light bulbs connected to Wink and they work fine. Leviton has been garbage for me...

Is this Z-Waze Plus or Z-Wave?

Asked by Rob November 29, 2017
3
Answers

Yes it is zwave.

Decora Smart with Z-Wave Technology 15 Amp Switch, White/Light Almond (2-Pack) - page 2

Customer Reviews

  • 118 Customer Reviews
  • 4.1 out of 5 stars overall
80% of customers recommended.
Overall Ratings
5star-icon(74)
4star-icon(15)
3star-icon(6)
2star-icon(8)
1star-icon(15)
Sort By:
Works very well. I use it as a timer switch for a whole house fan. Been working for two years now.
Quality :
5
Value :
4
Works very well. I use it as a timer switch for a whole house fan. Been working for two years now.
Was this helpful?
2
0
I bought this for a 3 way switch application and to be used with the Wink Hub for home automation...
I bought this for a 3 way switch application and to be used with the Wink Hub for home automation. Be sure to follow the wiring diagram carefully. Wiring is slightly different than with 2 tradition switches in a 3 way application. The screws do allow for secure attachment of the wires. Note that this is a pure switch and does not provide for any dimming.
Was this helpful?
1
0
Have a Wink 2 hub. Installed switchest without any problems. Unlike the GE version of the smart...
Have a Wink 2 hub. Installed switchest without any problems. Unlike the GE version of the smart switch which doesn't seem to work at all in my setup.
Was this helpful?
0
0
works great with my Vivint system
Bought these on special 5 pack. Easy to connect and pair with my Vivint security system. The hard part of this install was squeezing them into the existing electrical box. I had to remove the old box and install a “ old work “ electrical deep box and rewire everything again. But it was worth the extra little bit of work
Was this helpful?
0
0
Wanted a paddle type of switch to replace an old switch to the basement and this worked just grea...
Wanted a paddle type of switch to replace an old switch to the basement and this worked just great. Easy to install and looks great, but now I need to wash the wall!
Was this helpful?
0
0
The instruction is a little confusing, but watching the YouTube...
The instruction is a little confusing, but watching the YouTube video helped a lot.
Was this helpful?
1
0
Plus is better
Quality :
5
Value :
4
Seeds Program Review
(What's this)
Decora Smart switch, z-wave Plus technology R51-DZ15S-1RZ. First this is a new model of the DZ15S . With the addition of Z-Wave Plus. It is backwards compatible with regular Z-Wave technology but will not work with Leviton's new WIFI switches or its new app. It will work with older home hubs but you won't be able to utilize all the enhancements of the Plus! With the Z-Wave plus energy management, range and Mesh quality is improved . Transmission time to hub node are faster along with a smaller physical devise with lower energy draw are additional enhancements. Lastly it's capabilities allow for over air firmware updates. Something to consider is that your hub control Older Smarthings and Wink hubs along with others manufactures that don't have Z-wave plus protocol will work but most of the enhancements will not. The Wink 2 and newer rev Smarthings do have the Zwave Plus capabilities. For most the Mesh quality will be an important addition allowing more routes to a wider selection of other Nodes. In short it helps get signals get to places that might otherwise be weak signal areas by going from one to the other instead of from your hub to specific switch or plug. Set up is straight forward and pairs well with old and new Wink and Samsung hubs. Is seems faster reaction time with the newer versions hubs then old. The back is large so having shallow electrical boxes can be a challenge. Three way capabilities but you need a dedicated matching remote . Hence it gets expensive. You need to utilize a neutral White wire to connect the switch . This allows constant power into the switch . Some other manufactures get around this internally . Older homes or boxes with single switch this can become an issue . In my 20 year old house it's not been an issue as all my boxes have several neutral wire options. You will find the switch has changed from a click on the switch bottom only to activate to a rocker style which can be clicked top and bottom . Changeable covers with almond included, but no switch cover. Another change is the small green light indicator is gone making the switch have a better visual appeal. Of course using even less ghost electricity . A home hub is needed such as Wink or Samsung or others for automation .The switch is also comparable with Alexa voice controls. There is no mention to some of the other voice controllers (Google Home , Apple Home Etc) but I've seen chat regarding Siri! Another advantage is the ability to control better low wattage led bulbs , many switches have an issue at the lower power spectrum causing flickering or not being able to completely turn off the LED light leaving it at a faint glow. In my testing this isn't an issue with a one string led strip, or single bulb , smart or just a plain dumb LED bulb. The DZP15S is designed for single pole and three way switching . 600W LED CFL 1800W resistive, 1800w Incandescent/Halogen, 1800VA fluorescent and inductive. 1/2 HP 9.8A motor 120vac 60 Hz. For a three way switch you need to pair the above switch with a DDOSR-DLZ Switch remote.
Was this helpful?
1
0
Decora Leviton Z-Wave Switch
Quality :
5
Value :
4
Seeds Program Review
(What's this)
Personally I like better the old design They seem like a quality product, they don't have that cheap feel. They come with two different color face plates, which is grate. I have white for all of my receptacles, switches, etc and it makes it easy to match to rest of them. The two colors gives great flexibility. As for connection it connected effortlessly with my wink hub 1st gen, haven't had any connection issues. The design is great. I really like how the bottom and top is curved out. These do not stay in off or on position when you press them; it clicks on and goes back to ready position and same for off without movement like a regular rocker switch. I like this design and think it looks better than the standard flat look on other z-wave switches. The only thing I wish this had is the instant update feature. I have to set the wink hub to poll the switches ever x seconds to get status updates when they are switched on/off manually. This how most switches operate, but the instant update feature would be nice. OVERALL I REALLY LIKE THESE SO FAR. DO NOT FORGET YOU WILL NEED A NEUTRAL WIRE.
Was this helpful?
4
0
A Beautiful Switch But Wiring Space May Be Tight
Quality :
5
Value :
4
Seeds Program Review
(What's this)
You would buy this switch only if you're "automating" your home lighting using a hub such as the Winkhub2. It's a beautifully designed product with a satisfying switch action feel and sound. The internal relay "click" is also "just right", and the green LED locator light brightness is also just the right intensity to not be distracting in the dark. Even the terminal screws are shiny and brightly colored. The terminals can accept either a looped or straight wire end, which makes wiring to match the old switch easy to accomplish. I have this product installed in a metal box which likely reduces Z-wave signal strength, but I have not encountered any performance problems at all. It just works. I gave this product only 4 stars though because it's likely many users may become frustrated when wiring the switch because its size limits the wiring space available in the box behind the switch. To be fair, Leviton's included instruction sheet recommends it be installed in a wall box having a minimum depth of 2 3/4 inches, but many of the metallic boxes in my house are only 2 1/2 inches deep (see photo showing space behind the switch in a 2 1/2" deep box). The switch extends 1 3/8 inches into the box. There is barely room enough to tuck wire-nuts and excess wiring in the space behind the switch, especially in a single gang box. Using a "deep" box (3 1/2 inch depth) makes wiring a lot easier. Installing in a 2 or 3 gang box can also make the job easier if you have space to one or two sides of the Z-wave switch. 12 AWG wire in the box also makes for tougher wiring since the wires are larger and stiffer than 14 AWG. The switch also requires a neutral connection (normally white colored wire). Bottom line - I recommend checking out the location(s) where you intend to install the switch(s) before making your purchase - if you have the space you will be happy with this product.
Was this helpful?
3
0
A game changer
Quality :
5
Value :
3
Seeds Program Review
(What's this)
This product is a real game changer. Coupled with a hub and some software it changes the way you wire your house. More importantly, it changes the way you live in your house. I have been using Leviton and GE Z-Wave smart switches with the Wink Hub 2 and Wink Relays to do some exciting things. We are remodeling our home and the term “remodeling” is used in the literally sense. Doors, windows, walls are being moved or replaced and all the infrastructure is being redesigned. We are free to do most anything, and among other things, we have chosen to make our 55-year-old house a “smart home”. Even under these circumstances there are still practical limitations. Lights and appliances still require copper wiring for power but controlling that wiring has become much more wireless. This product is the primary means for making that possible. It uses Z-Wave wireless protocol and is the fundamental component for my smart house automation plan. The plan for this switch is to replace an old mechanical one I use to turn on and off a set of flood lights that high-light the front of the house. This Leviton switch is a direct replacement for the old one but with a few minor additional requirements. A common lead must be supplied and the line and load leads cannot be reversed. Also, it requires more space in the box so it can be a tight squeeze. For new installations, a deep box is a good idea. The switch can support multiple switching locations but with Z-Wave networking capabilities you may be able to avoid them. In the accompanying picture of the four-gang panel it is the third switch from the right. The right most switch is a Leviton motion sensor switch controling the overhead light. The second from the right is a GE Z-Wave that controls some other outside lights. Finally, the switch on the left is a mechanical switch controlling another set of outside lights. The next paragraph describes the remainder of the attached pictures. They are a series of screens shots of the Wink software that briefly show how the switch is integrated into the Wink network and scheduled to automatically turn on at “Sun Rise” and turn off at 4:00 AM. The switch on its own has little value unless it is connected to some type of controler. There are several different approaches. If you are not interested in the Wink software skip the next paragraph. All Z-Wave switches in my network are attached to the Wink hub and are a part of the Wink network. The process of connecting is directed by the Wink software in a multi screen process that varies dependent up device type, manufacture and model. After connecting the new switch to the network, the following set of photos illustrate the Wink setup procedure: Photo 2 - assign a unique and meaningful identity to the switch – “Flood Front Face”. Photo 3 – schedule the switch to turn on at Sun Rise Photo 4 – schedule the switch to turn off at 4:00 AM Photo 5 – confirm the scheduling by displaying the schedules on the schedule page Photo 6 – verify the next day that it turned on by displaying the Activity Log Scheduling is the simplest of all activities. Very complicated programs can be developed as your network grows and you gain experience with it. I use both Leviton and GE Z-Wave switches. They both are great products. However, I am somewhat partial to GE switches because they are approximately eight dollars cheaper for single switch circuits, thirty-three dollars cheaper for doubles and sixty dollars for triple switch circuits. I have not found any differences in the performance or quality that would justify the price difference. You lose the LED locator light on the load end of multiple GE switch circuits. So, unless you know which end of the circuit you are looking at there is no way of knowing if the switch is on or off. Which is no different than conventional switches. I also find the GE switches consistently easier to connect to the software. But there are a lot of variables that could play on that issue. I have always used Leviton products and have a great deal of brand loyalty. I only found GE bargain hunting. Having confidence in a brand is important if you’re going to invest in a network you need confidence it the providers and it always helps to have alternatives. The network provides many little convinces that yI am grow to depend upon. So it becomes more that a financial commitment. At this point I cannot comment on the long-term durability of any of the network components. I have only about a year’s experience with Wink and Leviton and slightly less that that with GE. But up to this point they all have been completely stable. I am comfortable that the technology is mature enough that I am willing to buy more of these switches.
Was this helpful?
2
0
