SPEX Lighting - 4-in. Selectable CCT5 New Construction, Canless Integrated LED Black Trim Regressed Gimbal Fixture

Apply Now
Pay $49.98 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
0 in stock
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

The 4 in. SPEX Lighting GIMBAL features a 12-Watt downlight with Selectable Color Temperature (27K, 30K, 35K, 40K, 50K) 360° rotation and 30° of tilt. It offers a sleek design with regressed optics for a quieter ceiling with less glare. No housing required, suitable for retrofit applications and wet locations. Quick connect push-in terminals for fast and easy wiring.
  • 4-inch delivers 850 lumens (12W/120V), 90 CRI, 100% - 10% dimming capabilities with industry standard TRIAC / ELV dimmers
  • 38° beam angle with quiet optics. 360° rotation, 30° tilt, 5 position CCT selectable switch
  • Wet location rated, indoor/outdoor, air-tight, IC rated, cETLus, ENERGY STAR, JA8 title 24, quick connect push-in terminals
  • Durable airtight aluminum body, anodized blue heat sink to maximum airflow to help keep the light cool, 2 spring loaded clips to attach to any ceiling material

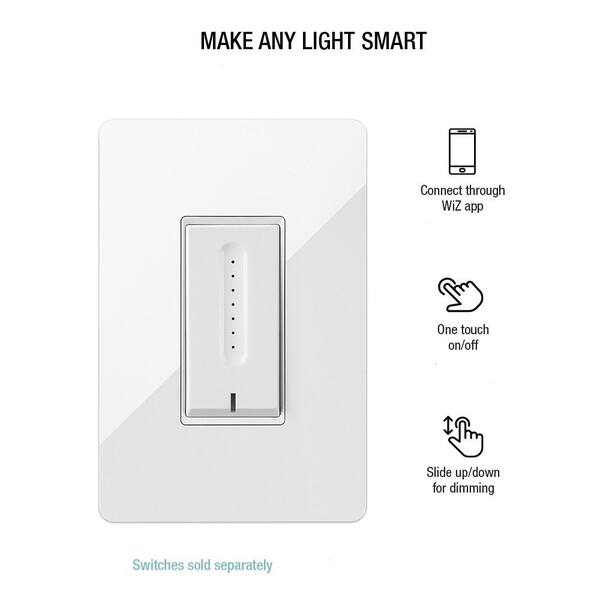

  • Make any dimmable fixture smart connect your SPEX lighting fixture to the SPEX WiZ smart dimmer - sold separately (320560431) it connects to your home Wi-Fi through the WiZ app - no hub required
  • Available accessories: one 4 in. pre-mounting plate (320560441) 2 reduction ring to fit a 5 in. or 6 in. cut-hole (in WHT, BLK and BN) 3 vapor barrier extender for remodel, prevents air leakage from entering attic (320560469) all sold separately
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents


Dimensions: H 2.25 in, W 5.063 in, D 5.063 in


Actual Aperture Width (in.)4 inHousing Height (in.)2.25 in
Maximum Cutout Size (in.)4.25 inNominal Lens Aperture Size4 in.
Product Depth (in.)5.063 inProduct Height (in.)2.25 in
Product Width (in.)5.063 inTrim Size (Width)4 in.


Actual Color Temperature (K)2700, 3000, 3500, 4000, 5000Color FamilyBlack
Color Rendering Index (CRI)90Color TemperatureWarm White, Soft White, Neutral White, Bright White, Daylight
Commercial/ResidentialCommercial, ResidentialCompatible Bulb TypeIntegrated LED
Damp/Wet RatingDamp Rated, Dry Rated, Wet RatedFeaturesAdjustable, Air Tight, Color Changing, Dimmable, Directional, Low Glare, Retrofit, Sloped Ceiling
Fixture Color/FinishBlackFixture MaterialAluminum
IC RatingIC RatedIncludedGasket(s), Low Glare, Remodel Clips, Stencil, Wiring Connectors
Indoor/OutdoorIndoor, OutdoorIntegrated LED TypeSelectable
Kit TypeIntegrated LEDMaximum Bulb Wattage (W)12 W
New Construction or RemodelNew Construction, RemodelPackage Quantity1
Product Weight (lb.)1.31 lbRecessed Lighting TypeCanless
Reflector Finish FamilySilverReturnable90-Day
Trim TypeGimbalVoltageLine Voltage
Watt Equivalence60

Warranty / Certifications

Certifications and ListingsEnergy Star, IC Rated, Title 24, cETLusManufacturer WarrantyLIFETIME WARRANTY
