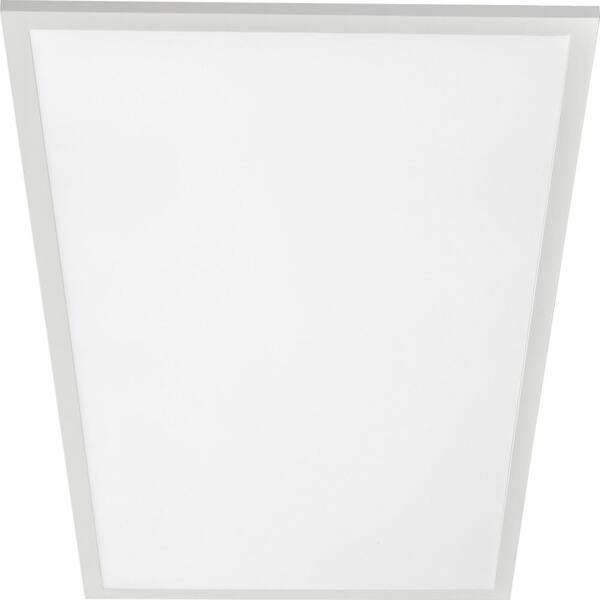

Contractor Select CPANL 2 ft. x 4 ft. White Integrated LED Selectable Lumen Flat Panel Light, Bright White 3500K

(13)Questions & Answers (13)
  • 52-Watt, 3500K, bright white light produces up to 6000 Lumens
  • Adjustable lumen output allows for high, medium, low control
  • Rated for 60,000 hours, DLC qualified and 5-year limited warranty
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

The Lithonia Lighting CPANL is an edge-lit LED flat panel that provides a glare-free luminous appearance. The 2 ft. x 4 ft. CPANL provides superior ambient lighting perfect for commercial applications such as retail spaces, offices, hospitality and education. Its low-profile design provides increased installation flexibility especially in restricted plenum spaces and the switchable lumen feature allows you to toggle between 3 preset lumen outputs for an optimal lighting experience.
  • Easy and safe installation, low-profile design is perfect for restricted plenum spaces, ideal for new construction or renovation
  • Dimmable, high-efficiency LEDs provide general illumination with a bright white 3,500K color temperature, switchable lumen feature allows you to toggle between 4,000 Lumens, 5,000 Lumens and 6,000 Lumens conveniently on the jobsite to choose light output and wattage usage
  • 0-Volt to 10-Volt dimming driver, dims to 10% to control light levels and save energy, see specification sheet for dimmer compatibilities
  • CSA certified
  • Mounting hardware included for installation into grid ceilings
  • Save on maintenance time and expense with the luminaire's extended service life, 70% LED lumen maintenance at 60,000-hours
  • Seamless, aluminum frame is durable and prevents light leak in the corners, the satin white lens provides excellent shielding and fully luminous appearance for a contemporary design aesthetic
  • Return Policy

Additional Resources

From the Manufacturer

caret

Specifications

Dimensions

Product Height (in)1.26Product Length (in)47.81
Product Width (in)24.0

Details

Actual Color Temperature (K)3500Color Rendering Index (CRI)80
Color TemperatureBright WhiteCompatible Bulb TypeIntegrated LED
Connection TypeHardwiredDimmable CapabilityDimmable
Fixture Color FamilyWhiteFixture Color/FinishWhite
Hardware IncludedYesLumens6000
Package Quantity1Product Length (ft)3.98 ft
Product Weight (lb.)17.05Product Width (ft)2 ft
Replaceable LED ModuleNoReturnable90-Day
Voltage (volts)120/277Watt Equivalence128

Warranty / Certifications

Certifications and ListingsCSA CertifiedManufacturer WarrantyFive-year limited
caret

Questions & Answers

13Questions
caret
Q:What dimmer switch is compatible? Can the switchable light output be controlled by the dimmer switch also?
by|Jan 10, 2021
1 Answer
Answer This Question

A:  CPANL is compatible with Sensor Switch WSX-D and SPOD wall switches.

by|Jan 12, 2021
    caret
    Q:A couple reviewers mentioned that there is no ceiling mounting included. What is the part number ...
    by|Aug 10, 2020
    1 Answer
    Answer This Question

    A:  Please review attached spec sheet for SMKSH Surface Mount Kits https://img.acuitybrands.com/public-assets/catalog/920944/smksh.pdf?abl_version=08%2f06%2f2020+20:50:54&DOC_Type=SPEC_SHEET

    by|Aug 10, 2020
      caret
      Q:How do I surface mount this light?
      by|Jul 21, 2020
      1 Answer
      Answer This Question

      A:  You have to purchase part# 2X4SMKSHP PAF - Surface Mount Troffer Kit Post Paint 2'x4' https://img.acuitybrands.com/public-assets/catalog/831393/contractor-select-cpanl.pdf?abl_version=06%2f25%2f2020+18:53:40&DOC_Type=SPEC_SHEET

      by|Nov 14, 2021
        3 found this answer helpful
        caret
        Q:what switch do I need to control 12 of these lights (dimming)
        by|Jun 18, 2020
        1 Answer
        Answer This Question

        A:  CPANL compatible with Sensor Switch- WSX-D and SPOD wall switches. https://img.acuitybrands.com/public-assets/catalog/368487/wsx-d.pdf?abl_version=06%2f09%2f2020+06:37:02&DOC_Type=SPEC_SHEET https://img.acuitybrands.com/public-assets/catalog/470937/spodmrd.pdf?abl_version=12%2f17%2f2019+13:50:54&DOC_Type=SPEC_SHEET

        by|Jun 23, 2020
          Showing 1-4 of 13
          caret

          Customer Reviews

          4.8 out of 5
          (13)
          • 4.8
            out of 13 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-10 of 13 reviews
          Jun 11, 2021
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Apr 1, 2021
          Very bright. Using it at maximum lumens. Using the Acuity brand SPODMRD on/off and dimmer. Very...
          Very bright. Using it at maximum lumens. Using the Acuity brand SPODMRD on/off and dimmer. Very slim, mounted directly to ceiling without a frame. I will be getting more of them in different sizes.
          by
          • Verified Purchase
          • Recommended
          1 found this review helpful
          Mar 1, 2021
          Great Light but no frame to attach to ceiling
          Here is the Good and the Bad and the Ugly, It's a great light very durable very bright you can not go wrong with this light, This is the GOOD. I wanted to attach this to the den ceiling so looking at the specs it shows that back is flat and I would need some kind of a box since I did not want to cut out a hole in my ceiling. The size is 24" x 48" by the way this size is exact !! I purchased a frame SKU 1005873178 eSenLite thinking I just solved the problem since it says the size is 24" x 48" as well, WRONG ! that is the out side dimensions !! The inside usable dimension is 23.5" wide, so imagine the struggle; This was the BAD !! so finely I took the whole thing down and added a small piece of metal strap adding couple of screws to extend the width by 1/2", it worked but it does not look great. This was the UGLY !! The light that matched the frame eSenLite is not as bright and that's why I went with the Lithonia Lighting SKU 1005722822. I wish Lithonia made a frame that matched their light. Bottom line you can;t attach this light to the flush ceiling with out some type of a frame. It is a great light and I do recommend it but man it was a struggle to hang it .
          by
          Response from Director-SalesMar 3, 2021
          We are sorry to hear of this disappointing experience with installing this panel fixture. There is a surface mount kit (2X4SMKSH) that can be purchased to allow you to properly mount this fixture. This link will take you to the specification sheet for this fixture and you can find all of the accessories kits available here. https://images.homedepot-static.com/catalog/pdfImages/92/92e6194c-243d-4d1b-82ae-383519b07010.pdf AcuityBrandsLighting
            • Recommended
            Oct 21, 2020
            I bought 2 lights, installed both, then one quit working...
            I bought 2 lights, installed both, then one quit working in 2 on/off cycles, found circuit board was the problem. I was able to return one and get a replacement. very good quality other than that, I like the ability to change the lumens from high, to medium or low with a flick of a switch. I will buy them again for my office ceiling flourescent light replacements
            by
            • Verified Purchase
            Oct 7, 2020
            Work great. Easy to install.
            Work great. Easy to install.
            by
            • Verified Purchase
            • Recommended
            Aug 4, 2020
            He was very knowledgeable, and extremely friendly and always wore...
            He was very knowledgeable, and extremely friendly and always wore his face mask. He did an outstanding job, and we scheduled him for another job next month.
            by
            • Verified Purchase
            Jul 31, 2020
            Rating provided by a verified purchaser...
            Rating provided by a verified purchaser
            by
            Jul 22, 2020
            Solid construction and lots of light. Absolute glare free light....
            Solid construction and lots of light. Absolute glare free light. Only downside - made in China.
            by
            5 found this review helpful
            Jul 14, 2020
            A little disappointing that there is no mounting bracket. This...
            A little disappointing that there is no mounting bracket. This would be a great product
            by
            2 found this review helpful
            Jul 1, 2020
            Excellent LED fixture: nice looking, great illuminating fixture. NOTE: why...
            Excellent LED fixture: nice looking, great illuminating fixture. NOTE: why doesn't Home Depot carry the ceiling mount? Caution: when actually installing the correct mount it is easy once you figure out (not included in instructions) that you mount the light side to side not end to end!
            by
            • Verified Purchase
            3 found this review helpful
