Internet #309086497

Model # Z020505L

0769001391653

72 in. x 80 in. Primed Fiberglass Prehung Left Hand Inswing Low-E Clear Glass Full Lite Hinged Patio Door with Screen

  • 4-9/16 in. wide frame for 2x4 in. wall construction
  • Includes white aluminum sliding screen
  • Low-E glass reduces UV rays and the fading of carpets and fabrics
$ 1,532 00
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • 4-9/16 in. wide frame for 2x4 in. wall construction
  • Includes white aluminum sliding screen
  • Low-E glass reduces UV rays and the fading of carpets and fabrics
MMI Door Fiberglass Patio Doors are built to last and can add substantial curb appeal to your home. This fiberglass smooth patio door unit comes with a Limited Lifetime Warranty on both the door component and the prehung MSystem as well as a 10-year glass lite warranty. All of our fiberglass smooth patio doors are virtually maintenance free and will not warp, rot, dent or split. Our prehung door unit (called the MSystem) seals out the weather and practically eliminates air and water infiltration all together. Common door size is 72 in. x 80 in. Overall unit dimension is 75 in. x 81.75 in. The suggested rough opening is 75.5 in. x 82.25 in. This unit comes on a 4-9/16 in. wide primed composite frame. Sliding screen is included.
  • Fiberglass reinforced skin with insulated polyurethane core
  • Common door size: 72 in. x 80 in.

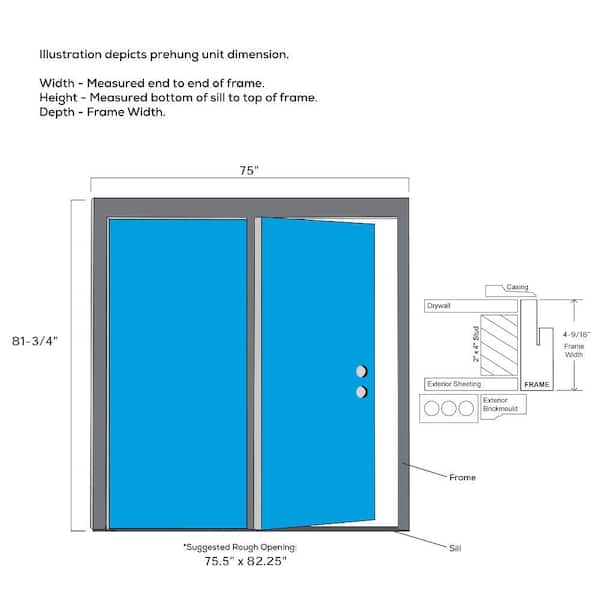

  • Overall unit dimension: 75 in. x 81.75 in.
  • Suggested rough opening: 75.5 in. x 82.25 in.
  • Patio unit has 1-active door and 1-inactive door
  • Prehung on a 4-9/16 in. primed composite frame with matching brickmould attached
  • Prehung unit comes with 3 satin nickle hinges, fully weatherstripped with one continuous sill running the entire width of the unit
  • Glass description: classic clear glass is double paned, tempered and insulated, privacy rating is 0 out of 10
  • Patio door unit comes primed, ready to paint
  • Center-hinged left-hand inswing
  • When viewed from the exterior of the home, the door on the right side is active, hinges are on the left and the door swings into the home
  • Active door and frame are prepped for both entry knob and deadbolt 2-1/8 in. bore diameter with 2-3/4 in. backset (locks sold separately)
  • Patio unit is center hinged with 1-active door
  • White sliding screen is included and can be attached to the sill
  • Will meet or exceed federal guidelines for energy efficiency (where and if applicable)

Product Overview

  • 4-9/16 in. wide frame for 2x4 in. wall construction
  • Includes white aluminum sliding screen
  • Low-E glass reduces UV rays and the fading of carpets and fabrics
Model #: Z020505L
Internet #: 309086497

MMI Door Fiberglass Patio Doors are built to last and can add substantial curb appeal to your home. This fiberglass smooth patio door unit comes with a Limited Lifetime Warranty on both the door component and the prehung MSystem as well as a 10-year glass lite warranty. All of our fiberglass smooth patio doors are virtually maintenance free and will not warp, rot, dent or split. Our prehung door unit (called the MSystem) seals out the weather and practically eliminates air and water infiltration all together. Common door size is 72 in. x 80 in. Overall unit dimension is 75 in. x 81.75 in. The suggested rough opening is 75.5 in. x 82.25 in. This unit comes on a 4-9/16 in. wide primed composite frame. Sliding screen is included.

  • Fiberglass reinforced skin with insulated polyurethane core
  • Common door size: 72 in. x 80 in.
  • Overall unit dimension: 75 in. x 81.75 in.
  • Suggested rough opening: 75.5 in. x 82.25 in.
  • Patio unit has 1-active door and 1-inactive door
  • Prehung on a 4-9/16 in. primed composite frame with matching brickmould attached
  • Prehung unit comes with 3 satin nickle hinges, fully weatherstripped with one continuous sill running the entire width of the unit
  • Glass description: classic clear glass is double paned, tempered and insulated, privacy rating is 0 out of 10
  • Patio door unit comes primed, ready to paint
  • Center-hinged left-hand inswing
  • When viewed from the exterior of the home, the door on the right side is active, hinges are on the left and the door swings into the home
  • Active door and frame are prepped for both entry knob and deadbolt 2-1/8 in. bore diameter with 2-3/4 in. backset (locks sold separately)
  • Patio unit is center hinged with 1-active door
  • White sliding screen is included and can be attached to the sill
  • Will meet or exceed federal guidelines for energy efficiency (where and if applicable)

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • 4-9/16 in. wide frame for 2x4 in. wall construction
  • Includes white aluminum sliding screen
  • Low-E glass reduces UV rays and the fading of carpets and fabrics
MMI Door Fiberglass Patio Doors are built to last and can add substantial curb appeal to your home. This fiberglass smooth patio door unit comes with a Limited Lifetime Warranty on both the door component and the prehung MSystem as well as a 10-year glass lite warranty. All of our fiberglass smooth patio doors are virtually maintenance free and will not warp, rot, dent or split. Our prehung door unit (called the MSystem) seals out the weather and practically eliminates air and water infiltration all together. Common door size is 72 in. x 80 in. Overall unit dimension is 75 in. x 81.75 in. The suggested rough opening is 75.5 in. x 82.25 in. This unit comes on a 4-9/16 in. wide primed composite frame. Sliding screen is included.
  • Fiberglass reinforced skin with insulated polyurethane core
  • Common door size: 72 in. x 80 in.
  • Overall unit dimension: 75 in. x 81.75 in.
  • Suggested rough opening: 75.5 in. x 82.25 in.
  • Patio unit has 1-active door and 1-inactive door
  • Prehung on a 4-9/16 in. primed composite frame with matching brickmould attached
  • Prehung unit comes with 3 satin nickle hinges, fully weatherstripped with one continuous sill running the entire width of the unit
  • Glass description: classic clear glass is double paned, tempered and insulated, privacy rating is 0 out of 10
  • Patio door unit comes primed, ready to paint
  • Center-hinged left-hand inswing
  • When viewed from the exterior of the home, the door on the right side is active, hinges are on the left and the door swings into the home
  • Active door and frame are prepped for both entry knob and deadbolt 2-1/8 in. bore diameter with 2-3/4 in. backset (locks sold separately)
  • Patio unit is center hinged with 1-active door
  • White sliding screen is included and can be attached to the sill
  • Will meet or exceed federal guidelines for energy efficiency (where and if applicable)

Product Overview

  • 4-9/16 in. wide frame for 2x4 in. wall construction
  • Includes white aluminum sliding screen
  • Low-E glass reduces UV rays and the fading of carpets and fabrics
Model #: Z020505L
Internet #: 309086497

MMI Door Fiberglass Patio Doors are built to last and can add substantial curb appeal to your home. This fiberglass smooth patio door unit comes with a Limited Lifetime Warranty on both the door component and the prehung MSystem as well as a 10-year glass lite warranty. All of our fiberglass smooth patio doors are virtually maintenance free and will not warp, rot, dent or split. Our prehung door unit (called the MSystem) seals out the weather and practically eliminates air and water infiltration all together. Common door size is 72 in. x 80 in. Overall unit dimension is 75 in. x 81.75 in. The suggested rough opening is 75.5 in. x 82.25 in. This unit comes on a 4-9/16 in. wide primed composite frame. Sliding screen is included.

  • Fiberglass reinforced skin with insulated polyurethane core
  • Common door size: 72 in. x 80 in.
  • Overall unit dimension: 75 in. x 81.75 in.
  • Suggested rough opening: 75.5 in. x 82.25 in.
  • Patio unit has 1-active door and 1-inactive door
  • Prehung on a 4-9/16 in. primed composite frame with matching brickmould attached
  • Prehung unit comes with 3 satin nickle hinges, fully weatherstripped with one continuous sill running the entire width of the unit
  • Glass description: classic clear glass is double paned, tempered and insulated, privacy rating is 0 out of 10
  • Patio door unit comes primed, ready to paint
  • Center-hinged left-hand inswing
  • When viewed from the exterior of the home, the door on the right side is active, hinges are on the left and the door swings into the home
  • Active door and frame are prepped for both entry knob and deadbolt 2-1/8 in. bore diameter with 2-3/4 in. backset (locks sold separately)
  • Patio unit is center hinged with 1-active door
  • White sliding screen is included and can be attached to the sill
  • Will meet or exceed federal guidelines for energy efficiency (where and if applicable)

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand MMI Door MMI Door MMI Door MMI Door
Name 72 in. x 80 in. Primed Fiberglass Prehung Right Hand Inswing Clear Glass 15-Lite Hinged Patio Door with Sliding Screen 72 in. x 80 in. Primed Fiberglass Prehung Left Hand Inswing Low-E Clear Glass Full Lite Hinged Patio Door with Screen 72 in. x 80 in. Primed Fiberglass Prehung Left Hand Grilles Between Clear Glass 15-Lite Hinged Patio Door with Screen 72 in. x 80 in. Primed Fiberglass Prehung Left Hand Internal Blinds Clear Glass 15-Lite Hinged Patio Door with Screen
Price
$1,407.05
$1,532.00
$1,616.00
$2,366.00
Ratings (1) (1) (0) (0)
Door Configuration Double Door Double Door Double Door Double Door
Door Handing Right-Hand/Inswing Left-Hand/Inswing Left-Hand/Inswing Left-Hand/Inswing
Material Fiberglass Fiberglass Fiberglass Fiberglass
Door Type Center-Hinged Patio Center-Hinged Patio Center-Hinged Patio Center-Hinged Patio
Finish Type Primed Primed Primed Primed
View Product View Product View Product View Product

Specifications

Dimensions

Door Height (in.)
80
Door Thickness (in.)
1.75
Door Width (in.)
72
Rough Opening Height (In.)
82.25
Rough Opening Width (In.)
75.5

Details

Bore Type
Double Bore
Color Family
Off-White
Color/Finish
Primed
Core Type
Solid Core
Door Configuration
Double Door
Door Glass Insulation
Dual Pane,Low-E,Tempered
Door Handing
Left-Hand/Inswing
Door Type
Center-Hinged Patio
Features
Brickmold,Lockset Bore (Double Bore),Weatherstripping
Finish Type
Primed
Frame Material
Composite
Hinge Type
Surface mount
Included
Screen
Material
Fiberglass
Number of Lites
1 Lite
Product Weight (lb.)
177lb
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
MMI Door Fiberglass Smooth doors are built to last. Each door comes with a Limited Lifetime Warranty on both the door component and the prehung MSystem and a 10 year glass lite warranty. Failure to finish all six sides of the door component will void all warranties.

Specifications

Dimensions

Door Height (in.)
80
Door Thickness (in.)
1.75
Door Width (in.)
72
Rough Opening Height (In.)
82.25
Rough Opening Width (In.)
75.5

Details

Bore Type
Double Bore
Color Family
Off-White
Color/Finish
Primed
Core Type
Solid Core
Door Configuration
Double Door
Door Glass Insulation
Dual Pane,Low-E,Tempered
Door Handing
Left-Hand/Inswing
Door Type
Center-Hinged Patio
Features
Brickmold,Lockset Bore (Double Bore),Weatherstripping
Finish Type
Primed
Frame Material
Composite
Hinge Type
Surface mount
Included
Screen
Material
Fiberglass
Number of Lites
1 Lite
Product Weight (lb.)
177lb
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
MMI Door Fiberglass Smooth doors are built to last. Each door comes with a Limited Lifetime Warranty on both the door component and the prehung MSystem and a 10 year glass lite warranty. Failure to finish all six sides of the door component will void all warranties.

Questions & Answers

Need to know the "moving" door size as I will be adding a Storm Door on exterior. What door size ...

Need to know the "moving" door size as I will be adding a Storm Door on exterior. What door size do I need and what are exact dimensions of opening?
Asked by: SEBEx
This patio door is composed of two 36" door slabs. So the operating door slab is 36".
Answered by: MMI Door
Date published: 2019-10-08

How is the fly screen door installed if there is no flange on the sill to retain or anchor the ba...

How is the fly screen door installed if there is no flange on the sill to retain or anchor the base of the fly screen door. Is the provided picture of the sill incorrect, or is an additional fly screen slide rail provided for attachment to the sill?
Asked by: RussF
There is a track on the sill of this unit and a top track at the top of the door frame, that the screen slides on.
Answered by: MMI Door
Date published: 2019-04-15
