Model # HT5068R00201

Internet #206116184

0885196000726

MP Doors

60 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door

  • Lifetime warranty
  • Full composite frame system, will never rot
  • High-performance fiberglass flush glaze door for easy maintenance
$ 1,050 00
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Lifetime warranty
  • Full composite frame system, will never rot
  • High-performance fiberglass flush glaze door for easy maintenance
Make a smart addition to your home with the MasterPiece Series Hinged Fiberglass Patio Door by MP Doors. Engineered with Hydroshield Technology, the fiberglass door panels with complete composite edging and full composite frames are 100% waterproof and resist rotting, warping, splitting, delaminating, denting and rusting. Loaded with energy efficient features, this hinged door comes double bored and includes patented water-resistant draining system and weather-stripping insulation. Both the main active panel and the secondary passive panel are operable. Open both door panels to reveal a wide clear opening with no center post to hinder your view. The secondary passive panel comes with 2 flush bolt locks that secure into the top and bottom frame when closed. This low maintenance door is engineered to withstand a lifetime of use and offers peace of mind that your door will remain beautiful for years to come.
  • Lifetime warranty for peace of mind
  • Frame made of 100% composite waterproof material, will never rot
  • Full composite edged high-density fiberglass door panels withstand harsh weather conditions
  • Door size: 60 in. x 80 in. actual unit dimension: 58-3/4 in. x 79-1/4 in.

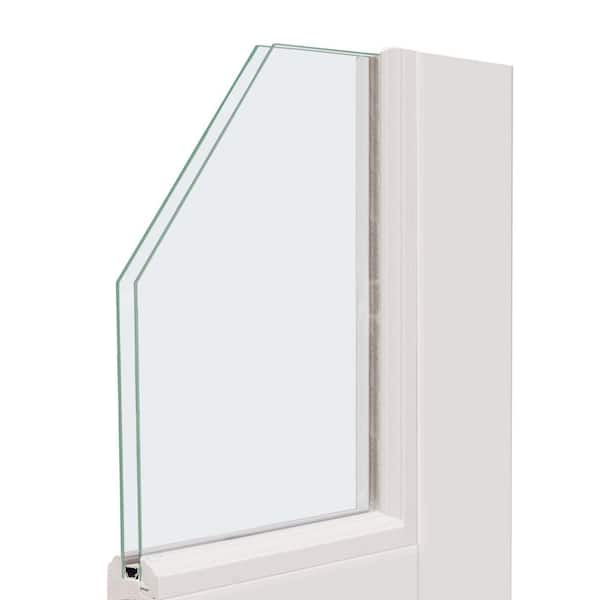

  • Flush glazed door for added architectural appeal and easy maintenance
  • Will not rust like metal doors, will not rot like wood doors and frames
  • Engineered with Hydroshield technology to repel water
  • Factory assembled door system for a precise fit and easy installation
  • Double bored to accommodate the handle set of your choice
  • Double astragal system produces a secure weather-tight seal without a center post between the doors
  • Operable secondary passive panel, includes 2 flush bolts to secure panel to top and bottom of frame when closed
  • Paintable smooth interior and exterior surface
  • ENERGY STAR qualified everywhere in the United States, helps keep your home cool in the summer and warm in the winter
  • Insulating CFC-free polyurethane foam core and included weather stripping for added energy efficiency
  • Patented water-resistant draining system
  • Sturdy doors measure 1-3/4 in. thickness
  • Right hand outswing patio door – from the exterior of the home, the panel on the right side is the primary panel and opens towards the outside of the home with the hinges on the right; the panel on the left is the secondary passive panel; both panels are operable, leaving a clear opening

Product Overview

  • Lifetime warranty
  • Full composite frame system, will never rot
  • High-performance fiberglass flush glaze door for easy maintenance
Model #: HT5068R00201
Internet #: 206116184

Make a smart addition to your home with the MasterPiece Series Hinged Fiberglass Patio Door by MP Doors. Engineered with Hydroshield Technology, the fiberglass door panels with complete composite edging and full composite frames are 100% waterproof and resist rotting, warping, splitting, delaminating, denting and rusting. Loaded with energy efficient features, this hinged door comes double bored and includes patented water-resistant draining system and weather-stripping insulation. Both the main active panel and the secondary passive panel are operable. Open both door panels to reveal a wide clear opening with no center post to hinder your view. The secondary passive panel comes with 2 flush bolt locks that secure into the top and bottom frame when closed. This low maintenance door is engineered to withstand a lifetime of use and offers peace of mind that your door will remain beautiful for years to come.

  • Lifetime warranty for peace of mind
  • Frame made of 100% composite waterproof material, will never rot
  • Full composite edged high-density fiberglass door panels withstand harsh weather conditions
  • Door size: 60 in. x 80 in. actual unit dimension: 58-3/4 in. x 79-1/4 in.
  • Flush glazed door for added architectural appeal and easy maintenance
  • Will not rust like metal doors, will not rot like wood doors and frames
  • Engineered with Hydroshield technology to repel water
  • Factory assembled door system for a precise fit and easy installation
  • Double bored to accommodate the handle set of your choice
  • Double astragal system produces a secure weather-tight seal without a center post between the doors
  • Operable secondary passive panel, includes 2 flush bolts to secure panel to top and bottom of frame when closed
  • Paintable smooth interior and exterior surface
  • ENERGY STAR qualified everywhere in the United States, helps keep your home cool in the summer and warm in the winter
  • Insulating CFC-free polyurethane foam core and included weather stripping for added energy efficiency
  • Patented water-resistant draining system
  • Sturdy doors measure 1-3/4 in. thickness
  • Right hand outswing patio door – from the exterior of the home, the panel on the right side is the primary panel and opens towards the outside of the home with the hinges on the right; the panel on the left is the secondary passive panel; both panels are operable, leaving a clear opening

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Door Height (in.)
80
Door Thickness (in.)
1.75 in
Door Width (in.)
60
Rough Opening Height (In.)
79.75 in
Rough Opening Width (In.)
59-1/2 in

Details

Bore Type
Double Bore
Color Family
White
Color/Finish
Smooth White Exterior and Interior
Core Type
Solid Core
Door Configuration
Double Door
Door Glass Insulation
Double-Glazed,Flush Glazed,Low-E,Tempered
Door Handing
Right-Hand/Outswing
Door Type
French Patio Door
Features
Argon Filled Glass,Lockset Bore (Double Bore),Weatherstripping
Finish Type
Finished
Frame Material
Composite
Hinge Type
Ball Bearing
Included
Instructions
Material
Fiberglass
Product Weight (lb.)
240 lb
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
Limited Lifetime

Specifications

Dimensions

Door Height (in.)
80
Door Thickness (in.)
1.75 in
Door Width (in.)
60
Rough Opening Height (In.)
79.75 in
Rough Opening Width (In.)
59-1/2 in

Details

Bore Type
Double Bore
Color Family
White
Color/Finish
Smooth White Exterior and Interior
Core Type
Solid Core
Door Configuration
Double Door
Door Glass Insulation
Double-Glazed,Flush Glazed,Low-E,Tempered
Door Handing
Right-Hand/Outswing
Door Type
French Patio Door
Features
Argon Filled Glass,Lockset Bore (Double Bore),Weatherstripping
Finish Type
Finished
Frame Material
Composite
Hinge Type
Ball Bearing
Included
Instructions
Material
Fiberglass
Product Weight (lb.)
240 lb
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
Limited Lifetime

Questions & Answers

Will both doors swing out? I do not want either door to be stationary.

Will both doors swing out? I do not want either door to be stationary.
Asked by: Genie
Hi Genie, Yes both panels are operable with no post in the middle for a clear opening. Thank you.
Answered by: MP Doors
Date published: 2019-05-21

Is there a way to look these doors from the inside, as well as the outside?

Is there a way to look these doors from the inside, as well as the outside?
Asked by: Snooky
You can install a double keyed lock set so it locks from outside or inside.
Answered by: Gh
Date published: 2019-03-21

Do these doors have dual panes windows

Asked by: Angela
Yes, this model has dual pane glass.
Answered by: CommunityAnswer
Date published: 2018-03-04

This includes the casing right?

Is this a complete door kit ready to install with all the casing included?
Asked by: Matt
Thank you for your interest. The doors comes assembled in a frames that has an overall depth of 4 9/16". It does not include any exterior casing or trim.
Answered by: MasterPiece
Date published: 2016-02-23
  • y_2019, m_5, d_25, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_28
  • loc_, sid_206116184, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 27ms
  • QUESTIONS, PRODUCT

Customer Reviews

60 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door is rated 3.3 out of 5 by 3.
Rated 1 out of 5 by from dimensions are way smaller than anticipated. That coupled with the... dimensions are way smaller than anticipated. That coupled with the threshold being very small makes for a quite small door. We ended up ordering a custom door and it was actually a better price.
Date published: 2019-05-07
Rated 5 out of 5 by from These doors are fantastic. They feel heavy duty and installed... These doors are fantastic. They feel heavy duty and installed easily. The only thing you'll want to be careful about is that the opening is a little smaller than 60x80 (it's about 1.5 inches smaller in width and height) but when you factor that it it's a great buy.
Date published: 2018-07-21
Rated 4 out of 5 by from Frame is somewhat fragile... Frame is somewhat fragile
Date published: 2018-03-27
