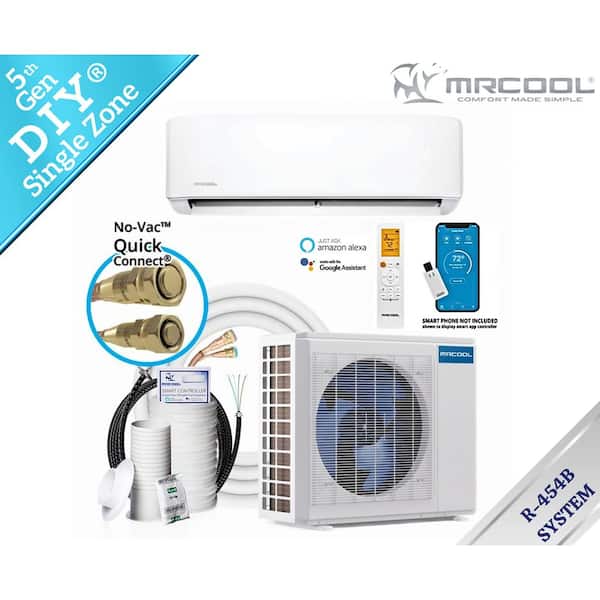

DIY 5th Gen 12000 BTU 23.5 SEER2 1-Ton Mini-Split Heat Pump Complete System-25 ft. Pre-Charged Line Set-115-Volt-R454B
- Easy DIY mini split installation with pre-charged new R454B lines
- High-efficiency ductless mini split system: 23.5 SEER2
- Multi zone heat pump provides cost effective heating and cooling
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
Upgrade your space with the 5th Generation MRCOOL DIY 12K BTU Ductless Heat Pump Mini-Split System, featuring both an air handler and condenser designed for effortless installation and efficient climate control. Ideal for spaces up to 550 sq. ft., this system requires no special tools or professional skills, making it a true DIY solution. The pre-charged 25 ft. Quick Connect line set, filled with R-454B refrigerant saves you time and installation costs. The included DIYPRO cable enhances durability by replacing traditional electrical conduit, offering protection against weather, wildlife, and damage from yardwork. Take full control of your comfort with a variety of options, including the wireless remote, the SmartHVAC app for Apple and Android devices, or hands-free voice commands via Amazon Alexa and Google Assistant. With a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty, you can trust the 5th Generation MRCOOL DIY Mini-Split for reliable, long-term performance. Enjoy easier installation, advanced technology, and year-round comfort with this efficient and durable heating and cooling solution.
Highlights
- Not compatible with R410A systems
- Future-proof your investment with the included DIY pro cable, eliminating the need for electrical conduit
- MRCOOL smart HVAC controller module and app fully support google assistant and amazon alexa out of the box
- In the event of a power outage, the system automatically resumes previous settings for seamless operation
- Gold fin condenser further improves longevity by providing superior corrosion resistance, perfect for coastal environments
- Follow me technology ensures personalized comfort by adjusting based on the remote's location
- Features a dry mode that helps reduce humidity and prevent excess condensation
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Additional Resources
Shop All MRCOOLSpecifications
Dimensions
Air handler depth (in.) | 7.44 |
|---|---|
Air handler height (in.) | 11.69 |
Air handler width (in.) | 31.57 |
Condenser depth (in.) | 11.93 |
Condenser height (in.) | 21.85 |
Condenser width (in.) | 30.12 |
Details
Air Handler BTU | 12000 BTU |
|---|---|
Air handler weight (lb.) | 24.91 |
Amperage (A) | 20 A |
BTU Cooling Rating | 12000 BTU |
BTU Heat Rating | 12000 BTU |
Condenser weight (lb.) | 29.7 |
Coverage Area (sq. ft.) | 500 |
Decibel (Sound) Rating | 54 dBA |
Decibel Rating | 54 dBA |
Filter Type | Washable |
Included | Heater, Mounting Hardware, Precharged Line Set, Remote Control, Self-diagnostic tools |
Line Set Length (Ft.) | 25 ft |
Mini Split Features | Auto cool, Automatic shutoff, Defrost, Fan only option, Mobile App, Overload protection, Sleep setting, Timer, Wifi |
Minimum Outdoor Temperature (F) | -13 |
Mount Location | Wall Mount |
Number of Tons | 1 ton |
Power Options | Hardwired |
Refrigerant Compatibility | R-454B |
Remote Access | Remote Access |
Requires Hub? | No Hub Required |
Returnable | 90-Day |
Smart Home | Smart Home Enabled |
Smart Home Protocol | Wi-Fi |
Voice Control Hub Required | No Hub Required for Voice Control |
Voltage (v) | 115v |
Wattage (watts) | Not Measured |
Works With | Alexa, Alexa, Google, Google Assistant |
Zone Capacity | 1 Zone |
Warranty / Certifications
Manufacturer Warranty | Limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty |
|---|---|
Seasonal Energy Efficiency Ratio (SEER) | 24.6 |
Seasonal Energy Efficiency Ratio 2 (SEER 2) | 23.5 |
Questions & Answers
Can I install it myself
Our MRCOOL® DIY® systems are designed for homeowner installation! If you'd like more insight into the installation process, you can check out one of our installation videos at https://youtu.be/VmKR1n-iWrw?si=tfifoi9QJQ3GfNch.!
How many square feet does a 12,000 BTU cover
Good morning, Bill. About 350–550 sq ft in a typical, well-insulated space; actual coverage depends on insulation, ceiling height, windows, layout, and climate (a Manual J load calc is the best way to be sure). Explore specs and sizing tips here: https://mrcool.com.
Is the indoor unit rated for 36,000 BTUs? When purchasing the 3-ton 1-zone unit
Good morning, Brian. Yes, the air handler for the MRCOOL® DIY® 36K single-zone system is rated for a full 36,000 BTUs in both heating and cooling operation. It’s designed to deliver balanced performance across both modes, matching the outdoor condenser’s capacity for optimal efficiency. You can explore more details about this and other MRCOOL® systems on our website at https://mrcool.com.
Will this unit dehumidify a basement?
Good morning. Absolutely! The DIY® Ductless Mini-Split efficiently dehumidifies while cooling and offers a dedicated Dry Mode function for enhanced dehumidification. Learn more at https://mrcooldiy.com/!
is it a inverter compressor
Good morning, Gary. MRCOOL® uses DC Inverter Technology in many of its condensers. This technology allows the compressor to adjust its speed dynamically rather than cycling on and off like traditional systems. This results in greater energy efficiency, more consistent temperatures, quieter operation, and reduced wear and tear on components, ultimately extending the system's lifespan. For more information, visit https://www.mrcool.com/.
Do I need any additional items to complete installation?
Good morning, Mike. Our 5th-Gen DIY® kit includes the outdoor condenser, indoor wall unit with mounting plate and wall sleeve, a 25ft pre-vacuumed/pre-charged Quick Connect® line set, drain hose, communication/power cable, remote, and basic hardware. You’ll still need field-supplied electrical (dedicated 230V circuit, breaker, outdoor disconnect/whip, conduit/wire), a pad or wall bracket, sealant/anchors, an optional line-set cover, and a condensate pump only if gravity drain isn’t possible. The indoor head is powered from the condenser, so there is no separate circuit needed for that. Feel free to check out our website at https://mrcool.com to learn more.
WHAT IS THE STARTUP AMPERAGE PULLED AND RUNNING AMPERAGE
Good morning, Matt. Our 5th-Gen DIY® 12K (115V) has an Inverter condenser, so it will not have a large startup surge. The starting and running amperage will be very consistent. You can expect roughly 8–9 amps at a typical cooling load, with a maximum branch-circuit breaker of 20A (115V). You can also explore specifications and installation information at https://doxrepo.mrcool.com/mc-diy-5-sz-im-um-en-01.pdf.
Can you disable wifi on this? I wouldn't want to use the app and get sensitive to devices that put off RF...
Good morning. Yes, you can run the 5th-Gen DIY® with no Wi-Fi. You can choose to simply not set it up and use the handheld remote only. Just clear or disable the network via the Wi-Fi reset steps in the manual. Please feel free to find more information on our systems at https://mrcool.com.
Viewing 1-8 of 133
Customer Reviews
4.4 out of 5
5
118
4
13
3
1
2
2
1
16
Thank you for your review and for sharing your feedback with us. We’re thrilled to hear that your new 12k unit is performing exceptionally well and keeping your loft cool, especially with those high ceilings and the challenging south-facing exposure. It’s fantastic to know that you’re satisfied with the performance and that the install went smoothly.
Your satisfaction is our top priority, and if you ever need assistance or have any questions, please don’t hesitate to reach out to our dedicated support team directly at 1-270-366-0457 or via email at support@mrcool.com. We’re here to help and ensure you continue to enjoy the comfort of your MRCOOL system.
Thanks again for your support and recommendation!
Best regards,
MRCOOL Support Team
We're sorry to hear about the difficulties you're facing. Feel free to reach out to me directly at csmanager@mrcool.com.
Loading Recommendations
Compare Key Features
Product Snapshot | |
|---|---|
DIY beginner-friendly mini-split heat pump system with easy installation and user-friendly features for hassle-free setup. | Great for homeowners looking for energy efficiency, making climate control easier and more efficient. |
Cooling Capacity | |
12000 BTU | 9000 BTU |
Heating Capacity | |
12000 BTU | 9000 BTU |
Number of Zones | |
1 Zone | 1 Zone |
SEER Rating | |
23.5 | 23.6 |
Wi-Fi Enabled | |
Related Searches
Related Products

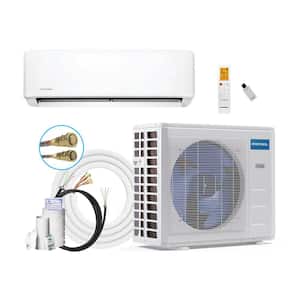

DIY 5th Gen 9000 BTU 23.6 SEER2 3/4-Ton Mini-Split Heat Pump Complete System 25 ft. Pre-Charged Line Set 115-Volt-R454B
Upgrade your space with the 5th Generation MRCOOL DIY 9K BTU Ductless Heat Pump Mini-Split System, featuring both an air handler and condenser designed for effortless installation and efficient climate control. Ideal for spaces up to 400 sq. ft. this system requires no special tools or professional skills, making it a true DIY solution. The pre-charged 25 ft. Quick Connect line set, filled with R-454B refrigerant saves you time and installation costs. The included DIYPRO cable enhances durability by replacing traditional electrical conduit, offering protection against weather, wildlife, and damage from yardwork. Take full control of your comfort with a variety of options, including the wireless remote, the Smart HVAC app for Apple and Android devices, or hands-free voice commands via Amazon Alexa and Google Assistant. With a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty, you can trust the 5th Generation MRCOOL DIY Mini-Split for reliable, long-term performance. Enjoy easier installation, advanced technology, and year-round comfort with this efficient and durable heating and cooling solution.

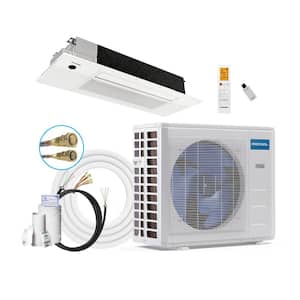

DIY 5th Gen 18,000 BTU 22.5 SEER2 1.5-Ton Single Zone Ductless Mini Split Heat Pump Complete System with Cassette 230V
Upgrade your space with the 5th Generation MRCOOL DIY 18K BTU Ductless Heat Pump Mini-Split System, featuring both a ceiling mounted cassette air handler and condenser designed for effortless installation and efficient climate control. Ideal for spaces up to 800 sq. ft., this system requires no special tools or professional skills, making it a true DIY install. The pre-charged 25 ft. QuickConnect line set, filled with R-454B refrigerant saves you time and installation costs. The included DIYPRO cable enhances durability by replacing traditional electrical conduit, offering protection against weather, wildlife, and damage from yardwork. Take control of your comfort with a variety of options, including the wireless remote, the SmartHVAC app for Apple and Android devices, or hands-free voice commands via Amazon Alexa and Google Assistant. Unlike traditional ceiling cassettes that require extensive ductwork or inconvenient wall space, this unit offers a flexible installation ideal for both new builds and retrofit projects. Advanced filtration enhances indoor air quality, while the Elevation function allows easy filter maintenance by lowering the panel for convenient access. With a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty, you can trust the 5th Generation MRCOOL DIY Mini-Split for reliable, long-term performance. Enjoy easy installation, advanced technology, and year-round comfort with this efficient and durable heating and cooling solution.

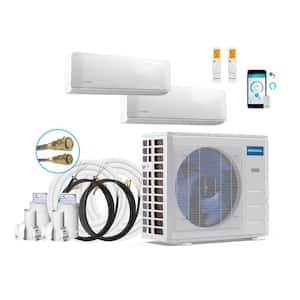

DIY 5th Gen 24,000 BTU Ductless 3 Ton 23 SEER2 Heat Pump 2 Zone Wall Mounted 6K Plus 18K w/2-6 ft. Install Kits-230-Volt
