DIY 5th Gen 36,000 BTU 3 Ton 3 Zone 23 SEER2 Ductless Mini Split AC and Heat Pump with 9K, 9K, 12K and 25,25,50ft Lines
- Easy DIY mini split installation with pre-charged new R454B lines
- High-efficiency ductless mini split system: 23 SEER2
- Multi zone heat pump provides cost effective heating and cooling
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
This three zone MRCOOL DIY bundle includes a 36k BTU condenser, two 9k & one 12k wall mount air handler, two 25' and one 50' pre-charged line sets. The Multi-Zone Ductless Mini-Split Heat Pump Condenser delivers powerful, whole-home comfort while helping you save on both installation and long-term energy costs. When fully installed with compatible air handlers, this high-capacity unit can efficiently heat and cool up to six individual zones, covering a total area of approximately 1,500 square feet. Boasting an impressive SEER2 rating of 23 and an HSPF2-4 rating of 9.9, this condenser offers outstanding energy efficiency, making it ideal for homeowners who want to reduce utility bills without sacrificing performance. Installation is made remarkably simple thanks to MRCOOL's patented pre-charged DIY Quick Connect line sets, pre-filled with R-454B refrigerant. These line sets eliminate the need for vacuuming, gauges, or specialized tools, allowing most homeowners to complete the setup themselves-no professional HVAC technician required. This innovation not only streamlines the installation process but also saves money and time from day one. The Ductless Mini-Split Heat Pump Air Handlers offer an ideal combination of power, efficiency, and convenience. MRCOOL offers strong warranty protection. With online registration, your air handler is covered by a 7-year compressor and a 5-year parts warranty.
Highlights
- SEER2 rating of 23 and an HSPF2-4 rating of 9.9
- Not compatible with R410A systems.
- Easy DIY installation: pre-charged R-454B quick connect line doesn't require special tools, equipment, or training.
- SmartHVAC App: Wi-Fi control compatible with Alexa and Google Assistant you can control your DIY anywhere with your Apple or Android smart device and an Internet connection.
- Low ambient cooling: cooling down to 5F this feature makes the MRCOOL DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year.
- Standard 7-year compressor and 5-year parts warranty, register for limited lifetime compressor warranty.
- Keep the included remote close by, and MRCOOL DIY's follow me function will track the air temperature around you to ensure maximum comfort.
- Energy Efficient DC Inverter
- Utilizes the new R-454B refrigerant
- Easy DIY Installation
- UL Listed, ETL Listed, E Star Certified, AHRI Certified
- To estimate the BTU range (cooling capacity), use our Air Condition BTU Calculator
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Additional Resources
Shop All MRCOOLSpecifications
Dimensions
Air handler depth (in.) | 7.44 |
|---|---|
Air handler height (in.) | 11.69 |
Air handler width (in.) | 31.57 |
Condenser depth (in.) | 16.14 |
Condenser height (in.) | 31.89 |
Condenser width (in.) | 37.42 |
Details
Air Handler BTU | 9000 BTU x 9000 BTU x 12000 BTU |
|---|---|
Air handler weight (lb.) | 24.47 |
Amperage (A) | 35 A |
BTU Cooling Rating | 36000 BTU |
BTU Heat Rating | 36000 BTU |
Condenser weight (lb.) | 169.24 |
Coverage Area (sq. ft.) | 1500 |
Decibel (Sound) Rating | 64 dBA |
Decibel Rating | 64 dBA |
Filter Type | Washable |
Included | Heater, Mounting Hardware, Precharged Line Set, Remote Control, Self-diagnostic tools |
Line Set Length (Ft.) | 25 ft x 25 ft x 50 ft |
Mini Split Features | Fan only option, Mobile App, Multi-zone compatible, Timer, Wifi |
Minimum Outdoor Temperature (F) | 5 |
Mount Location | Wall Mount |
Number of Tons | 3 ton |
Power Options | Hardwired |
Refrigerant Compatibility | R-454B |
Remote Access | Remote Access |
Requires Hub? | No Hub Required |
Returnable | 90-Day |
Smart Home | Smart Home Enabled |
Smart Home Protocol | Wi-Fi |
Voice Control Hub Required | No Hub Required for Voice Control |
Voltage (v) | 208/230v |
Wattage (watts) | Not Measured |
Works With | Alexa, Google, Google Assistant |
Zone Capacity | 3 Zone |
Warranty / Certifications
Manufacturer Warranty | The unit comes standard with a 5 year parts and 7 year compressor warranty. |
|---|---|
Seasonal Energy Efficiency Ratio (SEER) | 24 |
Seasonal Energy Efficiency Ratio 2 (SEER 2) | 23 |
Questions & Answers
This unit is listed as DIY, but the handyman tells me I need an electrician. What gives?
Thank you for your question! MRCOOL® DIY® systems are designed so homeowners can complete the installation themselves without specialized HVAC tools, including pre-charged line sets that eliminate the need for vacuuming or refrigerant handling. Electrical requirements are governed by local codes, which means some jurisdictions allow homeowners to perform their own electrical work, while others require a licensed electrician for the final connection. That requirement comes from local regulations, not from the system itself, and it applies to many permanently wired appliances. You can review installation resources, code considerations, and system details anytime at https://mrcool.com.
No matter what size unit I select (9k, 12k, 18k) the description says it supports 1,500 sf. What space could a 3-zone 9k, 9k , & 18k heat & cool?
Thank you for your question, Dave. The condenser has a total capacity of 36K BTU, which can cool up to a combined 1,500 square feet. The DIY® 5th Gen 36K BTU Ductless Mini-Split and 3 air handlers (9K, 9K, and 18K) can cool or heat up to a total of 1,500 square feet, but the amounts each air handler can cool or heat is different. The 9K air handlers can cool or heat spaces up to 400 square feet each, while the 18K air handler can handle spaces up to 800 square feet. To learn more about our DIY® products, please visit us at https://mrcooldiy.com.
Breaker size?
Thank you for your question Dexter. The max fuse breaker for this unit would be 35. For more information on our system, take a look at https://mrcooldiy.com/.
What connector size are the line sets for the 36000 model with 3 indoor units at 12K each? 1/4 x 3/8 or 1/4 x1/2. I need to get a longer line and need to know which one to purchase.
Thank you for your question. You would need the 1/4 x 3/8 to go with making your line longer. For further details, please visit our website at https://mrcool.com/!
How long can the lines be extended?
Thank you for your question Triton. We suggest that the line sets do not extend 75ft. For further details, please visit our website at https://mrcool.com/!
What is the model # for the condenser unit. Thank you.
Thank you for your question. We do not carry a 30,000 BTU system. We do carry however a 27,000 or 36,000 BTU.
Manufacture Warranty is 5 years. Does the warranty require professional installation, or is it valid for homeowner permit / DIY installations?
Thank you for your question JaviBen. The MRCOOL® DIY® system is built for easy self-installation, with pre-charged Quick Connect® line sets that eliminate the need for HVAC licensing or refrigerant handling. For the electrical connection, though, we highly recommend hiring a licensed electrician to make sure everything is up to code. For more details, visit https://www.mrcool.com/product/diy-5th-generation.
Product listed as 36k btu but but each unit is 9k, 9k and 12k—-the math ain’t mathin’
Thank you for your question. On the DIY® 5th Gen Multi-Zone units they can also have a 6k air handler and there is a 16 ft. line set that can be purchased. For more information on our MRCOOL® DIY® systems visit us at https://mrcool.com/.
Viewing 1-8 of 11
Customer Reviews
3.5 out of 5
5
6
4
3
3
0
2
0
1
4
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for homeowners looking for whole-home comfort, ensuring efficient heating and cooling in multiple zones. | DIY beginner-friendly with easy installation and smart controls for hassle-free comfort. | DIY beginner-friendly with easy installation and smart controls for multi-zone comfort. | DIY beginner-friendly with easy installation and smart control for efficient multi-zone heating and cooling. |
Cooling Capacity | |||
36000 BTU | 36000 BTU | 36000 BTU | 36000 BTU |
Heating Capacity | |||
36000 BTU | 36000 BTU | 36000 BTU | 36000 BTU |
Number of Zones | |||
3 | 4 zones | 4 zones | 4 zones |
SEER Rating | |||
23 | 23 SEER2 | 23 SEER2 | 23 SEER2 |
Wi-Fi Enabled | |||
Related Products

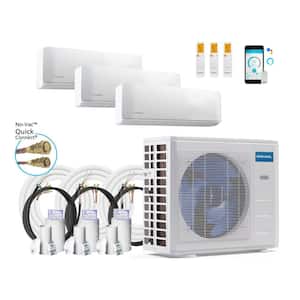

DIY 5th Gen 36,000 BTU 3 Ton 3 Zone 23 SEER2 Ductless Mini Split AC and Heat Pump with 9K, 9K, 18K and 25,25,25ft Lines
This three zone MRCOOL DIY bundle includes a 36k BTU condenser, two 9k & one 18k wall mount air handler, and three 25' pre-charged line sets. The Multi-Zone Ductless Mini-Split Heat Pump Condenser delivers powerful, whole-home comfort while helping you save on both installation and long-term energy costs. When fully installed with compatible air handlers, this high-capacity unit can efficiently heat and cool up to six individual zones, covering a total area of approximately 1,500 square feet. Boasting an impressive SEER2 rating of 23 and an HSPF2-4 rating of 9.9, this condenser offers outstanding energy efficiency, making it ideal for homeowners who want to reduce utility bills without sacrificing performance. Installation is made remarkably simple thanks to MRCOOL's patented pre-charged DIY Quick Connect line sets, pre-filled with R-454B refrigerant. These line sets eliminate the need for vacuuming, gauges, or specialized tools, allowing most homeowners to complete the setup themselves-no professional HVAC technician required. This innovation not only streamlines the installation process but also saves money and time from day one. The Ductless Mini-Split Heat Pump Air Handlers offer an ideal combination of power, efficiency, and convenience. MRCOOL offers strong warranty protection. With online registration, your air handler is covered by a 7-year compressor and a 5-year parts warranty.
DIY 5th Gen 36,000 BTU 3 Ton 4 Zone 23 SEER2 Ductless Mini Split AC and Heat Pump-6K,9K,9K,12K and 25,25,50,50 ft. Lines
This four zone MRCOOL DIY bundle includes a 36k BTU condenser, 6k/(2)9k/12k wall mount air handlers, and (2)25' & (2)50' pre-charged line sets. The Multi-Zone Ductless Mini-Split Heat Pump Condenser delivers powerful, whole-home comfort while helping you save on both installation and long-term energy costs. When fully installed with compatible air handlers, this high-capacity unit can efficiently heat and cool up to six individual zones, covering a total area of approximately 1,500 square feet. Boasting an impressive SEER2 rating of 23 and an HSPF2-4 rating of 9.9, this condenser offers outstanding energy efficiency, making it ideal for homeowners who want to reduce utility bills without sacrificing performance. Installation is made remarkably simple thanks to MRCOOL's patented pre-charged DIY Quick Connect line sets, pre-filled with R-454B refrigerant. These line sets eliminate the need for vacuuming, gauges, or specialized tools, allowing most homeowners to complete the setup themselves-no professional HVAC technician required. This innovation not only streamlines the installation process but also saves money and time from day one. The Ductless Mini-Split Heat Pump Air Handlers offer an ideal combination of power, efficiency, and convenience. MRCOOL offers strong warranty protection. With online registration, your air handler is covered by a 7-year compressor and a 5-year parts warranty.

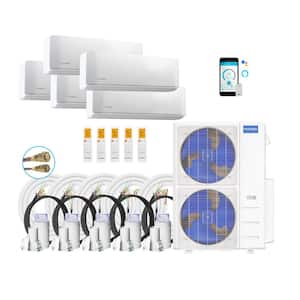

DIY 5th Gen 48,000 BTU 4-Ton 5-Zone 21.8 SEER2 Ductless Mini Split AC /Heat Pump w/(4) 9K,12K - 16,25,25,50,50 ft. Lines
