DIY 5th Gen 36,000 BTU 3 Ton 4 Zone 23 SEER2 Ductless Mini Split AC and Heat Pump-6K,6K,9K,12K and 25,25,50,50 ft. Lines
- Easy DIY mini split installation with pre-charged new R454B lines
- High-efficiency ductless mini split system: 23 SEER2
- Multi zone heat pump provides cost effective heating and cooling
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product

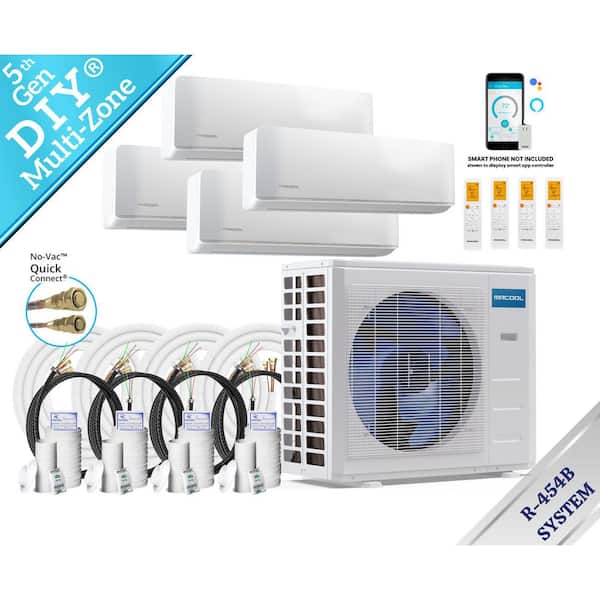

This four zone MRCOOL DIY bundle includes a 36k BTU condenser, (2)6k/9k/12k wall mount air handlers, and (2)25' & (2)50' pre-charged line sets. The Multi-Zone Ductless Mini-Split Heat Pump Condenser delivers powerful, whole-home comfort while helping you save on both installation and long-term energy costs. When fully installed with compatible air handlers, this high-capacity unit can efficiently heat and cool up to six individual zones, covering a total area of approximately 1,500 square feet. Boasting an impressive SEER2 rating of 23 and an HSPF2-4 rating of 9.9, this condenser offers outstanding energy efficiency, making it ideal for homeowners who want to reduce utility bills without sacrificing performance. Installation is made remarkably simple thanks to MRCOOL's patented pre-charged DIY Quick Connect line sets, pre-filled with R-454B refrigerant. These line sets eliminate the need for vacuuming, gauges, or specialized tools, allowing most homeowners to complete the setup themselves-no professional HVAC technician required. This innovation not only streamlines the installation process but also saves money and time from day one. The Ductless Mini-Split Heat Pump Air Handlers offer an ideal combination of power, efficiency, and convenience. MRCOOL offers strong warranty protection. With online registration, your air handler is covered by a 7-year compressor and a 5-year parts warranty.
Highlights
- SEER2 rating of 23 and an HSPF2-4 rating of 9.9
- Not compatible with R410A systems
- Easy DIY installation: pre-charged R-454B quick connect line doesn't require special tools, equipment, or training
- Smart HVAC app: Wi-Fi control compatible with Alexa and google assistant you can control your DIY anywhere with your apple or android smart device and an internet connection
- Low ambient cooling: cooling down to 5F this feature makes the MRCOOL DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
- Standard 7-year compressor and 5-year parts warranty, register for limited lifetime compressor warranty
- Keep the included remote close by, and MRCOOL DIY's follow me function will track the air temperature around you to ensure maximum comfort
- Energy efficient DC inverter
- Utilizes the new R-454B refrigerant
- Easy DIY installation
- UL listed, ETL listed, E-star certified, AHRI certified
- To estimate the BTU range (cooling capacity), use our Air Condition BTU Calculator
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Additional Resources
Shop All MRCOOLSpecifications
Dimensions
Air handler depth (in.) | 7.44 |
|---|---|
Air handler height (in.) | 11.69 |
Air handler width (in.) | 31.57 |
Condenser depth (in.) | 16.14 |
Condenser height (in.) | 31.89 |
Condenser width (in.) | 37.42 |
Details
Air Handler BTU | 6000 BTU x 6000 BTU x 9000 BTU x 12000 BTU |
|---|---|
Air handler weight (lb.) | 24.47 |
Amperage (A) | 35 A |
BTU Cooling Rating | 36000 BTU |
BTU Heat Rating | 36000 BTU |
Condenser weight (lb.) | 169.24 |
Coverage Area (sq. ft.) | 1500 |
Decibel (Sound) Rating | 64 dBA |
Decibel Rating | 64 dBA |
Filter Type | Washable |
Included | Heater, Mounting Hardware, Precharged Line Set, Remote Control, Self-diagnostic tools |
Line Set Length (Ft.) | 25 ft x 25 ft x 50 ft x 50 ft |
Mini Split Features | Fan only option, Mobile App, Multi-zone compatible, Timer, Wifi |
Minimum Outdoor Temperature (F) | 5 |
Mount Location | Wall Mount |
Number of Tons | 3 ton |
Power Options | Hardwired |
Refrigerant Compatibility | R-454B |
Remote Access | Remote Access |
Requires Hub? | No Hub Required |
Returnable | 90-Day |
Smart Home | Smart Home Enabled |
Smart Home Protocol | Wi-Fi |
Voice Control Hub Required | No Hub Required for Voice Control |
Voltage (v) | 208/230v |
Wattage (watts) | Not Measured |
Works With | Alexa, Google, Google Assistant |
Zone Capacity | 4 Zone |
Warranty / Certifications
Manufacturer Warranty | The unit comes standard with a 5 year parts and 7 year compressor warranty. |
|---|---|
Seasonal Energy Efficiency Ratio (SEER) | 24 |
Seasonal Energy Efficiency Ratio 2 (SEER 2) | 23 |
Questions & Answers
Can you add a 5 th zone
Thank you for your question, Bobby! We offer a DIY® 5th Gen 5-Zone system just for this purpose. For more information, visit https://mrcooldiy.com/
Does it use heating oil
Thank you for your question Skip. The DIY® 5th Gen unit uses the new R454B refrigerant. For more details, visit https://www.mrcool.com/product/diy-5th-generation.
Does this bundle model includeheat
Thank you for your question. The DIY 5th Gen. is a heating and cooling unit. For more information on our system, take a look at https://mrcooldiy.com/.
What is the Sq footage that this 4 head unit system is meant to cover?
Good morning. We generally recommend the MRCOOL® DIY® 5th Gen 36K 4‑Zone Mini Split for spaces up to about 1,400–1,500 sq ft under ideal conditions. That said, actual coverage depends heavily on factors like insulation, ceiling height, layout and how many indoor units you install. For best results, treat 1,500 sq ft as a rough guideline — but have a professional perform a load calculation for an accurate match. You can find out more about a Manual JLoad calculation on our website at https://mrcool.com.
Can the air handlers be mounted on the ceiling
Our OuttaSight™ Ceiling Cassette units are designed specifically for horizontal installation and cannot be mounted on walls. For further details, please visit our website at https://mrcool.com/!
Does each air handler need its own power source?
No, each air handler does not need its own power source. All MRCOOL® DIY® indoor units are powered directly by the outdoor condenser through the included communication cables. Only the condenser connects to your home’s main electrical supply. You can find full wiring and connection details in the installation manual or at https://mrcool.com.
Can a line be cut if it’s to long?
Good morning, Mike. MRCOOL® DIY® pre-charged line sets can’t be cut, altered, or spliced. Doing so will release the refrigerant, make the system inoperable, and void the warranty. If you need a different length, you’ll want to order the correct size pre-charged line set for your installation. You can explore available lengths and options here: https://mrcool.com.
What is the preferred wire size and breaker for a 36,000 BTU and 6k, 9k, 9k and 12k 4-zone system?
Good morning, Geoff. For the DIY® 5th Gen 36K multi-zone system, use a 220–240 V dedicated circuit with a 30-amp double-pole breaker and 10 AWG copper (10/2 with ground) wire. Each indoor air handler connects to the outdoor condenser via the included communication cable and doesn’t need its own breaker. Always verify wiring and breaker size with the unit’s nameplate and local code. You can find more information on our systems on our website at https://mrcool.com.
Viewing 1-8 of 8
