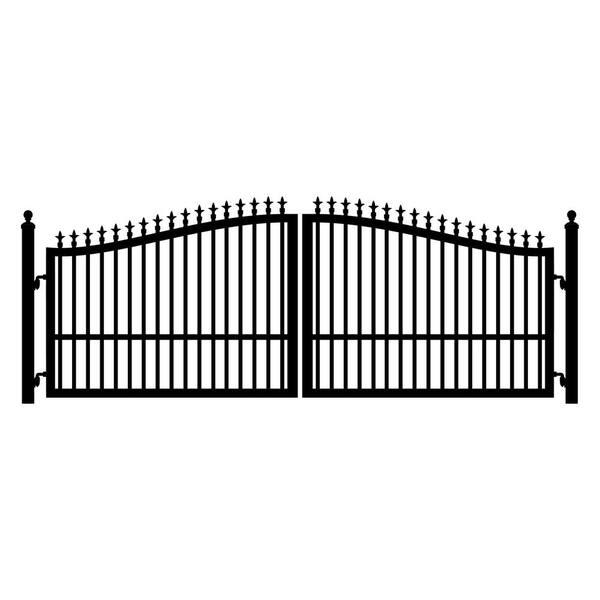

St. Augustine 12 ft. W x 5 ft. H Powder Coated Steel Dual Driveway Fence Gate

Questions & Answers
  • Designed for the "Do-It-Yourself" installer
  • Heavy-gauge steel coated with a black powder coated finish
  • Backed by a limited lifetime Mighty Mule warranty
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Enhance your property’s curb appeal and add safety with a Mighty Mule driveway gate. This sturdy and elegant design is engineered to with stand all climates while protecting your property. Attractive steel forged Mighty Mule driveway gates are designed for the DIY (Do-It-Yourself) home and property owner. Easy to install and specifically designed to work with Mighty Mule Gate Openers for increased ease of installation. No welding is required, Mighty Mule Gates come professionally prefabricated for installation.
  • Kit includes: 2 gate leafs, 4 ball bearing hinges, 2 gate posts, 2 gate post caps, gate finials, mounting hardware, installation manual, 1 touch up paint pen
  • Easy diy (do it yourself) installation
  • Heavy-gauge steel coated with resilient black powder coated finish to ensure durability for a long lasting, maintenance free finish
  • Backed by a limited Mighty Mule warranty and technical support
  • Mighty Mule automatic gate opener sold separately
  • Some assembly required: finials are packaged separate and require to be attached with adhesive (included)
  • Recommended gate opener: (MM462) medium duty dual swing automatic driveway gate opener for this driveway gate

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Assembled Height (in.)
64 in
Assembled Width (in.)
144 in
Gate Height (in.)
60
Gate opening width (in.)
136
Gate thickness (in.)
2
Gate Width (in.)
136
Nominal gate height (ft.)
5
Nominal gate width (ft.)
12
Picket Length (ft.)
5
Picket Spacing (in.)
4
Picket Thickness (in.)
.75
Picket Width (in.)
.75
Rail length (in.)
134
Rail thickness (in.)
1.5
Rail width (in.)
1.5

Details

Color Family
Black
Color/Finish
Black powder coated finish to ensure durability for a long lasting, maintenance free finish
Features
No Additional Features
Includes
Hardware,Posts
Material
Metal
Number of rails for panels
3
Panel Assembly
Assembled Panel
Panel Pattern
Spaced Bar
Product Weight (lb.)
386
Returnable
180-Day
Structure Type
Ornamental
Top Shape
Arched
Top Style
Pointed

Warranty / Certifications

Manufacturer Warranty
Backed by a limited Mighty Mule warranty and technical support

Questions & Answers

6Questions6Answers

Can the finials be spray painted? Do the ball caps come off the posts and are they able to be pa...

Asked by lukajoey June 9, 2018
1
Answer

Yes, the ball caps come off the top of the posts. It would be hard to spray paint it on top of the powder coat may be more acceptable to peel. Would want to strip it and clean it and use acrylic paint.

What additional accessories are needed for this gate to work, i.e., brackets, gate operator kit, ...

Asked by smcgovern14 March 10, 2017
1
Answer

Smcgovern14, Thank you for taking the time to post your question. The Mighty Mule G2512-KIT St. Augustine Dual Swing Gate comes with everything needed for installation except the tools required for installation and the concrete to set the gate post in the ground. The gate kit includes 2 gate leafs, 4 ball bearing hinges, 2 gate posts, 2 gate post caps, gate finials, mounting hardware, installation manual, 1 touch up paint pen. For automating this gate with a Mighty Mule Gate Opener, we recommended gate opener model MM462. The Mighty Mule MM462 Includes: 2 single button access remotes (model # FM135), AC transformer (model # RB570), 12-Volt 7 Amp-hour battery (model # FM150), control box, all required hardware and a detailed installation manual with an interactive DVD. To make the gate opener installation even faster consider adding a Mighty Mule G3210 - gate bracket, this attachment bracket provides the proper stability when attaching any Mighty Mule Gate Operator to your gate. Designed to easily attach and install your Mighty Mule Gate Opener on your gate(s)

i've ordered st augustine, 12 ft, double gates. what's the maximum drive through gap between the gates when the gates are hung on the metal posts?

Asked by 1DumbEnglishman February 26, 2016
1
Answer

Hello houston59, Thank you for taking the time to post your question. The standard drive through width on an installed St. Augustine dual 12 ft. gate is 11' 4''. The gates are able to swing to a open position of 90 degrees. Depending on your installation conditions, they gate can swing open to slightly more than 90 degrees, To make the gate post installation as easy as possible dig the holes approximately 12” wide, 20” long (the elongated side should run parallel to the driveway). Do not make holes perfectly round to help prevent posts from twisting after time. Depth of the hole will depend on whether the ground is level or sloped. If ground is flat, holes should be approximately 42” deep. We will also be contacting you before we ship your gate if any further questions come up. Thank you,

I need to know what the gate measures from outside to outside of the mounting poles?

Asked by Billy January 16, 2016
1
Answer

Hello Billy, Thank you for posting your question. You can find all the measurements of the Mighty Mule G2512-kit on Home Depot.com on the gates product page under "Info & Guides" on the "specification" page. From the gates outside post to outside post the G2512-KIT measures 12' 8''. Thank you,

is the 144inch dimension shown in the specs the inside to inside post dimension? then is 136inch the dimension when gate is open ?

Asked by kent November 9, 2015
1
Answer

Hello Kent, The 144 inch dimension shown on the gate specifications sheet is the inside post to inside post dimension.This 144 inch dimension includes a 2 inch gap between the gate leafs upon installation. The 136 inch dimension would be when the gate is in the fully opened position. Thank you,

I live in Dothan, Alabama. The zip is 36303. If I order the gates to come to the Home Depot Store and I pick them up, what is the shipping charges?

Asked by Linkay November 21, 2013
1
Answer

Thank you for your recent inquiry with The Home Depot. Unfortunately, this item is not eligible to be shipped to your local Home Depot store. This item has a flat rate shipping fee of $55.00. If you have any other questions, please call us at HomeDepot.com Customer Service at 800-430-3376.
