Internet #301042332

Model #49-93-7810

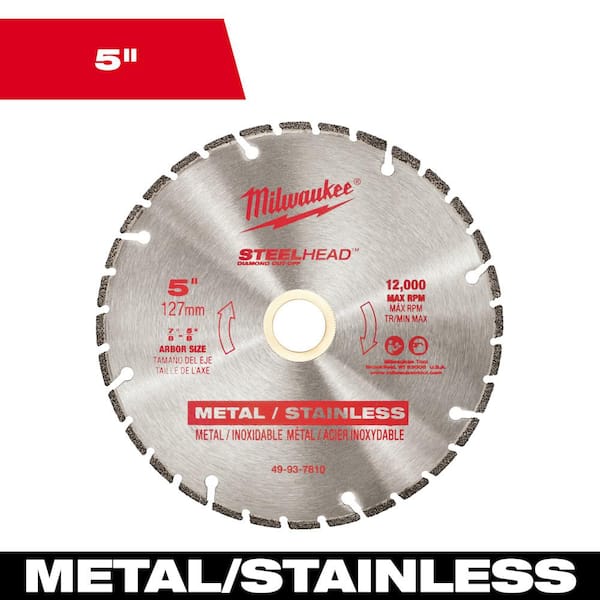

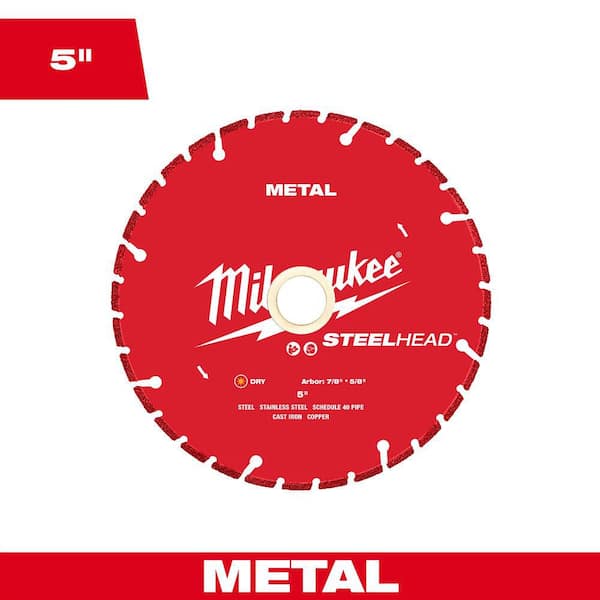

5 in. Steelhead Diamond Cut Off Blade

  • Diamond Cut-Off blades are designed to the highest standards
  • Cut metal and stainless materials delivering up to 75X the life
  • Designed to be used dry
  • See More Details

Product Overview

Milwaukee Steelhead Diamond Cut-Off blades are designed to the highest standards, only using quality diamonds. Available in sizes 4 in. - 14 in., Milwaukee Steelhead Diamond Cut-Off blades are uniquely engineered to cut metal and stainless materials delivering up to 75X the life vs. Milwaukee standard bonded abrasives.
  • Up to 75x the life vs. Milwaukee standard bonded abrasives
  • Cuts more steel - high grade diamond grit outperforms and outlasts bonded abrasives
  • Maintains diameter - steel core ensures consistent cutting depth
  • Minimizes debris - solid steel body will not disintegrate during cutting
  • Max RPM 12,000
  • Designed to be used dry
  • Metal diamond cutting blade

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Details

Blade Diameter (in.)
5
Color Family
Silver
Ideally Used With
Angle Grinders
Material Cut
Metal
Number in Package
1
Power Tool Accessory Type
Blade
Returnable
180-Day
Rim Type
Continuous
Saw Blade Material
Steel
Teeth Per Inch
0
Tool Type
Saw Blade

Questions & Answers

12Questions26Answers

Will this blade cut rebar?

Asked by Bob November 13, 2017
4
Answers

Yes this blade cuts rebar just fine.

can this be used on a 7 inch grinder?

Asked by NevadaElectrician November 7, 2017
4
Answers

Yes it can be attached to a grinder but I recommend using a guard for safety.

This has a 7/8" arbor hole. I have seen it suggested that a 7/8" arbor hole can be used with a 5/...

Asked by Norm April 9, 2019
3
Answers

The gold ring shown in the arbor above is a removable adapter allowing this to be used on both 7/8” or 5/8” arbors. I wouldn’t suggest using a larger arbor diameter than what is recommended as the blade will have 1/8” of play all around when installed and could move when it bogs down, potentially leading to kickback and injury.

Is it ok to use this blade for cutting vinyl siding? If not what blade is recommended?

Asked by Jgum1961 June 14, 2018
3
Answers

I personally wouldn’t suggest it as vinyl is rather unforgiving. Your best method would be a Circular saw with a vinyl cutting blade or a high tooth count blade to get clean and accurate cuts with less chip out, the more teeth the better. You could also give it the Ol’ Reliable treatment and score it with a razor knife and patience.

Will this 7inwork on a 6 1/2 m18 saw

Asked by Dan October 6, 2017
3
Answers

No, 6 1/2 inch is too small for use with the 7inch blade

Can i use this blade with a this http://www.homedepot.com/p/Bosch-15-Amp-Corded-12-in-Dual-Bevel...

Asked by Ncr July 4, 2017
2
Answers

Your Bosch 15 Amp Corded 12 in. Dual-Bevel Glide Miter Saw comes with a 12 inch 60-Tooth Wood Cutting Blade. Typically, replacing a blade the consideration is the diameter of the replacement blade. However, the 12 in. Milwaukee Steelhead Diamond Cut-Off blade is uniquely engineered to cut metal and stainless steel materials. Refer to your Bosch Operators Manual for replacement blade compatibility or contact Bosch Customer Service. Please be aware of all safety requirements when operating any power saw. Safety glasses, face shield, and cut gloves are mandatory.

Can I use this with a 4.5in angle grinder?

Asked by Routesetting101 June 25, 2020
2
Answers

Yes, that's what it's made fir, excellent blade.

Can this blade be used with a coolant such as water or mineral oil?

Asked by KB June 25, 2019
2
Answers

this blade is designed for dry cut only

Will this cut rebar?

Asked by Bob November 13, 2017
2
Answers

no, this blade is not recommended for cutting rebar

Hello, will this cut through a galvanized steel I-Beam?

Asked by Seb July 15, 2019
1
Answer

You shouldn’t have any problems cutting through most metals up to 1/2” thick, including galvanized steel. I suggest you wear ear plugs as this blade is obnoxiously loud.

5 in. Steelhead Diamond Cut Off Blade - page 2

Customer Reviews

  • 58 Customer Reviews
  • 4.8 out of 5 stars overall
98% of customers recommended.
Overall Ratings
5star-icon(52)
4star-icon(4)
3star-icon(0)
2star-icon(0)
1star-icon(2)
Sort By:
This Milwaukee 14” Steelhead diamond cutoff blade works very well on the various metals I used it...
Quality :
5
Value :
4
Seeds Program Review
(What's this)
This Milwaukee 14” Steelhead diamond cutoff blade works very well on the various metals I used it on. I cut aluminum 6061 stock and it cut like butter, very easily. I cut numerous cuts of steel basically cold roll stock and re bar 3, 4 and it cuts very good leaving very small burrs. The best thing is that after cutting a substantial amount of material you still have the full 14” blade that allows you to continue cutting with the full depth of a 14 inch blade compared to the using a aluminum oxide blade that wears away the blade and after several cuts your cutting depth has severely diminished. The next big factor to consider is the smell which I would presume is toxic fumes that become airborne while cutting with aluminum oxide blades especially in shops. This is a dry cutting steel / aluminum cutting blade and should NOT be used for cutting any type of concrete or masonry material. Another item for consideration, and I really liked about the blade is it is much safer than abrasive oxide cut off blades. There is less chance for a blade coming apart. Please use all protective clothing and guards to prevent injuries. Make sure you look for the rotation arrows as the saw pictured has to have the blade mounted in reverse for correct rotation.
Was this helpful?
2
0
keeps cutting
Quality :
5
Value :
5
Seeds Program Review
(What's this)
living on a 4th generation property I have the task of removing a lot of metal left for further use or just disposed of I have to cut up metal of all kinds to fit in the recycle bin. Rebar, welded wire fencing, angle iron, old tractor parts, pipe. I have been using the grit cut off wheels and after use for 15 minutes or so have to replace the wheel because it has worn down to far to use. With this steel diamond cut off blade I can just keep cutting till the job is done. which saves me time.
Was this helpful?
3
0
Good Solid Blade
Quality :
5
Value :
5
Seeds Program Review
(What's this)
The Milwaukee 12 inch Steelhead Diamond Cut Off Blade worked very well on several different types of metal. I cut 3/4 black gas pipe, 3/4 galvanized pipe, and 3/4 copper pipe. All cut clean. I own a 12 inch Bosch compound miter saw so I had to get the 12 inch Milwaukee blade. I doubt I will ever have a need to cut very large pieces of metal which this saw could handle but it's a lot nicer than using my hand grinder. Great blade to have in my arsenal for all my construction projects.
Was this helpful?
0
0
Wonder Blade
Quality :
5
Value :
5
Seeds Program Review
(What's this)
The blade says it can last about 74 X longer than a regular cut off blade. I was a little doubtful. See the pictures of the job we took on. About 3000 LBS. of stainless that had to be cut from regular steel to scrap for full value. We used 36 regular blades to cut 1/2 of the work and 1 Milwaukee 49‑93‑7805 4‑1/2" Steelhead Diamond blade to do the rest. The blade still has life left in it. You do the math. I figured I saved at least 85% on blade costs with the using this blade. It paid for itself after using 9 of the other kind. I still have a very usable product This blade can produce more sparks so use all safety gear and dress so no skin is exposed. You will also find that using this blade is a bit slower than the other kind. However the saving are well worth it. Remember that for most, this blade will be used in short time jobs. I would probably lose the blade long before I could wear it out.
Was this helpful?
2
0
Best Ever Cut-Off Blade
Quality :
5
Value :
5
Seeds Program Review
(What's this)
Milwaukee's 4 inch SteelHead Diamond Cut-Off Blade is the Very Best Cut-Off Blade I've ever used. I put in on my Milwaukee 18 volt cut off tool and it cut a 1/4 inch thick Angle Iron like butter. Then I cut through a Stainless Steel Shower Door Frame with ease. The diamond cutting edge makes all the difference. I can see this Blade outlasting other blades 20 times longer. Very Impressed and Pleased to have it.
Was this helpful?
0
0
Great blade!
Quality :
5
Value :
5
Seeds Program Review
(What's this)
I just got this blade and I've been using it to cut black iron pipe and galvanized steel pipe. It does the job fast and makes a smooth and clean cut. I have not noticed any difference from the first cut through cut number 50 or so. It seems to be cutting as well now as it did on the first cut. One nice thing is that the blade is returnable in 90 days so you'll have the opportunity to return it if you find it does not meet your needs.If it keeps cutting the way it has it will be a great value.
Was this helpful?
2
0
Works way better than expected
Quality :
5
Value :
5
Seeds Program Review
(What's this)
Always follow manufacturers directions use all safety guards and PPE. As a plumber, I frequently need to cut out cast iron pipe to make repairs or modifications. In the past I've used diamond blades that are not designed for cutting metal because the composite blades just disintegrate too fast. I was really happy to hear that someone finally makes a blade similar to a diamond blade that is designed specifically for cutting metals. I used it today on a 130 year old Extra Heavy cast iron pipe. It worked perfectly. After making several cuts that would have consumed several composite blades the SteelHead blade continued to cut like new. I really had low expectations because this blade is much thinner than the diamond blades I ordinarily use. I've been quite surprised. I fully intend to continue using these blades. They're awesome.
Was this helpful?
1
0
Lives up to the hype
Quality :
5
Value :
5
Seeds Program Review
(What's this)
Industrial diamonds have revolutionized stone cutting and polishing, and it's nice to see them making it into products for the ordinary contractor. I was skeptical, at first, that this blade would live up to the considerable hype. Then I used it. It cuts a little faster than an abrasive blade, but that's not its real advantage. It lasts and lasts and lasts. I didn't notice any change in the blade after cutting 1/4" steel repeatedly. I would have to set up a considerably harder test to really put this blade through its paces. Abrasive blades -- use them once, then throw them out. You'll have a hard time killing this blade. The sparks produced are numerous and very bright, suggesting higher temperatures, but this didn't translate into significant burning of the cut (no more than abrasives.) There was some buildup on the cuts, but nothing a quick pass with the grinder won't solve (same as for abrasives, really.) I have no idea how long this lasts, but you're going to get significant use out of it.
Was this helpful?
1
0
Works dry
Quality :
5
Value :
4
Seeds Program Review
(What's this)
The blade is made of an all steel construction, and is tipped with a diamond cutting surface, ensuring you get the same depth cut during the life of the blade. You'll need a 1 inch arbor for the blade, which is standard on a 12 inch saw. This blade was designed to last 75x the same amount of time a conventional abrasive disc will last, so this is perfect for larger jobs when you don't want any downtime with changing blades.
Was this helpful?
0
0
Fantastic Blade
Quality :
5
Value :
5
Seeds Program Review
(What's this)
I've been using this Milwaukee 14" Steelhead blade in my chop saw for a month or so, mostly cutting conduit, strut and threaded rod, and have been very happy with it's performance. Cuts are definitely both a good bit quicker and noticeably cleaner over your standard abrasive blade. The performance is great, but the real seller here is the cutting lifespan of these Steelhead blades, and the savings both in the cost over the dozens of abrasive blades that you'd go through in the span that just one of these will last, and in the hassle of always having a stack of those abrasive blades handy. Even if you don't see quite the 75x longer life quoted, at even $10 for a cheap abrasive blade locally, it's not difficult to do the math. These are available in 4", 4-1/2", 5", 6", 7", 12" and 14" diameters. I plan on grabbing one for each of my angle grinders. Give 'em a try!
Was this helpful?
2
0
