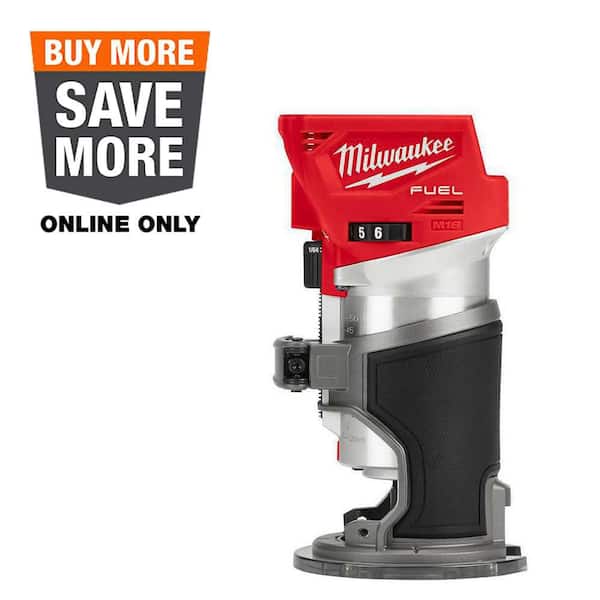

M18 FUEL 18V Lithium-Ion Brushless Cordless Compact Router (Tool-Only)
$19900
Pay $174.00 $199 when you open a new card.
Apply for a Home Depot Consumer Card- Delivers Corded Performance and best-in-class 31,000 RPM
- Fast Accurate Adjustments for precise applications
- Part of the M18™ System, with over 200+ cordless solutions
- View More Details
How to Get It
Product Overview
M18™ FUEL™ Compact Router
combines power, speed and accurate depth adjustments to deliver clean accurate cuts in a variety of materials and applications.
FEATURES 3 MILWAUKEE® EXCLUSIVE TECHNOLOGIES
POWERSTATE™ Brushless Motor, REDLINK PLUS™ Intelligence and REDLITHIUM™ Batteries
M18™ FUEL™ TECHNOLOGY
Generates the power of corded compact routers and higher SPM to complete cuts in hard woods
PERFORMANCE

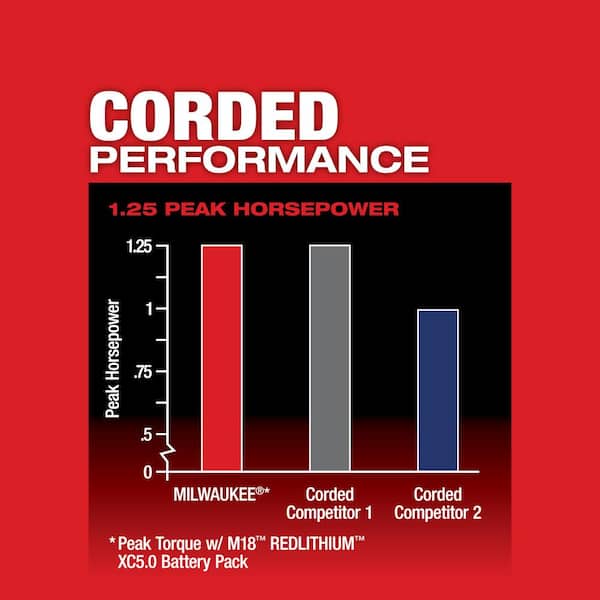

Generates 1.25 peak Horsepower when paired with an M18™ REDLITHIUM™ XC5.0 Battery
MORE PRECISE CUTS
Fast accurate adjustments reduce slop
LONGER RUN TIME
Cuts up to 250 Ft of 2/8” Roundover when using the M18™ REDLITHIUM XC5.0 Battery
SYSTEM COMPATIBILITY
Part of the M18™ System – Fits All M18™ Batteries
VARIABLE SPEED
Higher RPM provides the power and speed for clean, quality cuts in hard
DEPTH ADJUSTMENTS
Micro-Adjust Dial and Macro-Adjustment Button For Precise Cuts
DUAL LED LIGHTS
Illuminate your work surface
5-3/4” Sub-Baseplate
Accepts 1-1/4” template bushings
COMPATIBILITY
Compatible with the MILWAUKEE® Plunge Base and Offset Base
Warranty
Five year Tool Warranty
The MILWAUKEE M18 FUEL Compact Router combines power, speed and accurate depth adjustments to deliver clean accurate cuts in a variety of materials and applications. The compact router leverages the POWERSTATE Brushless Motor and REDLINK PLUS electronics. This delivers the power of corded 1.25 horsepower trim routers and best-in-class 31,000 RPM delivering users with power and speed for clean, quality cuts in hard materials. With an M18 REDLITHIUM XC5.0 battery, the cordless compact router cuts up to 250ft of 3/8" roundovers in red-oak, providing users with all-day run time with fewer trips to the charger. The handheld router is equipped with a micro-adjust dial and macro-adjust button, giving users fast and accurate depth adjustments for highly accurate work. A variable-speed dial with speed from 10,000 to 31,000 RPM gives users control in all applications. The trim router also features a sturdy 4" sub-base plate giving users stability, and dual-LED lights illuminate their work surface. The M18 FUEL Compact Router is compatible with a plunge base and an offset base (sold separately).
- POWERSTATE brushless motor: power of corded compact routers and higher SPM to complete cuts in hard woods
- REDLINK PLUS intelligence ensures maximum performance and protects from overloads, heating and over-discharge
- REDLITHIUM battery pack: delivers more work per charge and more work over the life of the pack than competitors
- Variable speed dial ranges between 10,000 RPM and 31,000 RPM, providing precise control for clean edges and details
- Macro adjust button allows for fast macro-adjustments and 1.5 in. of adjustable range
- Fine adjustment screw allows for precise adjustments beyond 1/64 in. increments
- Tool-free spindle lock provides easy bit changes with one 11/16 in. collet wrench
- Accepts 1/4 in. shank router bits
- LED light illuminates the cut surface
- Compatible with Milwaukee plunge base and offset base attachments (sold separately)
- Includes straight edge guide, dust extraction attachment and 5-3/4 in. sub-baseplate which accepts 1-1/4 in. template bushings
- Part of the M18 system, featuring over 150 plus tools
- Includes: one M18 FUEL compact router console, 1 fixed base, one 1/4 in. collet, 4 in. round sub-base plate, one 5-3/4 in. template sub-base plate, dust shroud, 1 straight edge guide, one 11/16 in. collet wrench, one 7/16 in. spindle wrench
- Shop All Milwaukee Tools
Compare Similar Wood Routers
 |  | Top Rated | Top Rated | |
| Brand | DEWALT | Milwaukee | Milwaukee | Makita |
| Name | 7 Amp Corded 1-1/4 HP Max Torque Variable Speed Compact Router with LEDs | M18 FUEL 18V Lithium-Ion Brushless Cordless Compact Router (Tool-Only) | M18 FUEL 18V Lithium-Ion Brushless Cordless Compact Router and Barrel Grip Jig Saw Set (Tool-Only) | 5.0 Ah 18V LXT Lithium-Ion Brushless Cordless Compact Router Kit |
| Price | $14900 | $19900 | $37900 | $41400 |
| Ratings | (234) | (2663) | (829) | (1528) |
| Cordless/Corded | Corded | Cordless | Cordless | Cordless |
| Router Base Type | Fixed Base | Fixed Base | Plunge Base | Fixed Base/Plunge Base |
| Amperage (amps) | 7 A | 0 A | 0 A | 5.0 |
| Horsepower (HP) | 1.25 hp | 0 hp | 0 hp | 0 hp |
| Collet Size (in.) | 1/4 in. | 1/4 in. | 1/4 in. | 1/4 in. |
| Power Tool Features | Depth Adjustment,Variable Speed | Compact,Depth Adjustment,Multiple Base,Variable Speed | Multiple Base,Variable Speed | Compact,Cushioned Grip,Depth Adjustment,Multiple Base,Variable Speed |
| Included | No Additional Items Included | Dust Collection | No Additional Items Included | No Additional Items Included |
| Portability | Handheld | Handheld | Handheld | Handheld |
| Motor Type | Brushless | Brushless | Brushless | |
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
| Product Depth (in.) | 4.79 in | Product Height (in.) | 6.86 in |
|---|---|---|---|
| Product Width (in.) | 3.23 in |
Details
| Amperage (amps) | 0 A | Batteries Included | No |
|---|---|---|---|
| Battery Amp Hours | No Battery | Battery Power Type | Lithium Ion |
| Battery Size | 18-volt | Battery/Charger | Tool Only |
| Battery/Charger | Tool Only | Charger Included | Charger Not Included |
| Collet Size (in.) | 1/4 in. | Color Family | Black |
| Condition | New | Cordless Tool Type | Router |
| Cordless/Corded | Cordless | Horsepower (HP) | 0 hp |
| Included | Dust Collection | Motor Type | Brushless |
| Number of Total Batteries Included | 0 | Portability | Handheld |
| Power Tool Features | Compact,Depth Adjustment,Multiple Base,Variable Speed | Product Weight (lb.) | 2.95 lb |
| Returnable | 2-Day | Router Base Type | Fixed Base |
| Tool Only| Kit | Tool Only | Voltage (volts) | 18 |
Warranty / Certifications
| Certifications and Listings | UL Listed | Manufacturer Warranty | 5 Year Warranty on Tool |
|---|
Questions & Answers
Typical questions asked about products:
- Is the product durable?
- Is the product easy to use?
- What are the dimensions of the product?
Customer Reviews
Jul 4, 2022
Compact router
Powerful, precise and easy to use. We bought one for a university design woodshop and have quickly bought another three to replace our older chorded palm routers. Very pleased with these.
by
Customer review from milwaukeetool.comJun 20, 2022
Great New Addition
Compact design makes it easy to keep control. The fine tune adjustable head is a great accessory. I dont do wood working projects often but, this thing with new blades cuts like hit knife through butter and its easy to handle.
by
Customer review from milwaukeetool.comJun 18, 2022
An AMAZING tool and addiction to my wood shop
Way more than I could have expected! Great improvement to my 40 year old B&D fixed base, corded router!!
The best feature, in my opinion, is the sawdust collection adapter!! My wood work shop is in my basement and I was spending at least 15 to 20 minutes of vacuuming clean up after using the old router.
The Milwaukee compact cordless router with the dust collection adapter and a regular shop vac eliminated ALL sawdust !!!!
Amazing little tool!
Much quieter than the old router as well !!
by
Customer review from milwaukeetool.comMay 9, 2022
Put it thru its paces!
Kept of with the demands of the cabinetry work i was performing
by
Customer review from milwaukeetool.comApr 30, 2022
Offset base.
The four star review is because of the following. I also purchased the offset base, and when using that attachment you must have a thicker base. Or you have no room for depth adjustment of your bit.
by
Customer review from milwaukeetool.comApr 27, 2022
Powerful charger
The Milwaukee M18/M12 charger is small but mighty. Packs a pinch. Great for all my battery Milwaukee tools!
by
Apr 10, 2022
M18 Router
Great tool, use it for cutting out windows and door sheathing as well as regular edge contouring of edges
by
Customer review from milwaukeetool.comApr 9, 2022
Compact and strong little machine
Literally just used it for the first time 20 minutes ago on some knotted redwood. Did a cove and bead cut and lots of power. Did not skip a beat. Cut through the knots and came out a perfect cut. Wonderful tool for my collection.
by
Customer review from milwaukeetool.comMar 18, 2022
Handy
Great for doing hobby like projects. Works very well
by
Customer review from milwaukeetool.comMar 11, 2022
Great little router
Great router strong enough for all the task i have thrown at it. My only gripe is the grip is coming off
by
Customer review from milwaukeetool.com
