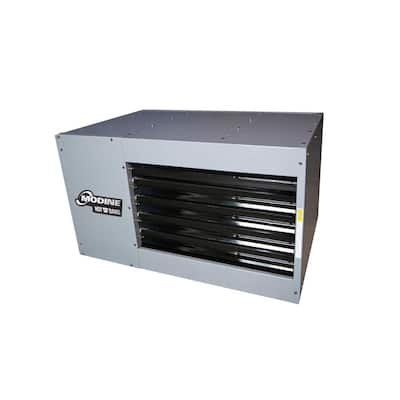

With a compact, low-profile design, mount this Modine Hot Dawg 125,000 BTU Natural Gas Garage Ceiling Heater where space is at a premium. It delivers warmth to your residential garage or commercial/industrial areas. This ceiling heater offers an interrupted spark ignition and piping versatility from either the left or right side.
Produces up to 125,000 BTU/hour to keep you warm and comfortable on cold days
Sound Pressure Level dBA 58 at 10ft and 57 at 15ft
Can be converted to LP (propane) gas with purchase of model# M53081 internet# 202812677
Permanently-lubricated motor for trouble-free operation
Low-profile design great for tight spaces
CSA listed
Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide for more details
For model sizes 100-125, the units are designed to be suspended by threaded rod without the use of brackets
Q:Can this be run on fan only no heat for air circulation? Also how far will it blow heat or should I go with the blower model for 44’?
by|Aug 20, 2022
1 Answer
Answer This Question
A: The fan used in this series of Modine units is not intended to distribute heat any significant distance. The fan is designed into the product to make sure there is adequate flow of air across the heat exchanger so that it does not build up and cause the unit to overheat. The distribution of heat is accomplished by the same principal used by a wood stove. Heat chases cold. The units with the external squirrel cage blower are designed to move air much greater distances. However 44’ is a tall order without duct work. If you look at the Use and Care Manual for this model you will find informational graphs on the blower performance. The next size up would be the PDP series. That series has many external blower options. Each of those models can be special ordered with different motor ratings and pulley sizes to achieve the desired air volume and velocity. For example these are the styles used in smaller airplane hangars or when the unit heater is going to feed duct work.
by|Aug 22, 2022
Q:Can i know if it have a loud voice or a low voice because i am looking for something with low noise ?
by|Nov 10, 2021
1 Answer
Answer This Question
A:Â This is a residential version of a commercial unit heater. As such it was not designed to be particularly quiet. But as describing something as quiet or loud is subjective let me offer you some precise ratings. This unit has been rated as producing 58 decibels of sound when measured from 10 feet away. And the immitted sound has been measured at 57 decibels at a distance of 15 feet. If you look at a decibel equivalent chart you will find that most describe the sound level of 50-60 decibels as similar to the sound of normal spoken conversation, heavy rainfall or the sound of a refrigerator running.
by|Nov 10, 2021
Q:Modine 125k btu - high altitude inquiry
by|Feb 5, 2021
2 Answers
Answer This Question
A:Â If you look under the header "Info and Guides" on the Home Depot product listing page you will find a PDF labeled instructions. Discussion of high altitude adjustment an kits begins on page 13. It indicates that at 6000 feet above sea level you would need kit 68408. That kit can be ordered no charge with your unit. Modine does not factory install high altitude kits on these units they must be installed in the field. The vast majority of units sold are the standard models. However, if you want to custom configure a unit as a factory special order, you could do that. Options would include two stage gas valve, stainless steel heat exchanger, sealed combustion, and voltages other than 120. If you want to give me a call I will gladly email you the Modine factory list price sheet which will list these options. Please note The Home Depot currently does not accept special orders on line so any such order would need to be place through a store. Chris 978 651 3301
by|Feb 6, 2021
A:Â Mine was propane, so the first thing I had to do was order a high altitude (5600') conversion kit because they sent me a natural gas unit. I then had to purchase a 125V 22 amp in line thermostat. I ordered a kit for hanging the furnace so I could swivel the whole furnace in the direction I wanted. When it was all installed I could not get it to work and finally found I had to make a jumper for the heater control board from the W to R terminals. This allowed the heater to ignite and cycle thru all the modes.
by|Apr 1, 2021
Q:Is this a two stage heater
by|Nov 11, 2018
0 Answer
Answer This Question
Showing 1-4 of 12
Customer Reviews
4.4 out of 5
(13)
4.4
out of 13 reviews
75% recommend this product
511
40
30
20
12
Filter by:
Showing 1-10 of 13 reviews
Jan 30, 2018
This is my 2nd hot dawg, first one was installed on 2003 and is still working flawlessly. This o...
This is my 2nd hot dawg, first one was installed on 2003 and is still working flawlessly. This one replaced a beacon morris and what an improvement. Both units start up nicely and distribute heat quickly and evenly.
by
Verified Purchase
Recommended
1 found this review helpful
Dec 21, 2022
What a piece of sh
This is the second one we've bought and it still doesn't work not happy
by
Verified Purchase
Oct 25, 2021
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by
Apr 1, 2021
It’s probably more heater than I needed but heats up...
It’s probably more heater than I needed but heats up my garage in about 5-7 minutes and maintains and even steady heat and has to cycle not to often. I had a bit of a time figuring out the line voltage thermostat because I had to put a jumper wire in the control board of the heater
to make the heater work and cycle thru the different stages of operation but once I figured that out, I works beautifully!
by
Verified Purchase
Mar 19, 2021
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by
Verified Purchase
Feb 17, 2021
Very pleased with it
Very pleased with it
by
Verified Purchase
Recommended
Jan 15, 2021
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by
Verified Purchase
Dec 4, 2020
This heater will put out the heat! Heats a...
This heater will put out the heat! Heats a 1000 square foot uninsulated shop with no problem. Great heater and I would recommend it highly!
