Model # LC2040L1200

Internet #202315497

Store SKU #523461

Store SO SKU #516939

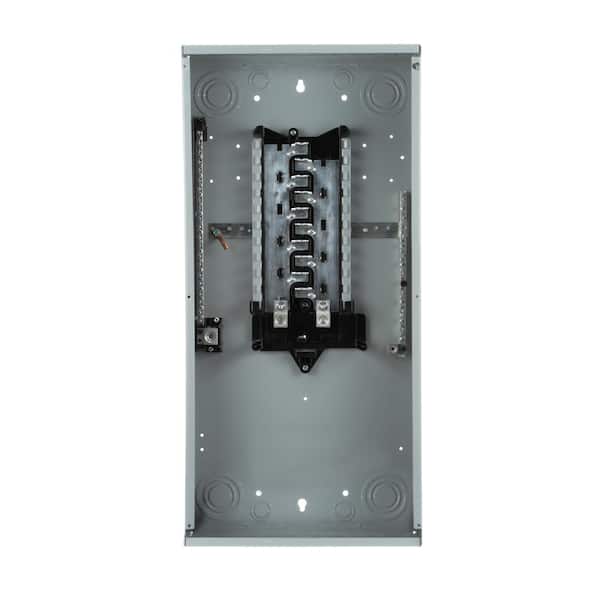

Murray 200 Amp 20-Space 40-Circuit Main Lug Load Center
0040892009651

Murray

200 Amp 20-Space 40-Circuit Main Lug Load Center

  • For use with Service or Non-Service Entrance Applications
  • Use with residential / commerical metering equipment applications
  • New split neutral insulated bars
$ 87 97
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • For use with Service or Non-Service Entrance Applications
  • Use with residential / commerical metering equipment applications
  • New split neutral insulated bars
Murray products have a rich tradition of quality and reliability that still lives on today. At the heart of the Murray offering is the Rock Solid load center – designed for those customers that prefer an out-board neutral design and metal base pan for installing breakers. The Rock Solid load center and Murray products remain an important part of the Siemens portfolio. Murray Rock Solid Load Centers are the highest quality, most versatile design in the industry.
  • Single phase, 200 Amp main lug load center with 20 spaces/40 circuits
  • Swiss cheese style neutral bars provide multiple 1/0 connection points
  • Copper bus bar for excellent conductivity
  • All units include factory installed ground bar and isolated neutral
  • With the use of the included bonding strap, ground bars and neutral bars can be bonded for service entrance applications
  • Outboard neutral and ground bars allow for all neutral and ground connections to be located away from breaker connections, making for a neat, clean installation
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Combination head screw on trim and upper pan screws provide installation flexibility
  • All devices are convertible from main lug to main breaker or vice versa with the addition of main breaker or main lug kits
  • All main breakers are straight in wired – no back feeding required
  • A rigid, sturdy base pan with metal hook rails provides the most rugged breaker connection in the industry
  • All indoor rock solid load centers are invertible for bottom feed applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Learn More About Electrical Panels Here in our Buying Guide.

Product Overview

  • For use with Service or Non-Service Entrance Applications
  • Use with residential / commerical metering equipment applications
  • New split neutral insulated bars
Model #: LC2040L1200
Sku #: 523461
Internet #: 202315497

Murray products have a rich tradition of quality and reliability that still lives on today. At the heart of the Murray offering is the Rock Solid load center – designed for those customers that prefer an out-board neutral design and metal base pan for installing breakers. The Rock Solid load center and Murray products remain an important part of the Siemens portfolio. Murray Rock Solid Load Centers are the highest quality, most versatile design in the industry.

  • Single phase, 200 Amp main lug load center with 20 spaces/40 circuits
  • Swiss cheese style neutral bars provide multiple 1/0 connection points
  • Copper bus bar for excellent conductivity
  • All units include factory installed ground bar and isolated neutral
  • With the use of the included bonding strap, ground bars and neutral bars can be bonded for service entrance applications
  • Outboard neutral and ground bars allow for all neutral and ground connections to be located away from breaker connections, making for a neat, clean installation
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Combination head screw on trim and upper pan screws provide installation flexibility
  • All devices are convertible from main lug to main breaker or vice versa with the addition of main breaker or main lug kits
  • All main breakers are straight in wired – no back feeding required
  • A rigid, sturdy base pan with metal hook rails provides the most rugged breaker connection in the industry
  • All indoor rock solid load centers are invertible for bottom feed applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$87.97
$109.91
$116.00
$122.21
Name 200 Amp 20-Space 40-Circuit Main Lug Load Center PL Series 200-Amp 12-Space 24-Circuit Main Lug Indoor Load Center QO 200 Amp 30-Space 30-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar 200 Amp 12 Space 24-Circuit Main Lug Outdoor Load Center
Brand Murray Siemens Square D Murray
Ratings (2) (0) (6) (0)
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
31.9
Load center height (in.)
6.0
Load center width (in.)
15.8

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
200
Mounting type
Plug In
Number of Phases
1
Number of Spaces
20
Product Weight (lb.)
29.2lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

Specifications

Dimensions

Load center depth (in.)
31.9
Load center height (in.)
6.0
Load center width (in.)
15.8

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
200
Mounting type
Plug In
Number of Phases
1
Number of Spaces
20
Product Weight (lb.)
29.2lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

Questions & Answers

Can this panel be used a s a sub panel coming out from the main meter? Also, is this for interior or exterior use?

Asked by: Vladimir
This unit is for interior use. If exterior use is needed, you would need to use LW2040L1200. As long as you have a main breaker further upstream feeding this panel, you can feed from that breaker to the main lugs of this unit and use as a sub panel.
Answered by: SIEMENS Product Expert
Date published: 2019-01-14

can i add a Murray MBK200M main breaker to this panel

can i add a Murray MBK200M main breaker to this panel
Asked by: jmsair
This one is a bit tricky. Murray Rock Solid NEMA 1 load centers went through a series revision in December of 2017. The previous series was not marked with an indicator. The new series is marked "Series A" on both the carton label and on the wiring diagram. In many cases enclosure sizes changed and that is the case with LC2040L1200. Th enclosure size changed from 30" to 24". As a result of the revision, main lug devices are no longer convertible to main breaker. Essentially if you purchase the previous version that has the 30" enclosure then yes is can be converted to main breaker using MBK200M. If you purchase the current "Series A" with a 24" enclosure then no it cannot be converted to main breaker.
Answered by: SIEMENS Product Expert
Date published: 2018-04-06

Can it be used in a commercial space?

Asked by: Jeff
Hi Jeff, Yes, this panel can be used in a commercial space as long as the incoming line is 120/240 Volt single phase service.
Answered by: SIEMENS Product Expert
Date published: 2016-10-21
  • y_2019, m_1, d_15, h_22CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_202315497, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 28ms
  • QUESTIONS, PRODUCT

Customer Reviews

200 Amp 20-Space 40-Circuit Main Lug Load Center is rated 4.0 out of 5 by 2.
Rated 5 out of 5 by from Worked great... Worked great
Date published: 2018-06-05
Rated 3 out of 5 by from Alumium bus bar is a little too fragile. I would... Alumium bus bar is a little too fragile. I would prefer copper bus bar at higher price.
Date published: 2017-01-24
