Pop-Up Drainage Emitter with Elbow for 4 in. Drain Pipes, Green Plastic

(261)Questions & Answers (55)
$1997
  • Discharges collected water at a point of release downstream
  • Elbow connects to 4 in. S&D and triple-wall pipe
  • Cover retracts securely to prevent entry of debris and rodents
  • View More Details
Store
0 in stock
caret

Product Details

Use the Pop-Up Drainage Emitter downstream to discharge water captured upstream and carried away from structures, erosion-prone landscapes, and poor drainage areas. The Pop-Up Drainage Emitter with Elbow connects to 4 in. sewer and drain pipe and 4 in. triple-wall pipe. As water pressure builds, cap "pops up" to release water at up to 56 GPM and closes when flow diminishes. Cap stays closed when not in use to prevent debris and rodents from entering and potentially clogging the drainage system. The flat profile blends discreetly into the surrounding landscape. Rounded contours on interior edges reduce the potential for clogging and internal ribs provide durability and strength. Flange design prevents turf overgrowth. Weep hole at bottom of elbow drains water left in pipes to prevent stagnation or freezing in cold weather. Cap and cover made of high-density polyethylene (HDPE); elbow made of polyvinyl chloride (PVC). Pop-Up Drainage Emitters are part of a complete drainage system used for stormwater management. They work with pipes, catch basin drains, channel drains, trench drains, and drain grates that filter, capture, and convey excess water to drain pipes; the pipes carry the water downstream to discharge with a Pop-Up Emitter, or to percolate into the ground with a dry well or infiltration trench. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success.
  • Provides a downstream point of release for water collected upstream
  • Install the Pop-Up Drainage Emitter at the lowest point in the drainage system; place in areas away from buildings, landscapes, and poor drainage areas
  • Elbow connects to 4 in. sewer and drain pipe and 4 in. triple-wall pipe, connects to other pipe types using appropriate adapters
  • Releases collected water up to 56 GPM
  • Supports pedestrian traffic including lawn tractors, when properly installed
  • Cap on cover pops up as high as 1 in. once water pressure builds and closes as flow diminishes; when not in use, cap stays closed to keep debris and rodents out of drain
  • Flange design prevents grass from growing over the cover
  • Small weep hole in elbow drains out any water in the pipe to prevent stagnation or freezing in cold weather
  • Flat profile design reduces trip hazard posed by open drain; closed position keeps emitter flush to the ground and safe from lawn mower blades. Rounded contours on interior edges reduce the potential for clogging and internal ribs provide durability and strength
  • Works with a complete drainage system to release collected stormwater runoff and standing water to a discharge point before it causes costly property damage
  • Position Pop-Up Emitter cover at ground level; connect elbow to 4 in. sewer and drain pipe or 4 in. triple-wall pipe underground
  • Comes with one Pop-Up Drainage Emitter and attached elbow
  • Cap and cover made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking. Elbow made of polyvinyl chloride (PVC) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • Use adapter (1241) to connect elbow to 3 in. & 4 in. single-wall corrugated pipes or 4 in. Sch. 40 pipe; use multiple Pop-Up Drainage Emitters for larger drainage problems
  • Capture and convey water upstream with a Catch Basin Drain, Low-Profile Adapter, Channel Drain, or Trench Drain connected to drain pipes. Use with a Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System to detain excess water and slowly release it into the ground
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
  • NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right
  • We're here to help! Use our free Home Drainage Center tool at ndspro.com/home-drainage and NDS Stormwater Drainage mobile app to find the right solution for your needs
  • We're here to help! Use our free Home Drainage Center tool at ndspro.com/home-drainage and NDS Stormwater Drainage mobile app to find the right solution for your needs
  • Landscapes Compatibility Chart
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

55Questions
caret
Q:Will the pop-up drainage emmitter work if I install it sideways? I am trying to angle the overflow into a concrete ditch.
by|Sep 18, 2023
1 Answer
Answer This Question

A:  Hi Melody, The Pop-Up Emitter is not designed to be installed on its side. For you application you may replace the Pop-Up Emitter with a 3" or 4" Round Grate.

by|Sep 19, 2023
    caret
    Q:Why is there a slot opening on the bottom of the elbow?
    by|Sep 6, 2023
    1 Answer
    Answer This Question

    A:  Hi Rick, the weep hole at bottom of elbow drains any residual water left in pipe to prevent stagnation or freezing in cold weather.

    by|Sep 7, 2023
      caret
      Q:Can this be painted to blend into landscape?
      by|Aug 2, 2023
      1 Answer
      Answer This Question

      A:  Hi Brian, the pop-up emitter is green to blend into the landscape no paint is required.

      by|Aug 15, 2023
        caret
        Q:Does this just snap on to the 4” corrugated copolymer black pipe
        by|Jul 29, 2023
        1 Answer
        Answer This Question

        A:  Hi S, to connect to single wall corrugated pipe you will need part# H1241

        by|Sep 27, 2023
          Showing 1-4 of 55
          caret

          Customer Reviews

          4.4 out of 5
          (261)
          • 4.4
            out of 261 reviews
          • 81% recommend this product
          Filter by:
          Showing 1-10 of 261 reviews
          Sep 17, 2023
          keep it maintained
          As long as you keep the line clean and maintained so debris doesn't build up inside your pipe it works great. put some 1-1.5 inch stone under the cutout so any excess water can drain out of your line.
          by
            • Recommended
            May 14, 2022
            One issue
            The cap does seem to come off the pipe pretty easily. I tapped and threaded in a 1/4 inch bolt to thumb tighten so it won't come off when mowing. Pretty easy 5 minute fix.
            by
              • Recommended
              1 found this review helpful
              Feb 18, 2021
              Excellent product!
              Excellent product!
              by
              • Verified Purchase
              • Recommended
              1 found this review helpful
              Apr 28, 2020
              Works well, but don't mow over it.
              This is a breeze to install and works well as a drain. However, don't mow over it. The mower will suck up the cap and destroy it.
              by
                • Recommended
                10 found this review helpful
                Nov 24, 2015
                Works Well
                I didn't buy this pop-up drainage emitter to use for my downspouts, which certainly would work too. I used it to connect to the pipe that comes from my sump pump. The is only 2 inch diameter, so I had to use a reducer, but it works very well. Some reviews mention that it might get damaged but the lawn mower, but if you put it level with the soil it can't get sucked up high enough to get damaged by the mower. I certainly haven't had any problems. I like the product because it is easy to install and it looks good, is not obvious in the grass. Since it automatically closes it also prevents dirt and leaves from falling into the drainage pipe.
                by
                • Recommended
                15 found this review helpful
                Nov 11, 2015
                Works great
                I installed the NDS 4 in Drainage Emitter cover on an underground gutter drain. We were having problems with debris getting through the grate and clogging up the drain. This solved the problem. I initially had problems with a real heavy rain washing the cover off and our dog pulling it off. That was easily solved with a single self-taping screw. I provided some photos.
                by
                • Recommended
                10 found this review helpful
                Oct 31, 2015
                The best part of the drainage system.
                The NDS 4 in. pop-Up Drainage Emitters with Elbow works very well. It rained after 8 hours after installation, and I have added a short video to demonstrate how well it works. Thanks NDS, for your technology. it really works very well.
                by
                • DIY
                • Recommended
                17 found this review helpful
                Sep 18, 2023
                Broke within a year. As a home inspector I see...
                Broke within a year. As a home inspector I see them broken all the time. The cover will eventually break off from the thin plastic that holds it. Good thing they're inexpensive because it's definitely cheap.
                by
                • Verified Purchase
                Aug 30, 2023
                by
                • Verified Purchase
                Aug 30, 2023
                Easy to install. Works very well. Popped up properly when we had heavy rain.
                by
                • Verified Purchase
                1 found this review helpful
                Showing 1-10 of 261 reviews
              • PVC S&D 90° Long-Turn Elbow, 4 in. Hub X Hub
                (100)
                $738

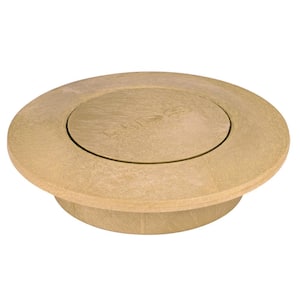

              • Pop-Up Drainage Emitter for 3 in. and 4 in. Drain Fittings, Green Plastic
