- Make a 90° turn in your Spee-D Channel Drainage system layout
- Drains moderate flows from driveway, patio, pool area, courtyard
- Create a water-tight connection with solvent-weld PVC glue
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

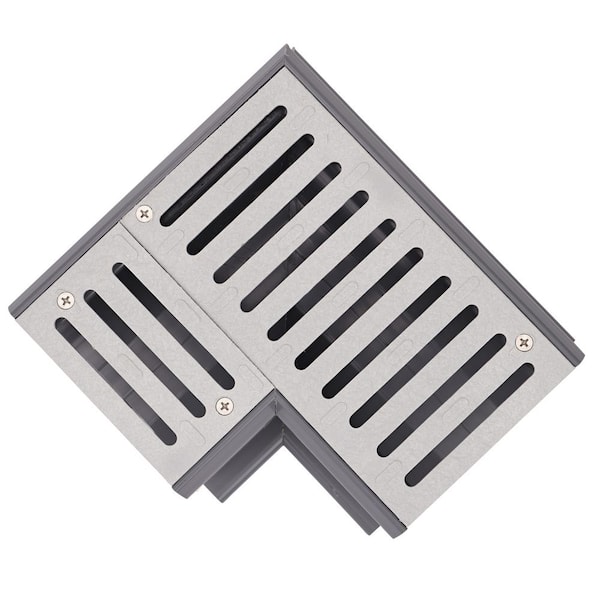

Add a turn left or right in your Spee-D Channel drain layout. The Spee-D Channel Drain 90° Elbow and Grate connects to Spee-D Channel Drains with a coupling. Channel is made of polyvinyl chloride and can be solvent-welded with PVC glue. Grate is made of polyethylene treated with UV inhibitors. Use with the Spee-D Channel Drain, part of the NDS Profile Channel series, to drain moderate flows on driveways, concrete and paver patios, pool areas, courtyards and walkways to prevent slippery mildew growth, concrete staining and costly structural damage. Channel drains, also called trench drains, are long, narrow drains used for surface drainage of hardscapes. As part of a complete drainage system, channel drains collect and convey water to drain pipes, which carry the water downstream to discharge with a pop-up emitter or to percolate into the ground with a dry well or infiltration trench. NDS channel and trench drains are designed for durability, drainage and performance and are a proven alternative to traditional concrete drains. Find the best channel drain or trench drain system for your needs with the NDS Channel Drain Selector tool, choose-the-right-channel-drain. html., NDS is the leader in stormwater management solutions, the preferred choice of professionals and the largest supplier of channel drains in North America. Our commitment is to provide proven products, tools and expert support to help you get the job done right.
Highlights
- Add a 90° turn left or right in your Spee-D channel drainage system layout
- Spee-D channel drain, part of the NDS profile channel series, captures moderate flows of surface water from driveways, concrete and paver patios, pool areas, courtyards and walkways
- Connect to Spee-D channel drainage system with coupling
- 16.8 sq. in. per linear ft. open surface area. 51 GPM per ft. flow rate
- Rated for NDS class B loads of (up to 175 psi) when properly installed-recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph; ADA compliant
- Channel drain and drain grate with 90° elbow channel makes it easy to customize layout
- Available in gray
- Comes with 1 Spee-D channel drain 90° elbow and drain grate
- Use with the Spee-D channel drainage system to collect and direct water to drain pipes for proper release downstream
- Create a water-tight connection using solvent-weld PVC glue
- Removable grate makes it easy to clean debris from channel for maintenance
- Spee-D channel made of polyvinyl chloride (PVC) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking grate made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
- Use with Spee-D channel drains, tees, crosses and outlets
- Use with a pop-up drainage emitter to discharge collected water at a point of release downstream use with a Flo-Well dry well system and EZ drain gravel-free French drain system to detain excess water and slowly release it into the ground
- Onsite storm water management protects the watershed down-stream and limits excess runoff which can lead to negative impacts such as erosion, pollution and flooding
- NDS is the preferred choice of professionals, the largest supplier of channel drains in North America and the leader in stormwater management with proven products, tools and support to help you get the job done right
- We're here to help, use the NDS channel drain selector tool to find the best channel or trench drain system for your needs
- Hardscapes Compatibility Chart
- Return Policy
Product Information
Specifications
Dimensions
Max. Compatible Pipe Size (In.) | 4" |
|---|---|
Min. Compatible Pipe Size (In.) | 2" |
Product Depth (in.) | 3.75 in |
Product Length (in.) | 8.25 in |
Product Width (in.) | 7.65 in |
Details
Color/Finish | Gray |
|---|---|
Compatible Area of Use | Driveway, Patio, Pool Deck, Walkways |
Material | Plastic |
Maximum Working Temperature (F) | 140 |
Minimum working temperature (F) | 30 |
Pack Size | 1 |
Pipe or Fitting Product Type | Accessory |
Product Weight (lb.) | 1.3 lb |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it |
|---|
Questions & Answers
What width of NDS channel does this correspond to?
This is for the 4" Spee-d channel drain system
Why doesn?t any HD stores carry NDS 90degree spee-D corner and grate ? U carry everything else in NDS line no one makes a turn using nds channel drains ??? Crazy
Hi Rick, every location will vary. If the distributor does not carry the product in stock, the distributor can always special order the product.
Is is for the 3 pro series NDS drains? Yes or no? IT SAYS FOR 2”-4” but how can it fit both???
This is designed to fit the NDS Spee-D channel drain. It will not fit the 3" pro series.
Viewing 1-3 of 3
Customer Reviews
4.9 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for medium-duty traffic areas, this 90° elbow channel drain efficiently manages water runoff, preventing costly damage. | Ideal for moderate water flow drainage on driveways, patios, and walkways, ensuring efficient runoff management. | Ideal for moderate drainage needs, this 5 in. channel drain kit boasts 72 GPM flow rate and NDS Class B load rating. | Ideal for medium-duty traffic, this 90° elbow channel drain efficiently manages water flow, with UV-resistant construction. |
Flow Capacity | |||
51 GPM per ft. | 77 GPM per ft. | 72 GPM per ft. | 72 GPM per ft. |
Channel Width | |||
3 in. | 5 in. | 5 in. | |
Load Class | |||
NDS Class B (up to 175 psi) | NDS Class B (up to 175 psi) | NDS Class B | NDS Class B (up to 175 psi) |
Grate Material | |||
High-density polyethylene (HDPE) | High-density polyethylene (HDPE) | Polyethylene | High-density polyethylene (HDPE) |
UV Resistance | |||
