Internet #310671402

Model #DLE621203KSQBK

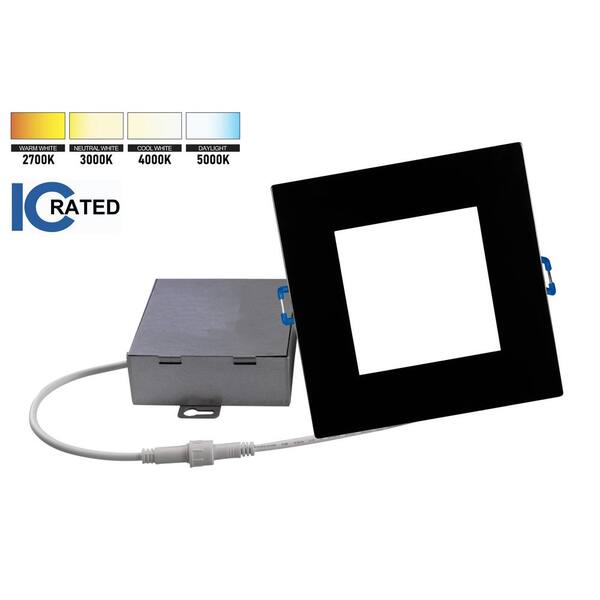

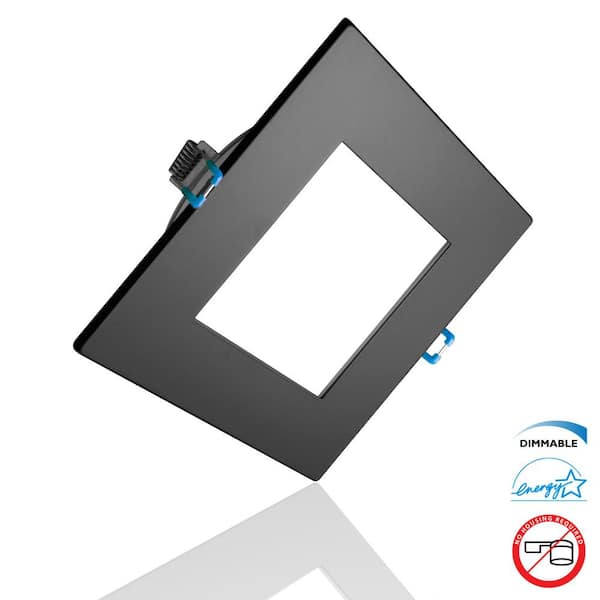

DLE Series 6 in. Square 3000K Black Integrated LED Recessed Canless Downlight with Trim

Frequently Bought Together

+
+
Price:
$4814

Product Overview

The DLE6 Edge Lit 6 in. Square LED Downlight creates an attractive visual aesthetic with a low profile that's incredibly easy to install. The edge-lit technology uses a reflective light guide panel that disperses light through a diffused lens, making it a practical, economical, and energy efficient solution for lighting your home or office. This high-performance downlight features 92 CRI, with an R9 value exceeding 50, making the DLE6 among the highest rated LED light fixtures in terms of light output quality. Installation no longer requires a recessed housing, but rather a simple 6.25 in. in diameter cut-out in the ceiling using the provided template. The ultra-thin fixture depth (less than 1 in.) and off-board driver (included) allows for a more flexible installation and increased lifespan with superior heat management. The DLE6 features adjustable spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Adding light in tight spaces such as living rooms, hallways, bathrooms, basements, entryways, porches, and utility closets just got easier. The DLE6 is ENERGY STAR rated, Insulation Contact rated (IC-rated), Airtight, Damp-location rated, and protected by NICOR's 5-Year Limited Warranty. The DLE6 comes ready to install and use right out of the box, no other components are required.
  • California residents
  • Includes LED downlight module, off-board driver, and black faceplate
  • Includes 6.25 in. cut-out template
  • Installs directly into the ceiling, no housing or junction box needed
  • 3000K color temperature
  • 879 Lumens
  • 10.8-Watt
  • 120-Volt AC
  • Dimmable down to 5% using standard LED dimmers
  • Lifetime rated for over 54,000 hours
  • Insulation contact rated (IC-rated)
  • Aged copper, black, and nickel faceplates sold separately
  • ENERGY STAR rated, airtight, and damp-location rated
  • 5-year limited warranty



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual Aperture Width (in.)
5.5
Assembled Depth (in.)
1.375 in
Assembled Height (in.)
1.375 in
Assembled Width (in.)
6.9 in
Housing Height (in.)
2
Maximum Cutout Size (in.)
6.25
Nominal Lens Aperture Size
5 in.,6 in.
Trim Size (Width)
7 in.

Details

Actual Color Temperature (K)
3000
Color Family
Black
Color Rendering Index (CRI)
92
Color Temperature
Soft White
Commercial/Residential
Residential
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Damp Rated
Features
Air Tight,Dimmable,Junction Box Compatible,Low Glare,Retrofit,Shallow,Sloped Ceiling
Fixture Color/Finish
Powder Coated Black
Fixture Material
Cast Aluminum
IC Rating
IC Rated
Included
Light Bulb(s),Remodel Clips,Stencil,Wiring Connectors
Indoor/Outdoor
Indoor
Integrated LED Type
Standard
Lumens
879
Maximum Bulb Wattage
10.8
New Construction or Remodel
New Construction,Remodel
Package Quantity
1
Product Weight (lb.)
1.35
Recessed Lighting Type
Canless
Returnable
180-Day
Style
Classic,Minimalist,Modern
Trim Type
Decorative,Square,Ultra-Thin
Voltage
Line Voltage
Watt Equivalence
65

Warranty / Certifications

Certifications and Listings
ETL Listed,Energy Star,IC Rated
Manufacturer Warranty
5 Year Limited Warranty

Questions & Answers

5Questions5Answers

I don’t like the aesthetics of the DSK or DLF models as much. How difficult is it to remove a J box?

Asked by AllisonRo October 28, 2020
1
Answer

We recommend consulting a electrician. They would be able to better assist you with this question.

What do you do if there is a j-box in your ceiling? Is it still possible to use this light?

Asked by October 27, 2020
1
Answer

You would have to remove the J-box to use this light. If you are looking for a light to retrofit into your j-box, we recommend looking at our DSK or DLF product lines (also on Home Depot).

Is it possible to purchase the trim without the light?

Asked by CityGirl April 19, 2020
1
Answer

You can, but the trim is designed specifically for this item. Try searching for part# DLE6-TR-SQ-BK.

do you make a mud ring for this product?

Asked by RK July 26, 2020
1
Answer

We do not make a mud ring for this product. The closest thing we have is a metal rough in template.

Is the face place metal or plastic? What about for the copper option? The white option? What i...

Asked by AllisonRo October 27, 2020
1
Answer

The white light is Aluminum and the Copper, Nickel, and Black faceplates are steel.

Customer Reviews

  • 5 Customer Reviews
  • 5 out of 5 stars overall
100% of customers recommended.
Overall Ratings
5star-icon(5)
4star-icon(0)
3star-icon(0)
2star-icon(0)
1star-icon(0)
Sort By:
Was this helpful?
0
0
Great low profile fixture and super bright. Especially like the fact that when connected to an ex...
Great low profile fixture and super bright. Especially like the fact that when connected to an existing overhead fixture circuit on a dimmer, this light will remain on very low while the overhead is basically off in the lowest dimmer setting. Makes for a perfect night light. The trim ring looks good with the natural wood cabinet.
Was this helpful?
0
0
Great looking, high quality, and very easy installation. 2700K is...
Great looking, high quality, and very easy installation. 2700K is perfect for kitchen, I also have 5000K in the bathroom, which is better than a daylight
Was this helpful?
0
0
Easy to install. Junction boxes have quick connects installed and...
Easy to install. Junction boxes have quick connects installed and allow for daisy chaining. The springs are extremely strong. Nice brightness and work off dimmer switch.
Was this helpful?
0
0
5000k LED bulbs really make a daylight in any space...
5000k LED bulbs really make a daylight in any space and nickle rims make it look super modern and elegant
