Internet #310675301

Model #DLG56-10-120-3K-BK

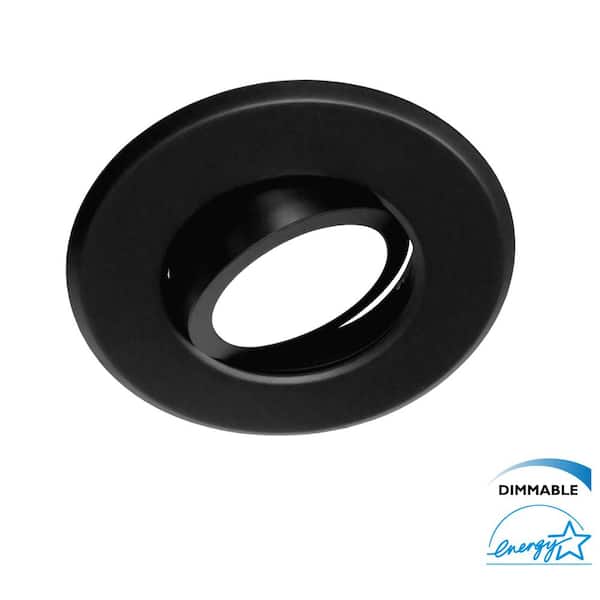

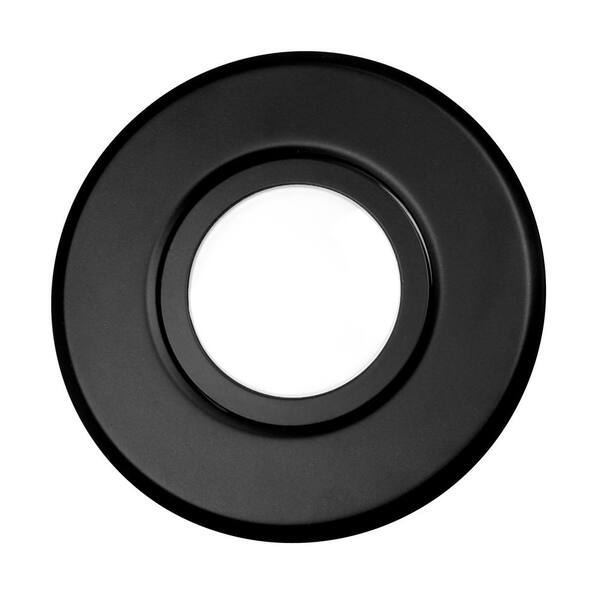

DLG56 Series 6 in. 3000K Black Integrated LED Recessed Gimbal Trim

$8584

Product Overview

The NICOR DLG56 is the perfect LED Downlight solution for directional accent lighting. This 5 in./6 in. Recessed LED Downlight is designed to fit both 5 in. and 6 in. recessed housings. The DLG56 features Integrated LED's and offers an aesthetic appeal for both wall lighting and sloped ceilings. With a 360 rotation and 35 tilt range of motion, the twist-and-turn design allows for fine adjustment of the gimbal position. The DLG56 allows you to light up areas where a standard recessed downlight simply cannot. The durable steel constructed DLG56 features an aluminum heatsink to keep the downlight running cool. The DLG56 is dimmable (down to 10%) with standard LED dimmers and features high performance LED's to produce a Color Rendering Index (CRI) rating of 94 with an astonishing R9 value of over 50 This means that under this light, your reds will be redder and your blues will be bluer no matter which color temperature you choose (2700K, 3000K, or 4000K). The DLG56 includes a Medium (Edison) base and Quick-Connect adapters to make installation a breeze. On top of everything, the DLG56 is compatible with Sloped Housings, ENERGY STAR rated, Title 24 compliant, Damp-Location rated, CEC compliant, UL Classified, and protected by and industry best 5-year limited warranty.
  • California residents
  • Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
  • Polycarbonate diffuser and reflector cone create a uniform light distribution that reduces glare
  • Durable stamped steel construction with die cast aluminum heat sink routes heat away from electrical components
  • Thermally protected, high efficiency driver standard
  • Operating temperature rating of 0°F to 120°F (-18°C 49°C)
  • Dimmable to 10% with standard LED dimmers
  • Quick and easy installation with a screw-in Edison base (GU24 socket string available) and friction clip mounting system
  • L70 rated for greater than 36,000 hours
  • Fully adjustable rotation and 35° tilt
  • Title 24 compliant
  • Protected by NICOR's 5 year limited warranty
  • ENERGY STAR
  • Fits both 5 in. and 6 in. housings
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Recessed Lighting Trims

DLG56 Series 6 in. 2700K Nickel Integrated LED Recessed Gimbal Trim
current product
DLG56 Series 6 in. 3000K Black Integrated LED Recessed Gimbal Trim
5/6 in. 3000K Oil Rubbed Bronze  Integrated LED Recessed Gimbal Trim3 in. 3000K Black Trim Recessed Panel with Integrated LED Driver
BrandNICORNICORNICORIllume Lighting
NameDLG56 Series 6 in. 2700K Nickel Integrated LED Recessed Gimbal TrimDLG56 Series 6 in. 3000K Black Integrated LED Recessed Gimbal Trim5/6 in. 3000K Oil Rubbed Bronze Integrated LED Recessed Gimbal Trim3 in. 3000K Black Trim Recessed Panel with Integrated LED Driver
Price
$8490
$8584
$8700
$10800
Ratings
(1)
(1)
(1)
(0)
Nominal Lens Aperture Size6 in.6 in.5 in.,6 in.2 in.
Trim TypeDecorative,Gimbal,Wall WashDecorative,Gimbal,Wall WashDecorative,Gimbal,Wall WashUltra-Thin
Recessed Lighting TypeHousing RequiredHousing RequiredHousing RequiredCanless
Indoor/OutdoorIndoorIndoorIndoorIndoor
Damp/Wet RatingDry RatedDry RatedDry RatedDry Rated
New Construction or RemodelRemodelRemodelRemodelNew Construction,Remodel
Package Quantity1111
Compatible Bulb TypeIntegrated LEDIntegrated LEDIntegrated LEDIntegrated LED
IC RatingNon-IC RatedNon-IC RatedNon-IC RatedNon-IC Rated
View ProductView ProductView ProductView Product

Specifications

Dimensions

Actual Aperture Width (in.)
6
Assembled Depth (in.)
3.3 in
Assembled Height (in.)
3.3 in
Assembled Width (in.)
7.125 in
Housing Height (in.)
4
Maximum Cutout Size (in.)
6.25
Nominal Lens Aperture Size
6 in.
Trim Size (Width)
7.25 in.

Details

Actual Color Temperature (K)
3000
Color Family
Black
Color Rendering Index (CRI)
94
Color Temperature
Soft White
Commercial/Residential
Residential
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Dry Rated
Features
Adjustable,Dimmable,Low Glare,Retrofit
Fixture Color/Finish
Powder Coated Black
Fixture Material
Stamped Steel
IC Rating
Non-IC Rated
Included
Light Bulb(s),Remodel Clips,Wiring Connectors
Indoor/Outdoor
Indoor
Integrated LED Type
Standard
Lumens
1034
Maximum Bulb Wattage
12.5
New Construction or Remodel
Remodel
Package Quantity
1
Product Weight (lb.)
1.4
Recessed Lighting Type
Housing Required
Returnable
180-Day
Style
Classic,Minimalist,Modern
Trim Type
Decorative,Gimbal,Wall Wash
Voltage
Line Voltage
Watt Equivalence
100

Warranty / Certifications

Certifications and Listings
Energy Star,cULus Listed
Manufacturer Warranty
5 Year Limited Warranty
