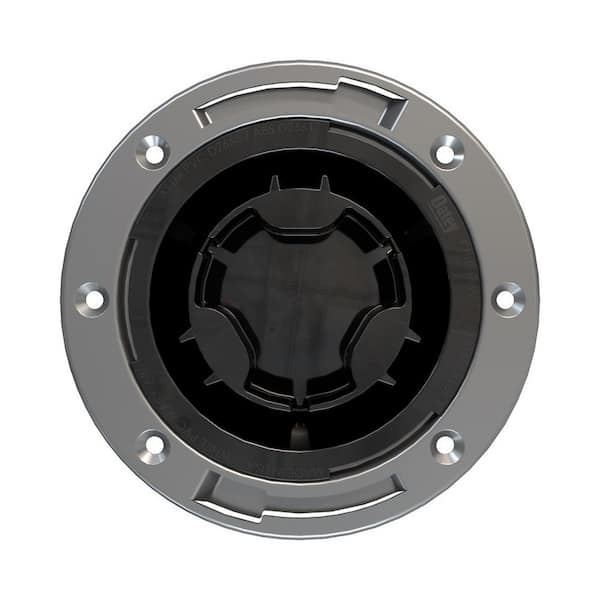

Fast Set 4 in. ABS Hub Toilet Flange with Test Cap and Stainless Steel Ring

  • Toilet flange is made of ABS material to withstand heavy use
  • Metal ring on ABS flange resists corrosion and tarnishing
  • Designed to fit over a 3 in. ABS pipe
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Closed toilet flange

Testable Closet Flanges

Made with a test cap that easily and cleanly breaks out, eliminating the possibility of falling down the DWV line.

Metal toilet flange ring flush with the bathroom floor

Open Closet Flanges

Ring provides a crack-resistant connection between the water closet outlet and plumbing system that is flush with the floor.

ABS toilet flange with metal ring

Spigot Fit Closet Flanges

Spigot fit sits flush with the floor and allows for a quick and easy connection to the piping system.

PVC open toilet flange

Open

The open toilet flange requires a test plug or cap for pressure testing and is primarily used in repair work.

PVC closed toilet flange

Closed

The closed toilet flange with pre-installed ability for pressure testing is primarily used in new construction.

PVC with metal ring flange

Specialty

The 45-degree and offset specialty toilet flanges allow for margin of error in drain/pipe alignment.

ABS repair flange

Repair

The repair toilet flange replaces broken cast iron flanges.

Flange fitting inside pipe

Repair/Remodel Connection

Inside fit. Not code approved.

Flange fitting outside pipe

Inside/Outside Connection

Inside/ouside fit.

Flange fitting outside pipe

Hub Connection

Outside fit.

Flange fitting with spigot connection

Spigot Connection

Same size as pipe. Requires fitting.

Flange fitting pipe offset

Offset Connection

Inside/outside fit.

Flange fitting inside pipe

Twist-N-Set Connection

Inside fit. Not code approved.

Oatey drains and closet flanges come in the widest variety of sizes, materials and configurations. PVC, cast iron, ABS, no matter what your shower drain or closet flange need, Oatey has the part you need to do the job right. All drains, flanges, strainers and cleanouts are made with precision to ensure a durable installation.
  • Fits over 4in. ABS pipe
  • For use with existing flange repairs or new toilet installations
  • Remove test cap after testing
  • Flange base is ABS
  • Flange ring is metal
  • Easy to Install



  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar ABS Fittings

current product
Fast Set 4 in. ABS Hub Toilet Flange with Test Cap and Stainless Steel Ring
Fast Set 4 in. ABS Open Hub Spigot Toilet Flange with Metal RingFast Set 3 in. Outside Fit 4 in. Inside Fit ABS Hub Toilet Flange with Test Cap and Stainless Steel RingTwist-N-Set 4 in. ABS Open Toilet Flange
BrandOateyOateyOateyOatey
NameFast Set 4 in. ABS Hub Toilet Flange with Test Cap and Stainless Steel RingFast Set 4 in. ABS Open Hub Spigot Toilet Flange with Metal RingFast Set 3 in. Outside Fit 4 in. Inside Fit ABS Hub Toilet Flange with Test Cap and Stainless Steel RingTwist-N-Set 4 in. ABS Open Toilet Flange
Price
Ratings
(37)
(15)
(31)
(33)
Fitting 1 size4"3"3"4"
Fitting or Connector TypeFlangeConnectorFlangeFlange
ConnectivityPush FitThreadedHubThreaded
ApplicationSewageSewageSewageSewage
FeaturesLead FreeSelf-Sealing,ThreadedLead FreeCorrosion Resistant
Pack Size1111
MaterialAcrylonitrile Butadiene Styrene (ABS)Acrylonitrile Butadiene Styrene (ABS)Acrylonitrile Butadiene Styrene (ABS)Plastic
DWVDWVDWVOtherDual Rated
View ProductView ProductView ProductView Product
Closed toilet flange

Testable Closet Flanges

Made with a test cap that easily and cleanly breaks out, eliminating the possibility of falling down the DWV line.

Metal toilet flange ring flush with the bathroom floor

Open Closet Flanges

Ring provides a crack-resistant connection between the water closet outlet and plumbing system that is flush with the floor.

ABS toilet flange with metal ring

Spigot Fit Closet Flanges

Spigot fit sits flush with the floor and allows for a quick and easy connection to the piping system.

PVC open toilet flange

Open

The open toilet flange requires a test plug or cap for pressure testing and is primarily used in repair work.

PVC closed toilet flange

Closed

The closed toilet flange with pre-installed ability for pressure testing is primarily used in new construction.

PVC with metal ring flange

Specialty

The 45-degree and offset specialty toilet flanges allow for margin of error in drain/pipe alignment.

ABS repair flange

Repair

The repair toilet flange replaces broken cast iron flanges.

Flange fitting inside pipe

Repair/Remodel Connection

Inside fit. Not code approved.

Flange fitting outside pipe

Inside/Outside Connection

Inside/ouside fit.

Flange fitting outside pipe

Hub Connection

Outside fit.

Flange fitting with spigot connection

Spigot Connection

Same size as pipe. Requires fitting.

Flange fitting pipe offset

Offset Connection

Inside/outside fit.

Flange fitting inside pipe

Twist-N-Set Connection

Inside fit. Not code approved.

Specifications

Dimensions

Face size
7"
Fitting 1 size
4"
Product Height (in.)
2.7
Single Fitting Size
4"

Details

Application
Sewage
Color Family
Black
Color/Finish
Black
Compatible Pipe Material
ABS
Connectivity
Push Fit
DWV
DWV
Features
Lead Free
Fitting or Connector Type
Flange
Fitting/ Connector Collection
ABS
Material
Acrylonitrile Butadiene Styrene (ABS)
Maximum working pressure (psi)
5
Maximum Working Temperature (F)
104
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.883 lb
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 year limited

Questions & Answers

1Questions5Answers

Why does the metal ring turn. It should be stationary

Asked by Steve August 31, 2019
5
Answers

Hi Steve, it turns to allow you to adjust toilet stool position right before you tighten it. After you tighten bolts the ring will stop rotating and toilet stool with stay in one place (unless you will apply a lot of force). Hope it helps!
