$22.07
- Ideal for hiding an AAV
- Metal grille faceplate for optimum circulation of air
- Comes with 4 mounting brackets for easy installation
- View More Details
Product Details

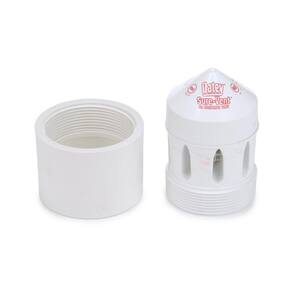

Oatey Sure-Vent Air Admittance Valves
By eliminating the need for a branch vent, Oatey Sure-Vent Air Admittance Valves (AAVs) provide the ideal venting solution for island sinks, remote bathroom groups and remodel jobs. Sensitivity to pressure changes, combined with its ability to consistently open and close, is what distinguishes the Oatey Sure-Vent AAV from all others.Why Use a Sure-Vent Air Admittance Valve?
Ensures Proper Drainage
Every fixture needs a trap and every trap needs a vent. To prevent sewer gases from being released in a home, a trap is required. A vent keeps the sewer and atmospheric pressures equalized allowing water to drain freely.
Eliminates Secondary Vent Pipes
Sure-Vent AAV's provide the ideal venting solution for island sinks, remote bathroom groups and remodeling jobs by eliminating the need to be connected directly into the stack vent.
More Economical
Sure-Vent AAV's are more economical than installing vent pipes in new construction because they reduce the added need for materials and labor.Unmatched Performance
Zero Pressure
At zero pressure the Sure-Vent AAV is sealed, ready to react to pressure changes. The Sure-Vent AAV will not allow sewer gas to enter the structure.
Negative Pressure

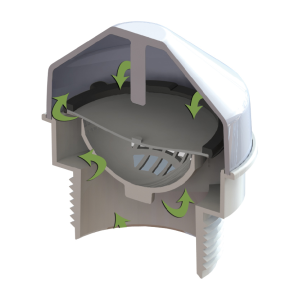

When water is turned on, a pressure change of -0.01 psi (-0.25" H2O) will cause the Sure-Vent AAV to open, allowing airflow from the room through the protective screening, past the seal and into the DWV system as the arrows indicate. When the water is turned off and pressure equalized, the Sure-Vent AAV returns to the closed zero pressure position.
Positive Pressure

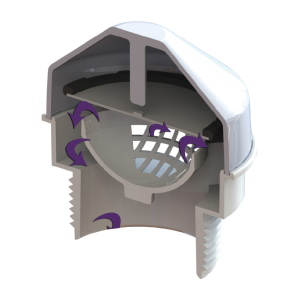

The Sure-Vent AAV seals at 0 psi and above indefinitely. The figure shows the Sure-Vent AAV in a sealed position blocking sewer gasses. When pressure subsides, the Sure-Vent AAV returns to the zero pressure position.
Oatey products have earned the trust of plumbing professionals for over 100 years.
Since 1916, Oatey has provided reliable, high-quality products for the residential and commercial plumbing industries, with a commitment to delivering quality, building trust and improving lives. Today, Oatey operates a comprehensive manufacturing and distribution network to supply thousands of products for professional builders, contractors, engineers and do-it-yourself consumers around the world.Oatey Sure Vent Wall Box with Grill Faceplate is a sleek design intended to hide an AAV. It's easy to install and comes with everything you'll need to install the box. The Metal faceplate easily comes off giving you access to the AAV for maintenance and repair. Air Admittance Valve is sold separately.
- Can be used with any air admittance valve requiring a recessed installation
- Metal grille faceplate allows air movement to the sure-vent while the box offers protection and access to the sure-vent behind the drywall
- Grille is attached to the box using screws to the box frame
- Box has four mounting brackets to secure it to the studs
- The Metal faceplate easily comes off giving you access to the AAV
- Air Admittance Valve is sold separately.
- Return Policy
Specifications
Questions & Answers
7Questions
Q:Will the pipe opening at the bottom fit a 2" PVC pipe?
by|Aug 18, 2020
1 Answer
Q:How many DFU’s cap is included with this Unit??
by|May 15, 2018
2 Answers
Q:Is this valve enough to vent a toilet?
by|Feb 22, 2018
5 Answers
Q:Can someone confirm actual dimensions of the box?
by|Nov 9, 2017
1 Answer
Showing 1-4 of 7
Sep 1, 2015
Great way to vent plumbing
I have installed this Oatey Sure-Vent in two bathrooms. The one for the guest bathroom is actually vented in the garage (see attached picture). I have only 1 vent pipe going through the roof, which is why I love this product and the fact that I saved the cost of the extra pipe and vent boots, which are potential leak spots. I am installing 3 more Sure-Vents 1 for kitchen sink, one for wet-bar and one for utility sink.
by
Jan 11, 2023
Nice!
Worked great, easy to install and the directions were clear.
by
Nov 10, 2020
by
Oct 23, 2020
Works just as expected with no need to put holes...
Works just as expected with no need to put holes in the roof
by
Feb 26, 2019
Kind of big for the small aav. Going to...
Kind of big for the small aav. Going to check out the studor
by
May 31, 2018
A quick way to overcome the need for venting your plumbing! We purchased this for a project whic...
A quick way to overcome the need for venting your plumbing! We purchased this for a project which had an issue with venting the drain line within code limits. This provided a quick solution for our needs. I will caution though to check with your local plumbing inspectors to see if allowed, some will not allow this type of venting in a residential setting.
by
May 22, 2018
When a drain line cannot be vented using conventional plumbing venting practices then a Studor Ve...
When a drain line cannot be vented using conventional plumbing venting practices then a Studor Vent or similar Air Admittance Valve (AAV) may be used. This valve allow air into the drain line while not allowing sewer gas back into the open air. When such a valve has to be located in a wall bay it must remain accessible according to building code. That is where this wall box with grill faceplate comes in. This box, with 4 adjustable mounting tabs, can be securely mounted anywhere within a 16” OC wall cavity. The AAV is located inside this box and covered with the included attractive steel grill, very much looking like a standard HVAC register. The removable grill provides the required access to the AAV. Overall, a very neat and convenient method to correctly install a AAV when needed.
by
Jan 1, 2018
Sure I would recommend this product if the need should arise for someone requiring a vent when br...
Sure I would recommend this product if the need should arise for someone requiring a vent when breaking through the top plate is not an option. Be sure when ordering you understand that the actual sure vent does not come with this kit as it does with other manufacturers. The wall box is hard plastic with the straps for installation, making things easy to adjust during the hassle free install. The grill in this kit is metal which makes it my go to choice when needing this set-up, most often is a bathroom remodel. Not spectacular but gets the job done effectively.
by
Dec 19, 2017
The box is similar in size to the Oatey washer...
The box is similar in size to the Oatey washer outlet box hence, it is quite large but it is not exactly the same size. It would be nice if the two boxes were the same size, then they would match since you are most likely to use the both boxes in your application. Very nice!
by
Oct 18, 2017
5 Star Review
Rating provided by a verified purchaser
by
Frequently Bought Together
Price:
$2207
Compare Similar Air Admittance Valves
|  |  |  | |
| Brand | Oatey | STUDOR | JONES STEPHENS | Oatey |
| Name | Sure-Vent Air Admittance Valve Wall Box with Metal Vent Cover | 1-1/2 in. or 2 in. PVC Mini Vent Air Admittance Valve | 1-1/2 in. PVC Backwater Valve for Drainage Systems | Sure-Vent 2 in. x 3 in. ABS Air Admittance Valve with 160 DFU Branch |
| Price | $2207 | $2997 | $3157 | $3487 |
| Ratings | (13) | (181) | (4) | (1) |
| Connection | Snap-on | Screw on | Solvent | Screw on |
| Compatible Pipe Material | Soft Plastic | PVC | PVC | ABS |
| Material | PVC | Plastic | PVC | Acrylonitrile Butadiene Styrene (ABS) |
| Valve Type | Air Admittance | Air Admittance | Backflow Prevention | Air Admittance |
| Maximum Pressure (psi) | 15 | 160 | 5 psi | 0 |
| Application | Rough-In valve | Rough-In valve | Non-Potable Water | Rough-In valve |
| THD SO SKU | 1000673204 | |||
| View Product | View Product | View Product | View Product |
