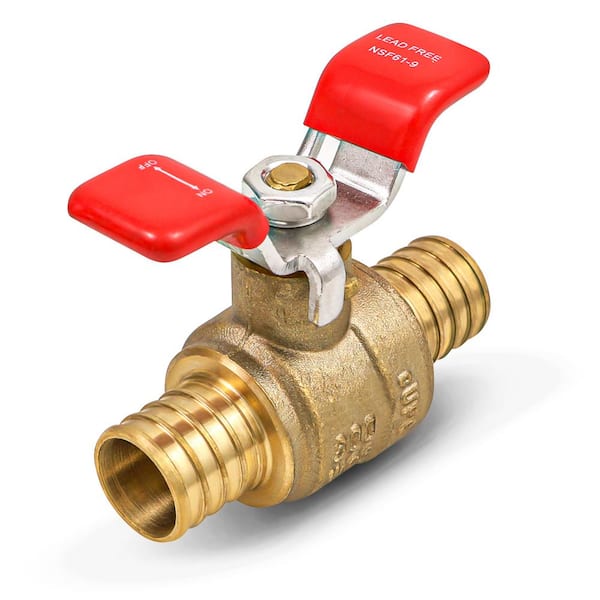

3/4 in. Full Port PEX Barb Ball Valve Water Shut Off with Tee Handle
- Lead-free brass construction ensures durability
- Suitable for use with steam, water and oil applications
- Features PEX connections on both ends
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
The lead free full port PEX ball valve with Drain features PEX connections on both ends and is useful for heavy duty commercial and residential applications. Typical uses include domestic hot cold water systems and natural gas. The valve is operated with a chrome plated Brass handle covered with a vinyl grip. The handle lever makes a 90° quarter turns by opening or closing the valve. The construction of heavy duty forged Brass valve pressure is rated 150 psi for steam and 600 psi for water, oil and gas (WOG). this lead free product has been rated NSF-61-G by UPC standards.
Highlights
- High quality item constructed of lead free (DZR) brass for superior reliability and strength
- Easy to use fittings work with crimp ring or clamp connection methods
- Heavy-duty pressure is rated 150 psi WSP for steam and 600 psi WOC for water, oil and gas
- Full port chrome plated brass ball with PEX connections on both ends
- NSF, UPC and CSA approved, manufactured to ASTM standard F1808
- Lead free construction is suitable for all potable water supply installations
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Inlet Diameter (In.) | 3/4 |
|---|---|
Outlet Diameter (In.) | 3/4 |
Product Length (in.) | 2 in |
Details
Application | Natural Gas, Non-Potable Water, Oil, Potable Water |
|---|---|
Compatible Pipe Material | PEX |
Connection | Barb |
Features | Lead Free, Quarter Turn |
Handle Style | T-Handle |
Indoor/Outdoor | Indoor, Outdoor |
Material | Brass |
Maximum Pressure (PSI) | 600 PSI |
Maximum Working Temperature (F) | 150 |
Pack Size | 1 |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | 1 Year |
|---|
Questions & Answers
can this be used on a hydronic heating system
Yes
Is this PEX A or B
It's for F1807 CRIMP PEX or PEX-B
This item states that it's rated at 600 PSI for water/oil/gas, and 150 PSI for steam. Under specifications it also states that it's maximum operating temp is 150 degrees Fahrenheit. How can it work in a steam system with a max operating temp of only 150?
Hi the pressure rating is 150 PSI but the temperature rating is up to 300 degree
what size hose fits over the barbs?
1/2 inch pex
Viewing 1-4 of 4
Customer Reviews
4.7 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for heavy-duty residential and commercial water/gas applications, with full port design for maximum flow and lead-free construction. | Ideal for heavy-duty residential and commercial water/gas applications, with full port design for maximum flow. | Ideal for easy plumbing connections to copper, PEX, or CPVC with no soldering, clamps, or glue. | Ideal for DIYers and pros, this corrosion-resistant brass coupling ensures secure, leak-free connections for various piping systems. |
Size/Dimension | |||
H 1 in., W 1 in., D 1 in., L 2 in. | H 1 in., W 1 in., D 1 in., L 2 in. | H 5 in., L 2.5 in., W 1.25 in. | 3/4 in. Dia x 3 in. L |
Pressure Rating | |||
600 PSI (WOG), 150 PSI (Steam) | 600 PSI (WOG), 150 PSI (Steam) | 200 PSI | 600 PSI |
Flow Control | |||
Temperature Range | |||
Up to 150°F | 150 F | Up to 200°F | Up to 300°F |
Actuation Method | |||
