Low-Ambient 12,000 BTU 1 Ton 19 SEER Ductless Mini Split Wall Mounted Inverter Air Conditioner with Heat Pump 208/230V

Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now

Frequently Bought Together

Best Seller
+
+

Product Overview

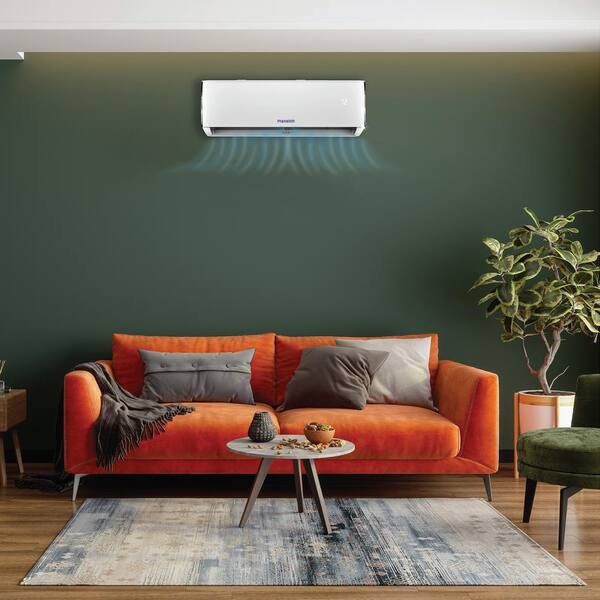

Experience instant relief the moment you enter your room with Pioneer latest Diamante series high-wall mini split heat pump. This all-new product line was designed and developed to bring a truly affordable heating and cooling solution without sacrificing desirable features. The variable-speed inverter technology and high-efficiency 19 SEER average rating guarantees substantial savings from your monthly energy bill. A dual-swing louver system ensures both horizontal and vertical sweeping air throw, to perfectly reach all directions of the room. All systems in this series come equipped with an auxiliary strip heater in the condensing unit, to provide hyper-heating even in frigid -13°F temperatures. And with noise measurements as low as 32 dB, you can sleep peacefully with air conditioning quieter than even an empty library. In addition, all systems come pre-packed with a full 16 ft. installation kit, so that the system is ready to be up and running in a single afternoon. Maintenance is simple and quick with only a seasonal cleaning of the re-usable filters. Built-in modes such as Timer, Follow-Me, ECO, Turbo, Freeze Protection, and Sleep let you fully configure both the functionality and the efficiency to your personal preference. Knowledge articles, videos, and free tech support are included, and spare parts readily available. Only Pioneer offers the perfect all-in-one solution for your cooling, heating, ventilation, and dehumidification needs.
  • Cooling capacity: 12,000 BTU/hour with 19.0 SEER efficiency
  • Heating capacity: 12,500 BTU/H with 9.5 HSPF efficiency
  • Voltage: 208-Volt - 230-Volt, 60Hz, 1Ph
  • Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with remote holder, 16 ft. L line set with other installation accessories, free vibration absorber feet for the condensing unit
  • Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
  • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
  • Certified by: ETL, AHRI, DOE for safety, performance and efficiency
  • Diamante series carries a full line of low-ambient wall-mounted mini splits with capacities ranging from 9,000 BTU/hour to 36,000 BTU/hour for various residential and light commercial applications
  • R410A pre-charged outdoor unit, accommodating line lengths up to 25 ft. long
  • Click here for more information on Electronic Recycling Programs
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Mini Split Heat Pumps

current product
Best SellerLow-Ambient 12,000 BTU 1 Ton 19 SEER Ductless Mini Split Wall Mounted Inverter Air Conditioner with Heat Pump 208/230V
Advantage 3rd Gen 9,000 BTU 3/4 Ton Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz18,000 BTU 1.5 Ton 19 SEER Ductless Mini Split Inverter+ Wall Mounted Air Conditioner with Heat Pump 208/230V9,000 BTU 3/4 Ton 19.5 SEER Ductless Mini Split Air Conditioner Heat Pump Variable Speed DC Inverter+ System 110/120V
BrandPioneerMRCOOLPioneerPioneer
NameLow-Ambient 12,000 BTU 1 Ton 19 SEER Ductless Mini Split Wall Mounted Inverter Air Conditioner with Heat Pump 208/230VAdvantage 3rd Gen 9,000 BTU 3/4 Ton Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz18,000 BTU 1.5 Ton 19 SEER Ductless Mini Split Inverter+ Wall Mounted Air Conditioner with Heat Pump 208/230V9,000 BTU 3/4 Ton 19.5 SEER Ductless Mini Split Air Conditioner Heat Pump Variable Speed DC Inverter+ System 110/120V
Price
$65280
$768.00
Save $115.20 (15%)
$77187
/bundle
Ratings
(279)
(55)
(480)
(480)
Zone CapacitySingle ZoneSingle ZoneSingle ZoneSingle Zone
BTU Cooling Rating12000 BTU9000 BTU18000 BTU9000 BTU
Voltage (v)208/230v208/230v208/230v110/120v
BTU Heat Rating12500 BTU9000 BTU18000 BTU10000 BTU
Minimum Outdoor Temperature (F)-135+5+5
Mount LocationWall MountWall MountWall MountWall Mount
IncludedHeater,Remote Control,Self-diagnostic toolsRemote ControlHeater,Remote Control,Self-diagnostic toolsHeater,Remote Control,Self-diagnostic tools
Mini Split FeaturesAuto cool,Automatic shutoff,Defrost,Fan only option,Overload protection,Programmable,Sleep setting,Wifi,Wireless remote controlAutomatic shutoff,Defrost,Fan only option,Mobile App,Overload protection,Programmable,Sleep setting,Timer,Wifi,Wireless remote controlAuto cool,Defrost,Fan only option,Overload protection,Programmable,Sleep setting,Wifi,Wireless remote controlAuto cool,Defrost,Fan only option,Overload protection,Programmable,Sleep setting,Timer,Wifi,Wireless remote control
View ProductView ProductView ProductView Product

Specifications

Dimensions

Air handler depth (in.)
8.125
Air handler height (in.)
11.5
Air handler width (in.)
32
Condenser depth (in.)
11.25
Condenser height (in.)
21.625
Condenser width (in.)
28.625

Details

Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
1-way
Air handler weight (lb.)
17.6
Amperage (amps)
10 A
BTU Cooling Rating
12000 Btu/h
BTU Cooling Rating
12000 BTU
BTU Heat Rating
12500 BTU
BTU Heat Rating
12500 Btu/h
Color
White
Color Family
White
Color/Finish
White
Condenser weight (lb.)
59.5
Coverage Area (sq. ft.)
450
Decibel (Sound) Rating
34 dBA
Decibel Rating
34 dBA
Filter Type
Washable
Included
Heater,Remote Control,Self-diagnostic tools
Line Set Length (ft.)
16
Mini Split Features
Auto cool,Automatic shutoff,Defrost,Fan only option,Overload protection,Programmable,Sleep setting,Wifi,Wireless remote control
Minimum Outdoor Temperature (F)
-13
Mount Location
Wall Mount
Number of cool settings
26
Number of Fan Speeds
Variable
Pack Size
1
Returnable
90-Day
Voltage (v)
208/230v
Voltage (volts)
208/230
Wattage (watts)
1080
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
AHRI Certified,ETL Listed,ISO Certified
Manufacturer Warranty
Five year parts warranty covering all components, upon proper registration after installation.
Seasonal Energy Efficiency Ratio (SEER)
19

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.6
    out of 279 reviews
  • 89% recommend this product
Filter by:
Showing 1-10 of 279 reviews
Solid choice
Simple, good directions and works great for heat and cold!
by
  • Verified Purchase
2 people found this helpful
Split unit ductless
I love this unit, pretty easy to install and it works amazingly well, my house hasn't been this cool in years, going to install a smaller unit in my downstairs addon room
by
  • Verified Purchase
  • Recommended
3 people found this helpful
My house is so much cooler so much faster
I wish i had bought these units years ago
by
  • Verified Purchase
  • Recommended
2 people found this helpful
Great unit!
purchased 2 36000 btu units to heat and cool my fully foam insulated 4000 sq ft metal shop building. they have no troubke keeping it 75 degrees inside when it's 95 outside. and the humidity difference is unbelievable! installation was straight forward. I'd suggest after vacuuming to let a very small amount of refrigerant out into the system and spray all your connections with soapy water. I did find a leak on a flare that I made that had to be redone. no issues with the little amount of refrigerant lost. if you have a gauge on your vacuum pump, don't let it get above 10-15 psi when letting some refrigerant out for leak check. it won't take but about 1 second to get that much in there. anyhow, great units. glad I got em.
by
    • Recommended
    4 people found this helpful
    Awesome System!
    This mini split system exceeded my expectations. Great value. Super quiet. I would rate this an advanced DIY for installation.
    by
      • Recommended
      6 people found this helpful
      The product so far has been working like a charm. The installation was easy! No problems at all! ...
      The product so far has been working like a charm. The installation was easy! No problems at all! The manual was easy to read. Everything was included in the box that was needed. It was installed by a certified technician. I would definitely purchase again!
      by
      • Verified Purchase
      • Recommended
      6 people found this helpful
      Easy to Install/ great value
      Purchased to provide cooling and heat for my 440 sqft Mancave. Easy to install. Easy to operate. Amazingly quiet and really does a great job. In service for a week and I am really happy I made the purchase. Great value for the price. Hardest part of the install was measuring and cutting hole through the outside wall. Measure 10 times and cut once! Inside unit is not heavy and easily installed on the wall. You may need help to pull the power/communication cable through the hole as you feed the line set tubing and condensate drain hose through. I cut a 3 inch hole and had zero issues feeding the lines through.
      by
        • Recommended
        10 people found this helpful
        Great value. Quiet and effective.
        Very happy with the 220V version of this mini split. I was a little hesitant to get this brand which required getting and learning how to use a vacuum pump and gauge but it was quite straight forward thanks to YouTube. If you buy this device, here are some tips I wish I knew. 1. Drill a bigger than 2.5” hole if you can. Much easier to mount the indoor unit. 2. The manual is wrong to tell you to first open the value on the 3-way port as the picture shows the 2 way port. The 2 way port is correct. 3. It appears there is no WiFi option for this WYT series. Loss of 1 star. 4. If you get a line cover kit, make sure you slip the top back cover before you attach the lines at both ends otherwise you have to cut the backplate To fit it around the line set and it won’t look as good.
        by
          • Recommended
          18 people found this helpful
          Ordered 2 units. 1 is not working and is...
          Ordered 2 units. 1 is not working and is already installed. We’re asked to return it to the store. Don’t think that’s a suitable resolution to the problem. Would like someone to contact us. Thank you
          by
            Garbage
            Do yourself a favor and spend more for a better brand like Gree. Worked for about 2 months. Cooling was good. Heat did not work. Don't bother calling tech support because no one answers. Had to do online chat. Home Depot gave me a refund.
            by
              2 people found this helpful
              Showing 1-10 of 279 reviews
