Internet #100167060

Model # CSSC22-36 X

0026613114422

ProCoat 3/4 in. FIP x 3/4 in. FIP x 36 in. Stainless Steel Gas Connector 5/8 in. O.D. (125,000 BTU)

$ 7 21

Overview

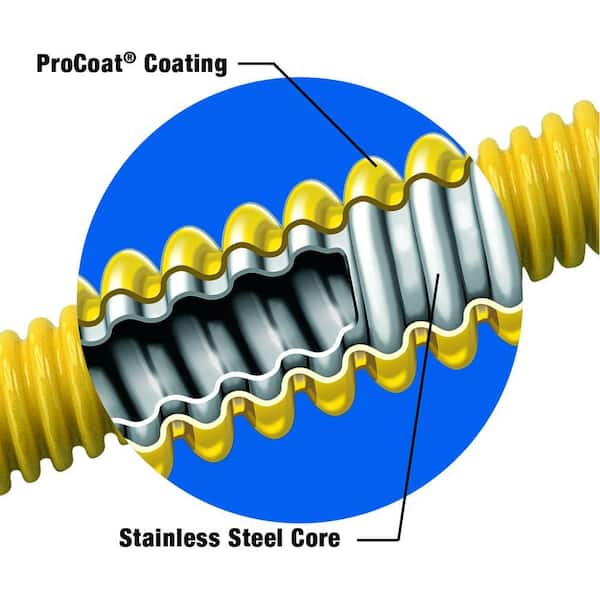

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
  • 1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
  • Steel fittings included: (2) 3/4 in. FIP
  • ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
  • Use with natural and LP (propane) gases
  • 100% leak tested
  • Approved for indoor and outdoor use
  • Temperature rating: -40° to 150° F
  • Pressure rating: 1/2 psi maximum
  • Designed, machined and assembled in the USA
  • CSA certified
  • California residents see Prop 65 WARNINGS

Product Overview

Model #: CSSC22-36 X
Internet #: 100167060

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.

  • 1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
  • Steel fittings included: (2) 3/4 in. FIP
  • ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
  • Use with natural and LP (propane) gases
  • 100% leak tested
  • Approved for indoor and outdoor use
  • Temperature rating: -40° to 150° F
  • Pressure rating: 1/2 psi maximum
  • Designed, machined and assembled in the USA
  • CSA certified
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Inner diameter (in.)
.5
Outer diameter (in.)
.625
Product Depth (in.)
1.2
Product Height (in.)
12
Product Length (in.)
12
Product Width (in.)
9.25

Details

Connection type
FIP x FIP
Gas Vent Pipe and Fittings Accessory Type
Gas Appliance Connector
Inner material
Stainless steel
Maximum Pressure (psi)
.5
Maximum Working Temperature (F)
150
Minimum working temperature (F)
-40
Outer Material
Other
Product Weight (lb.)
.96255lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
Limited Manufacturer Warranty

Specifications

Dimensions

Inner diameter (in.)
.5
Outer diameter (in.)
.625
Product Depth (in.)
1.2
Product Height (in.)
12
Product Length (in.)
12
Product Width (in.)
9.25

Details

Connection type
FIP x FIP
Gas Vent Pipe and Fittings Accessory Type
Gas Appliance Connector
Inner material
Stainless steel
Maximum Pressure (psi)
.5
Maximum Working Temperature (F)
150
Minimum working temperature (F)
-40
Outer Material
Other
Product Weight (lb.)
.96255lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

Do you carry gas flex connectors with 5/8" I.D., not O.D.?

Asked by: Greg
I think they're rated in OD, not ID. Standard diameter is 1/2" (OD). The larger size for higher-flow devices is 5/8", also OD. I've never seen these hoses rated by ID.
Answered by: RedneckRocketScientist
Date published: 2018-10-23
  • y_2019, m_6, d_19, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_, sid_100167060, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 79ms
  • QUESTIONS, PRODUCT

Customer Reviews

ProCoat 3/4 in. FIP x 3/4 in. FIP x 36 in. Stainless Steel Gas Connector 5/8 in. O.D. (125,000 BTU) is rated 5.0 out of 5 by 10.
Rated 5 out of 5 by from This 3-foot flexible natural gas line is a very cost effective replacement especially when you ar... This 3-foot flexible natural gas line is a very cost effective replacement especially when you are replacing either gas kitchen ranges, natural gas clothes dryers, and even domestic home hot water tanks. I normally replace my home kitchen gas range supply hose every 5-10 years as a preventative measure since the wife is a neat freak wanting to clean and scrub both underneath and behind the gas range every few months. This, to me, causes the flexible gas line to flex which potentially adds wear and tear to an already weak and failure prone supply fitting. This ProCoat gas supply line is brightly yellow colored which aids in showing scuff marks and scratches which is a telltale sign the line has been chaffed or disturbed. Perfect size and modestly priced makes this easy to replace and all the necessary ends are provided with this kit. After replacement I normally wash my hands using dish washing liquid being sure to build up healthy doses of soap suds and lather to check for gas leaks on both ends. Quick and easy project and task.
Date published: 2018-09-27
Rated 5 out of 5 by from This connector offers the perfect balance between rigidity and flexibility. The stainless steel a... This connector offers the perfect balance between rigidity and flexibility. The stainless steel actually offers better corrosion resistance compared to standard zinc plated or oxidized iron pipes. Also, from iron pipes you can get a lot of flakes, debris which if your piping is not done right with a trap may end up clogging your burners. This pipe doesn't have that and it has numerous applications, from water heaters to stoves and central heating units. The coating offers very good protection from scuffs and scrapes. Connectors are very precisely made and deburred. No other parts are needed to connect to a shutoff valve. I'd use a leak detection solution every time on every connection. Don't trust anybody, trust the solution. Due to its very good resistance to corrosion it can be used for every connection type outdoors. I would've said on RVs but this is legally not compliant although practically very feasible.
Date published: 2018-10-05
Rated 5 out of 5 by from We recently had a home inspection by the city to check to make sure the electrical and gas was up... We recently had a home inspection by the city to check to make sure the electrical and gas was up to code. During the inspection of the gas furnace a small leak was found and red flagged. The source of the leak was the gas line coming from the shutoff valve to the furnace. When they crammed the furnace into the closet they bent the pipe near the joint. We picked up a Brass Craft Procoat stainless steel gas connector. Once the gas was shut off the removal of the old unit and replacement of the new unit took about 10 minutes, including the gas leak test. The Brass Craft connector was very inexpensive compared to other competitors and I feel confident it will hold up well for a good long time.
Date published: 2018-10-02
Rated 5 out of 5 by from I selected this 36" coated BrassCraft coated stainless flexible connector to connect a replacemen... I selected this 36" coated BrassCraft coated stainless flexible connector to connect a replacement furnace this fall. You should never reuse gas connector lines of fittings. I like many things about this gas connector. The pros are: It is coated and approved for indoor/outdoor use (it will go in the attic). It is flexible and is easy to fit. However never stretch or put tight bends in this type of connector. It comes with two 3/4" FIP fittings. (3/4" Female pipe thread to 1/2" male flare tubing) Saves $$ It is designed and made in the USA and 100% leak tested. CSA certified It is approved with natural gas and LP propane. I have provided a few photos of details, I hope they help.
Date published: 2018-09-24
Rated 5 out of 5 by from This flexible gas line does what it should. It comes with adapters on both ends that'll get you c... This flexible gas line does what it should. It comes with adapters on both ends that'll get you connected to just about any common furnace, clothes dryer, or oven/cook top. With the larger 5/8" OD, it's suitable for higher-draw appliances like furnaces, boilers, and tankless water-heaters (up to 125k BTUs). The coatings that withstand exposure to household chemicals, UV rays, and salt means it will likely outlast me. With all that durability and flexibility for just $7.21, it's a no-brainer. Plus Made in the USA; keep it local!
Date published: 2018-10-06
Rated 5 out of 5 by from This is probably the best gas connector you can get. It is coated with a baked on finish that re... This is probably the best gas connector you can get. It is coated with a baked on finish that resists almost everything, plus it is a nice bright yellow! This particular model is for big appliances, like a furnace or a boiler. It fits my 100 kBTU furnace perfectly. It is supplied with 3/4" pipe fittings that thread on to your supply and appliance, and then the connector (tubing) has flare connections to finish the install. Always bubble test all connections when you are finished. Good product.
Date published: 2018-10-04
Rated 5 out of 5 by from The Procoat Stainless Steel Connectors are coated have a polymer coating specially formulated to ... The Procoat Stainless Steel Connectors are coated have a polymer coating specially formulated to withstand prolonged exposure to household chemicals, salt and UV rays. After the connector has been tested for leaks, the coating is baked on and provides the most complete corrosion resistance available. Additionally, the connectors are purpose made for ranges, hot water heaters or heating systems so be sure to choose the right connector for the purpose.
Date published: 2018-10-09
Rated 5 out of 5 by from The BrassCraft ProCoat 3/4 in FIP X 3/4 IN. FIP X 36 IN. Stainless steel gas connector 5/8 IN. O.... The BrassCraft ProCoat 3/4 in FIP X 3/4 IN. FIP X 36 IN. Stainless steel gas connector 5/8 IN. O.D. (125,000 BTU) is an essential part of any smart installation of any new appliance. I got it for its proprietor advanced corrosion resistance against harsh chemicals Rated for indoor or outdoor use. Use with natural and LP (propane) gases.it has pressure rating: 1/2 psi maximum and CSA certified. I am always pleased with BrassCraft products.
Date published: 2018-09-28
