Storm Drain Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Architectural 316 Stainless Steel (6-Pack)
- Designed to eliminate outdoor water runoff and pooling issues
- Made from 100% recycled plastic for durability
- Anti-floatation channel feet prevent floating when filled
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product

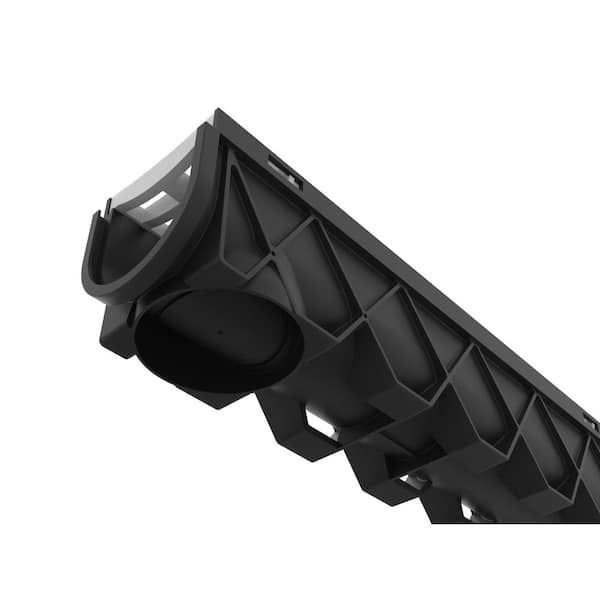

Eliminate outdoor water runoff and pooling issues with the RELN Storm Drain channel drainage system. It is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications. Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners, and intersections. The Storm Drain Channel system is compatible to 4 in. sewer pipe with bottom or end outlet connection. The tough durable and lightweight UV stabilized plastic channel includes architectural 316 stainless steel grate to suit domestic pedestrian and vehicle traffic. For those who live near the coasts of Florida, California or Washington, the saltwater atmosphere plays havoc on cast iron and galvanized steel, it is wise to consider a grade 316 stainless steel.
Highlights
- Channel lengths are interlocking, no clips required
- Recommended for medium duty pneumatic tire traffic, autos and light trucks at speeds less than 20-mph
- Manufactured from 100% recycled plastic (polypropylene)
- Anti-floatation channel feet prevent floating when encased in fill material
- U shaped channel, corners and tees are designed to prevent water pooling
- Cross braced ribs are designed into the body for strength and rigidity
- End outlet accommodates 4 in. sewer pipe - ABS to PVC transition glue required
- Grates clip in and out, no screws required
- Kit includes 6 in. x 40 in. channels, 1 x end cap and 1 x end outlet
- Marine grade - salt water corrosion resistant
- To create a water-tight connection, or to seal the Storm Drain End Cap to channel drain length, purchase RELN Part 000309 - Silicone 2.8 oz. Black Superior Watertight Drainage Sealant
- Return Policy
Product Information
Specifications
Dimensions
Max. Compatible Pipe Size (In.) | 4" |
|---|---|
Min. Compatible Pipe Size (In.) | 4" |
Product Depth (in.) | 5.4 in |
Product Length (in.) | 240 in |
Product Width (in.) | 4.75 in |
Details
Color/Finish | Architectural 316 Stainless Steel |
|---|---|
Compatible Area of Use | Downspout Runoff, Driveway, Neighbor Runoff, Patio, Pool Deck, Walkways |
Material | Polypropylene |
Maximum Working Temperature (F) | 130 |
Minimum working temperature (F) | 5 |
Pack Size | 6 |
Pipe or Fitting Product Type | Accessory |
Product Weight (lb.) | 17 lb |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | 1 year |
|---|
Questions & Answers
These sections clip together easily, but the end fittings only fit on one end. How do you terminate the open end if you are using the pipe connector at the other end?
Hi Simon, The End Cap can be secured to the non-coupling end of the Storm drain channel by applying the RELN sealant (available through the homedepot.com) https://www.homedepot.com/p/RELN-2-8-oz-Silicone-Superior-Watertight-Drainage-Sealant-Black-000309/316357755 This will create a secure and water-tight connection.
