Internet #309890504

Model # 4AC13L18P

0662551499681

ROYALTON

1.5 Ton 13 SEER R-410A Residential Split System Central Air Conditioning System

$ 2,308 59

Overview

Experience a cool and comfortable home with this ROYALTON 13 SEER sweat air conditioning system which is designed and approved for residential and commercial applications. The A/C system consists of the outdoor air conditioning condenser, indoor evaporator coil, and 30 ft. line set, and is designed to be used with a new or existing furnace, or modular air handler available separately. The condenser is charged with enough R-410A refrigerant to accommodate 15 ft. of line set, and features easy internal access. Top air discharge design and compact cabinet size are great for multi-unit placement outdoors. All systems come with a cased coil filled with dry nitrogen which will be matched to your specific application as a representative will be in contact to help determine the proper coil to be matched with the installation application. The 30 ft. line set is sized appropriately based on the system ton size, and include the liquid line and insulated suction line. All systems are AHRI Certified and ETL listed. Final connections from line set to coil and condenser, and system start-up must be done by a certified technician. Approved for installation in the following States: CO, CT, ID, IL, IN, IA, KS, MA, ME, MI, MN, MO, MT, NE, NH, NJ, NY, ND, OH, OR, PA, RI, SD, UT, VT, WA, WV, WY.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

Experience a cool and comfortable home with this ROYALTON 13 SEER sweat air conditioning system which is designed and approved for residential and commercial applications. The A/C system consists of the outdoor air conditioning condenser, indoor evaporator coil, and 30 ft. line set, and is designed to be used with a new or existing furnace, or modular air handler available separately. The condenser is charged with enough R-410A refrigerant to accommodate 15 ft. of line set, and features easy internal access. Top air discharge design and compact cabinet size are great for multi-unit placement outdoors. All systems come with a cased coil filled with dry nitrogen which will be matched to your specific application as a representative will be in contact to help determine the proper coil to be matched with the installation application. The 30 ft. line set is sized appropriately based on the system ton size, and include the liquid line and insulated suction line. All systems are AHRI Certified and ETL listed. Final connections from line set to coil and condenser, and system start-up must be done by a certified technician. Approved for installation in the following States: CO, CT, ID, IL, IN, IA, KS, MA, ME, MI, MN, MO, MT, NE, NH, NJ, NY, ND, OH, OR, PA, RI, SD, UT, VT, WA, WV, WY.
  • System includes outdoor condenser, indoor evaporator coil, and 30 ft. line set
  • Charged with R-410A refrigerant to accommodate 15 ft. of line set

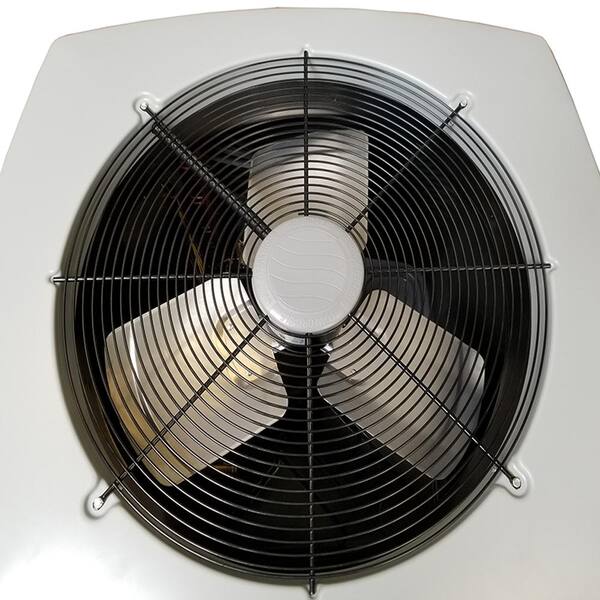

  • Top air discharge to direct hot air away from living area and shrubbery
  • Louver panel design to protect the condenser coil
  • Corner mounted service valves for easy hook-up and service
  • Liquid line filter drier is included for installation in the field
  • All units are factory run tested to ensure reliable operation upon start-up
  • All units are ETL and ETLC approved and AHRI certified
  • Representative will contact you to assist in selecting the proper evaporator coil based on the application, and furnace width
  • Systems are designed to be used with an existing, or new gas furnace, or modular air handler
  • California residents see Prop 65 WARNINGS

Product Overview

Model #: 4AC13L18P
Internet #: 309890504

Experience a cool and comfortable home with this ROYALTON 13 SEER sweat air conditioning system which is designed and approved for residential and commercial applications. The A/C system consists of the outdoor air conditioning condenser, indoor evaporator coil, and 30 ft. line set, and is designed to be used with a new or existing furnace, or modular air handler available separately. The condenser is charged with enough R-410A refrigerant to accommodate 15 ft. of line set, and features easy internal access. Top air discharge design and compact cabinet size are great for multi-unit placement outdoors. All systems come with a cased coil filled with dry nitrogen which will be matched to your specific application as a representative will be in contact to help determine the proper coil to be matched with the installation application. The 30 ft. line set is sized appropriately based on the system ton size, and include the liquid line and insulated suction line. All systems are AHRI Certified and ETL listed. Final connections from line set to coil and condenser, and system start-up must be done by a certified technician. Approved for installation in the following States: CO, CT, ID, IL, IN, IA, KS, MA, ME, MI, MN, MO, MT, NE, NH, NJ, NY, ND, OH, OR, PA, RI, SD, UT, VT, WA, WV, WY.

  • System includes outdoor condenser, indoor evaporator coil, and 30 ft. line set
  • Charged with R-410A refrigerant to accommodate 15 ft. of line set
  • Top air discharge to direct hot air away from living area and shrubbery
  • Louver panel design to protect the condenser coil
  • Corner mounted service valves for easy hook-up and service
  • Liquid line filter drier is included for installation in the field
  • All units are factory run tested to ensure reliable operation upon start-up
  • All units are ETL and ETLC approved and AHRI certified
  • Representative will contact you to assist in selecting the proper evaporator coil based on the application, and furnace width
  • Systems are designed to be used with an existing, or new gas furnace, or modular air handler
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
Experience a cool and comfortable home with this ROYALTON 13 SEER sweat air conditioning system which is designed and approved for residential and commercial applications. The A/C system consists of the outdoor air conditioning condenser, indoor evaporator coil, and 30 ft. line set, and is designed to be used with a new or existing furnace, or modular air handler available separately. The condenser is charged with enough R-410A refrigerant to accommodate 15 ft. of line set, and features easy internal access. Top air discharge design and compact cabinet size are great for multi-unit placement outdoors. All systems come with a cased coil filled with dry nitrogen which will be matched to your specific application as a representative will be in contact to help determine the proper coil to be matched with the installation application. The 30 ft. line set is sized appropriately based on the system ton size, and include the liquid line and insulated suction line. All systems are AHRI Certified and ETL listed. Final connections from line set to coil and condenser, and system start-up must be done by a certified technician. Approved for installation in the following States: CO, CT, ID, IL, IN, IA, KS, MA, ME, MI, MN, MO, MT, NE, NH, NJ, NY, ND, OH, OR, PA, RI, SD, UT, VT, WA, WV, WY.
  • System includes outdoor condenser, indoor evaporator coil, and 30 ft. line set
  • Charged with R-410A refrigerant to accommodate 15 ft. of line set
  • Top air discharge to direct hot air away from living area and shrubbery
  • Louver panel design to protect the condenser coil
  • Corner mounted service valves for easy hook-up and service
  • Liquid line filter drier is included for installation in the field
  • All units are factory run tested to ensure reliable operation upon start-up
  • All units are ETL and ETLC approved and AHRI certified
  • Representative will contact you to assist in selecting the proper evaporator coil based on the application, and furnace width
  • Systems are designed to be used with an existing, or new gas furnace, or modular air handler
  • California residents see Prop 65 WARNINGS

Product Overview

Model #: 4AC13L18P
Internet #: 309890504

Experience a cool and comfortable home with this ROYALTON 13 SEER sweat air conditioning system which is designed and approved for residential and commercial applications. The A/C system consists of the outdoor air conditioning condenser, indoor evaporator coil, and 30 ft. line set, and is designed to be used with a new or existing furnace, or modular air handler available separately. The condenser is charged with enough R-410A refrigerant to accommodate 15 ft. of line set, and features easy internal access. Top air discharge design and compact cabinet size are great for multi-unit placement outdoors. All systems come with a cased coil filled with dry nitrogen which will be matched to your specific application as a representative will be in contact to help determine the proper coil to be matched with the installation application. The 30 ft. line set is sized appropriately based on the system ton size, and include the liquid line and insulated suction line. All systems are AHRI Certified and ETL listed. Final connections from line set to coil and condenser, and system start-up must be done by a certified technician. Approved for installation in the following States: CO, CT, ID, IL, IN, IA, KS, MA, ME, MI, MN, MO, MT, NE, NH, NJ, NY, ND, OH, OR, PA, RI, SD, UT, VT, WA, WV, WY.

  • System includes outdoor condenser, indoor evaporator coil, and 30 ft. line set
  • Charged with R-410A refrigerant to accommodate 15 ft. of line set
  • Top air discharge to direct hot air away from living area and shrubbery
  • Louver panel design to protect the condenser coil
  • Corner mounted service valves for easy hook-up and service
  • Liquid line filter drier is included for installation in the field
  • All units are factory run tested to ensure reliable operation upon start-up
  • All units are ETL and ETLC approved and AHRI certified
  • Representative will contact you to assist in selecting the proper evaporator coil based on the application, and furnace width
  • Systems are designed to be used with an existing, or new gas furnace, or modular air handler
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Evaporator height (in.)
29.5
Evaporator weight (lb.)
80
Evaporator width (in.)
24.5
Outdoor unit depth (in.)
24.25
Outdoor unit height (in.)
25
Outdoor unit width (in.)
24.25

Details

Air Conditioner Product Type
Whole House Unit
Amperage (amps)
15
BTU Cooling Rating
17600
Color
Gray
Color Family
Gray
Compressor
Scroll
Cooling
Single stage
Decibel (Sound) Rating
74 dBA
Decibel Rating
74 dBA
Evaporator depth (in.)
21
Fan-only option
No
Filter Type
No Filter
Filter light reminder
No
Nominal sound level (dB)
74
Number of Fan Speeds
1
Outdoor unit weight (lb.)
126
Remote Control
No
Returnable
90-Day
Self-diagnostic tools
No
Short cycle protection
No
Sleep setting
No
Voltage (volts)
230
Weather-resistant hardware
Yes
Whole House Air Conditioner Type
Split System

Warranty / Certifications

Certifications and Listings
ETL Listed
Manufacturer Warranty
10-Year limited parts and compressor warranty with online registration within 60 days, else standard 5-year warranty applies
Seasonal Energy Efficiency Ratio (SEER)
13

Specifications

Dimensions

Evaporator height (in.)
29.5
Evaporator weight (lb.)
80
Evaporator width (in.)
24.5
Outdoor unit depth (in.)
24.25
Outdoor unit height (in.)
25
Outdoor unit width (in.)
24.25

Details

Air Conditioner Product Type
Whole House Unit
Amperage (amps)
15
BTU Cooling Rating
17600
Color
Gray
Color Family
Gray
Compressor
Scroll
Cooling
Single stage
Decibel (Sound) Rating
74 dBA
Decibel Rating
74 dBA
Evaporator depth (in.)
21
Fan-only option
No
Filter Type
No Filter
Filter light reminder
No
Nominal sound level (dB)
74
Number of Fan Speeds
1
Outdoor unit weight (lb.)
126
Remote Control
No
Returnable
90-Day
Self-diagnostic tools
No
Short cycle protection
No
Sleep setting
No
Voltage (volts)
230
Weather-resistant hardware
Yes
Whole House Air Conditioner Type
Split System

Warranty / Certifications

Certifications and Listings
ETL Listed
Manufacturer Warranty
10-Year limited parts and compressor warranty with online registration within 60 days, else standard 5-year warranty applies
Seasonal Energy Efficiency Ratio (SEER)
13

Questions & Answers

Hi, if I purchase a Central Air Conditioning system as a replacement for an old one, could I get ...

Hi, if I purchase a Central Air Conditioning system as a replacement for an old one, could I get installation of the new unit and removal of the old unit done by a service tech at Home Depot?
Asked by: Joy
Please check with your local store to see if they would offer this service. Should you need sizing assistance to verify the proper system for your application, give us a call at 800-879-0123.
Answered by: HHP Tech Support
Date published: 2019-05-31
