Internet #203013142

Model #27GW2

9,500 BTU (3/4 Ton) Ductless (Duct Free) Mini Split Air Conditioner and Heat Pump - 110V/60Hz

  • Ductless mini AC system with a heat pump for the winter
  • Product sold without installation or permitting
  • Equipment should be sized/installed by a qualified professional
  • See More Details
$99299
/set

Frequently Bought Together

+
+
Price:
$99299

Product Overview

No Ductwork? No Problem. Ramsond Ductless (Duct-Free) Mini Split Air Conditioning Systems can be installed in virtually any location. Ductless Mini Split Air Conditioners are also referred to as Zone systems. They cool/heat the zone or areas in which they are installed. When the zone is in use, the mini split system can be turned on. When the zone is not in use, you can simply turn it off. This zone capability allows for substantial energy savings. Ramsond Heat Pump systems not only provide cooling during the hot summer months, but also provide efficient heating for the winter. They are far more efficient and substantially more economical compared to conventional central air conditioning systems. Ductless Mini Split systems are comprised of two main components: 1) The outdoor unit (Condensing Unit), and 2) The indoor unit (Evaporator Unit). The installation is simple. The indoor unit hangs on a metal bracket (supplied) that attaches to the interior wall, much like a picture frame. A 3 in. hole is then drilled through the wall. The Line set and communication wires are passed through this hole and connect the indoor and outdoor unit together. The Main power is supplied to the outdoor unit. The indoor unit draws its power from the outdoor unit. The system is operated by a wireless remote control (supplied). Simply set the remote control to the desired temperature and the system maintains the desired temperature.
  • Capacity: 9,500 BTU (3/4+ ton) cooling 9,500 BTU (3/4+ ton) heating (heat pump)
  • Power requirements: 110-Volt/60Hz, single phase powered from the outdoor unit
  • Area coverage: up to 400 sq. ft.
  • Functions: cooling, independent dehumidification, and heating (heat pump)
  • Efficiency rating: high efficiency (SEER 16.0)
  • Refrigerant: pre-charged with environmentally-friendly DuPont R410A refrigerant

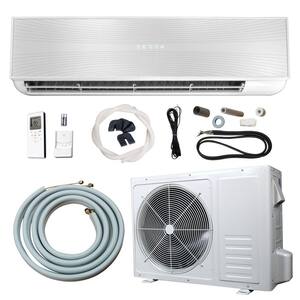

  • Complete system: includes indoor unit, outdoor unit, complete installation kit, 25 ft. of insulated copper line set, remote control
  • Quiet operation: low noise, includes sleep function
  • Easy installation: includes installation kit; quick install system: pre-wired indoor unit (25 ft. cable) with quick connection; pre-flared and flanged insulated copper line set kit; quick install system cuts installation time in half

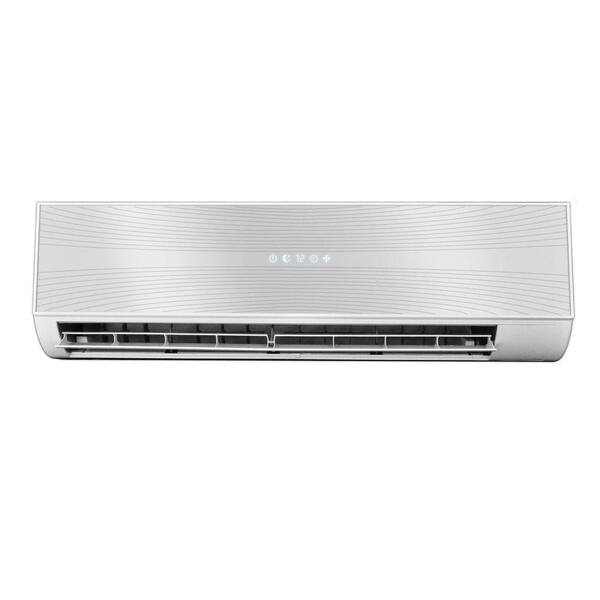

  • Features: indoor unit digital display of temperature (degree Fahrenheit), functions and error messages; 3 fan speeds; auto-restart: in case of power outage, the system restarts automatically to previous settings; self-diagnostic system: in case of malfunction, the indoor unit display shows error message codes; 24 hour start/stop timer; multi-directional oscillating indoor unit louver
  • Multi-function digital wireless remote control with wall-mount cradle/holder
  • Corrosion resistant outdoor unit paint can withstand direct sunlight, rain, snow, and harsh environments
  • Automatic defrost function for heat pump, indoor unit dual washable filters and 3M particle filters, advanced microprocessor controlled system for smart operation and advanced temperature monitoring
  • Equipment should be sized, selected, and installed by a qualified professional to ensure proper installation, function, safe operation, adherence to federal, state, and local codes and for valid warranty; see installation guide and manufactures warranty statement for more details
  • Recommended for professional purchase
  • Which type of air conditioner is best for your home?
  • Learn more about mini split installation:


  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Mini Split Heat Pumps

current product
9,500 BTU (3/4 Ton) Ductless (Duct Free) Mini Split Air Conditioner and Heat Pump - 110V/60Hz
12,000 BTU 1+ Ton Ductless Mini Split Air Conditioner and Heat Pump - 110V/60HzVireo 12,000 BTU 1 Ton Ductless Mini Split Air Conditioner and Heat Pump Kit - 208-230V/60HzGen 2 Climate 5000 ENERGY STAR 9,000 BTU 0.75-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 Hz
BrandRamsondRamsondGREEBosch
Name9,500 BTU (3/4 Ton) Ductless (Duct Free) Mini Split Air Conditioner and Heat Pump - 110V/60Hz12,000 BTU 1+ Ton Ductless Mini Split Air Conditioner and Heat Pump - 110V/60HzVireo 12,000 BTU 1 Ton Ductless Mini Split Air Conditioner and Heat Pump Kit - 208-230V/60HzGen 2 Climate 5000 ENERGY STAR 9,000 BTU 0.75-Ton Ductless Mini Split Air Conditioner with Heat Pump 230-Volt/60 Hz
Price
$99299
/set
$107341
/set $1114.86
Save $41.45 (4%)
$109900
$119900
/bundle
Ratings
(52)
(85)
(15)
(2)
Zone CapacitySingle ZoneSingle ZoneSingle ZoneSingle Zone
Coverage Area (sq. ft.)400540600450
Voltage (v)110v110v230v230v
BTU Heat Rating9500 BTU12000 BTU12000 BTU9800 BTU
BTU Cooling Rating9500 BTU12000 BTU12000 BTU9000 BTU
Minimum Outdoor Temperature (F)15ºF15ºF-4-13
Mini Split FeaturesAuto cool,Automatic shutoff,Defrost,Fan only option,No additional features,Overload protection,Programmable,Sleep setting,Timer,Wireless remote controlAuto cool,Automatic shutoff,Defrost,Fan only option,Overload protection,Programmable,Sleep setting,Timer,Wireless remote controlFilter light reminder,Overload protection,Sleep setting,TimerAuto cool,Automatic shutoff,Heater compatible,Overload protection,Programmable,Sleep setting,Timer,Wireless remote control
Mount LocationWall MountWall MountWall MountWall Mount
View ProductView ProductView ProductView Product

Specifications

Dimensions

Air handler depth (in.)
8.00
Air handler height (in.)
11.00
Air handler width (in.)
35.25
Condenser depth (in.)
10.25
Condenser height (in.)
21.75
Condenser width (in.)
32.75

Details

Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
2-way
Air handler weight (lb.)
22
Amperage (amps)
7.3
BTU Cooling Rating
9500 BTU
BTU Cooling Rating
9500.000
BTU Heat Rating
9500 BTU
BTU Heat Rating
9500.000
Color
White
Color Family
White
Color/Finish
White
Condenser weight (lb.)
72
Coverage Area (sq. ft.)
400
Decibel (Sound) Rating
22 dBA
Decibel Rating
22 dBA
Filter Type
Reusable
Included
Heater,Remote Control,Self-diagnostic tools
Mini Split Features
Auto cool,Automatic shutoff,Defrost,Fan only option,No additional features,Overload protection,Programmable,Sleep setting,Timer,Wireless remote control
Minimum Outdoor Temperature (F)
15ºF
Mount Location
Wall Mount
Number of cool settings
17
Number of Fan Speeds
3
Returnable
180-Day
Voltage (v)
110v
Voltage (volts)
110
Wattage (watts)
1140
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
CSA Listed,ETL Listed
Manufacturer Warranty
3 Year Replacement Parts Only. 5 Year Replacement Compressor Only. Labor Excluded.
Seasonal Energy Efficiency Ratio (SEER)
16

Questions & Answers

36Questions15Answers

how many square feet room does this cover?

Asked by Jo May 14, 2020
2
Answers

This system is rated for up to 400 sq ft coverage.

What is the warranty on these units

Asked by Cory November 10, 2019
2
Answers

This system has a 3 Year Entire System Parts Replacement/5 Year Compressor Replacement Warranty, labor excluded.

Can the outdoor unit be installed in attic in the space between finished area and the slanted roo...

Asked by Suli September 1, 2019
1
Answer

It can be but a power vent is recommended to remove the hot air exhaust in the cooling mode. In heat mode the outdoor unit will create condensation so make you add the included drain adapter and have a location where that can drain. You can also call us toll free 866 777 7071 for more information.

I bout this unit from you guys and i need a remote control the one i had was lost

Asked by Smith July 31, 2019
1
Answer

Thank you for informing us. Please call us at 866-777-7071, Mon-Fri 10am-6pm ET or visit CLSParts.com to find the SKU number & type of remote you need, then purchase the replacement there since we are partnered for parts replacement.

Will this heat 500 sq ft... if not what size will I need

Asked by Joyce June 28, 2019
1
Answer

A 9,000~9,500 BTU mini split system can effectively climate control up to roughly 400 sq ft. If you have an area of up to 540 sq ft, with no walls or airflow-impeding physical structures to block circulation, a 12,000 BTU mini split is the best sized system for that space.

Well this unit work if the room is not insulated it is the sunroom

Asked by Kathy February 23, 2019
2
Answers

Yes will work fine

How do you thoroughly clean this unit?

Asked by Sao September 30, 2018
1
Answer

The outdoor ( condenser unit) should be free of debris and can be blown out with an air hose or leaf blower. The indoor ( evaporator unit ) has filters that can be removed , cleaned and reinstalled. If the indoor unit has additional build up you can contact a HVAC professional to partially disassemble for a more thorough cleaning. Lastly make sure your indoor units drain tube is not restricted.

Can you use this unit outdoor s in a dog house and is it safe?

Asked by MZ September 18, 2018
2
Answers

This system is not designed for use with animals, although such an installation is possible. The dogs would need to be prevented from damaging or chewing the indoor unit or it louvers, the electrical wiring (inside unit and outside unit), the condensation hose, and the insulated copper line set running between the units. Also, this system functions using a line-of-sight infrared remote control, so you would need to ensure the ability to see the front of the indoor unit any time you would need to change modes or make any setting adjustments, since the IR receiver is next to the digital display.

Can the interior unit be mounted on the ceiling?

Asked by Alice May 21, 2018
1
Answer

Thanks for your question - this system's indoor unit cannot be mounted on or in a ceiling due to how its condensation removal components are assembled. You are looking for a "cassette" split ac system which is designed exclusively to install overhead in a ceiling.

Whats the difference between this item, and this one? https://www.homedepot.com/p/25FTLS-37GW2-25...

Asked by GrimmBook April 30, 2018
2
Answers

Item #203013142 is a complete mini split air conditioner system. Item #303757471is a replacement 25 Foot Insulated Copper Line Set only.

9,500 BTU (3/4 Ton) Ductless (Duct Free) Mini Split Air Conditioner and Heat Pump - 110V/60Hz - page 2

Customer Reviews

  • 52 Customer Reviews
  • 3.8 out of 5 stars overall
69% of customers recommended.
Overall Ratings
5star-icon(21)
4star-icon(16)
3star-icon(3)
2star-icon(5)
1star-icon(7)
Sort By:
I Love it.. follow the manual for installing , especially for the height to get cool air for the...
Quality :
5
Value :
5
I Love it.. follow the manual for installing , especially for the height to get cool air for the square feet.of the room
Was this helpful?
0
0
Surfside Beach SC USA
Easy to use, remote very easy to use.
Quality :
5
Value :
5
Received in two shipments within a day apart, took about 6 days. Installation very easy. Set up my Self contained as it says, only need to let air in line out, had a friend who is A/C licensed do it. Had an electrician run the power, because you need an outside switch off for the power and breaker.
Was this helpful?
19
0
I love the actual system its self but this is...
I love the actual system its self but this is suppose to be a DIY install. The instructions we not helpful. YouTube was the reason why I have it up right. My unit did not come with a condensation line or a power supply line so I had to spend extra money on parts that were displayed and said "included" that we not. But its up and running so the brand and unit itsself is great
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
It’s useful...
It’s useful
Was this helpful?
0
0
It replaced a unit that was +10 years old. This...
It replaced a unit that was +10 years old. This one is much quieter and easier to control.
Was this helpful?
0
0
the picture shows a head with the package i did not get the head with this product and to buy a h...
the picture shows a head with the package i did not get the head with this product and to buy a head separately made your product cost too much money
Was this helpful?
0
0
As recommended a air conditioning professional should do the installation....
As recommended a air conditioning professional should do the installation.
Was this helpful?
0
0
I am happy as an eagle flying with air...
I am happy as an eagle flying with air
Was this helpful?
0
0
The fitting for charging the system and attaching gauges is...
The fitting for charging the system and attaching gauges is not a standard size. This is problematic in finding an HVAC company to finish the installation. Instructions must be downloaded. They say it is to ensure you get the most updated instructions, thats BS, they were not updated to the unit.
