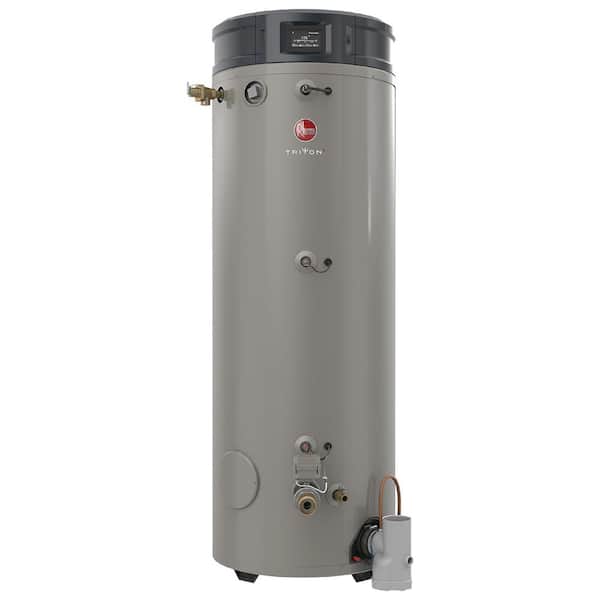

Commercial Triton Premium Heavy Duty High Eff. 80 Gal. 130K BTU ULN Natural Gas ASME Power Direct Vent Tank Water Heater

  • Built In Intelligence: Detect and prevent potential issues
  • Built In Protection: Avoid damage from leaks with auto shut off
  • Easy BMS Integration: Built-in BACnet port easily connects
  • View More Details

Product Details

Multiple Gallon and Input Capacity Options Available

Multiple Gallon Capacity and Input Combinations

80 Gallon version is available with 130/160/199/300 BTU/h (K) inputs 100 Gallon version is available with 130/160/250/300/400 BTU/h (K) inputs

All-Inclusive Leak Detection & Prevention System

Engineered With the Industry's Only Integrated Leak Detection & Prevention System

Rheem® Triton® limits leakage to no more than 24oz. of water*

Eliminate the emergency with built in intelligence for early leak detection and prevention.

Eliminate Customer Hot Water Emergencies & Business Downtime

Exclusive technology in Rheem Triton provides provides performance updates and alerts via mobile device to eliminate emergencies and downtime including scheduling, reporting, preventative maintenance alerts and detection and prevention

Five water connection options.

Universal Retrofit | Multiple Water Connections

Five water inlet and outlet connections at the top, side and bottom for easy piping

Flexible venting options with multiple vent diameters and materials.

Standard to High Efficiency Has Never Been Easier

A variety of flexible venting options, including Flex Vent, Polypropylene, PVC, CPVC and ABS materials, as well as power direct and power vent configurations using multiple vent diameters

Integrated Building Management System Connectivity

Built-in BACNet Port

Seamlessly connect to building management systems (BMS) for additional monitoring capabilities

Smart monitoring with preventative maintenance alerts and systematic performance updates via mobile device and full color LCD display.

Smart Monitoring Technology

Finally a water heater smart enough to tell you when to schedule service

Fuel Type Liquid Propane

Fuel Type

This model is for natural gas applications

Gallon Size & Input

Gallon Size & Input

80 Gallon Capacity & 130K - 300K (BTU/h) 100 Gallon Capacity & 130K - 400K (BTU/h)

Commercial Application Only

Commercial Application Only

Rheem Triton is a commercial gas water heater; not intended for residential use

WiFi Connectivity

WiFi Enabled

Built-in intelligence for early detection & prevention

ASME Certified

ASME Certified

Check with your local codes to verify if ASME certification is required

Limited Five Year Warranty


This model has a 5 Year Limited Tank Warranty

Experience the Triton Advantage: (1) Eliminate the Emergency, (2) Easy Retrofit, (3) Built to Last. The Triton is the most intelligent high efficiency commercial gas water heater in the market. Eliminating the emergency Eliminates Business Downtime. Designed for Versatility, Trition Makes for easy retrofits and new installs; it's designed to replace any other commercial gas water heater. Finally, Triton is built to be more Durable; it's built to last 5 years longer than the industry standard--saving you more than $4500 on replacement costs. SS Premium model also includes: LeakGuard leak detection and protection (via auto shut-off valve)Integrated BMS connectivity BACnet (MS/TP) Energy and Water Usage Reports Upgraded warranty to a 5-year Warranty.

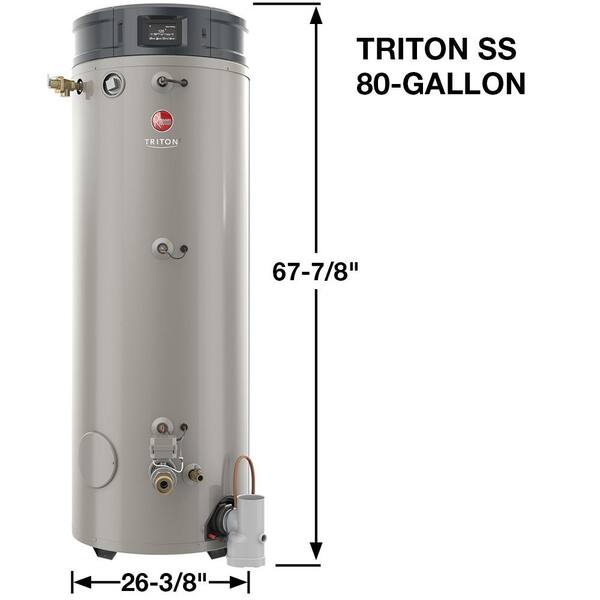

  • 80 Gal. ASME certified; 130K BTU; natural gas ULN; multiple-connection options commercial tank
  • Eliminate emergencies and downtime: triton detects leaks as small as a grain of sand; LeakSense is the most accurate built in water leak detection system
  • Built-in protection: triton's LeakGuard prevention system includes detection and prevention via an auto shut off valve to prevent water catastrophic damage and allows no more than 24 oz. of water to escape the tank
  • Built-in smart monitoring: monitors components via Wi-Fi and our EcoNet mobile app; avoid issues with remote monitoring and alerts with systematic health checks, preventive maintenance alerts, remote temperature controls, scheduling and more
  • Easy retrofit across brands: five water connection points, a variety of flexible venting options and built-in condensate neutralizer make it easy to replace any commercial gas water heater brand
  • Built to last: triton is proven to last an average of 5 years longer than the industry standard for commercial gas water heaters
  • Flexible applications: manifolds with any brand commercial gas water heater; compatible with PVC, CPVC, polypropylene, ABS, installed in power direct or power vent and can vent in 2 in., 3 in., 4 in. and 6 in. Dia
  • Durability features: the ASME-grade steel triple pass heat exchanger minimizes corrosion; its advanced power anodes self-adjust, and their life is monitored via the LCD or mobile app
  • Fast and simple servicing: easy access to all components, four screw removal to replace the combustion system
  • Designed for efficiency: full modulation optimizes BTU/h input for specific water heating demand and has a thermal efficiency of 97%
  • Easy building management system integration: built-in BACnet port easily connects to building management systems/BMS via BACnet
  • Upgraded warranty: 5-year limited tank warranty
  • California and Utah areas: this water heater meets or exceeds ultra low NOX (ULN) emissions requirements for all air quality management districts
  • Flexible venting: power direct or power vent for your application using any one of multiple vent diameters
  • Call 1-855-400-2552 before noon for same-day installation service in most areas, or visit our Water Heater Installation page for more information.
  • Click here and learn how installing a Triton High Efficiency Water Heater helped save energy for one customer
  • Return Policy
  • California residents
