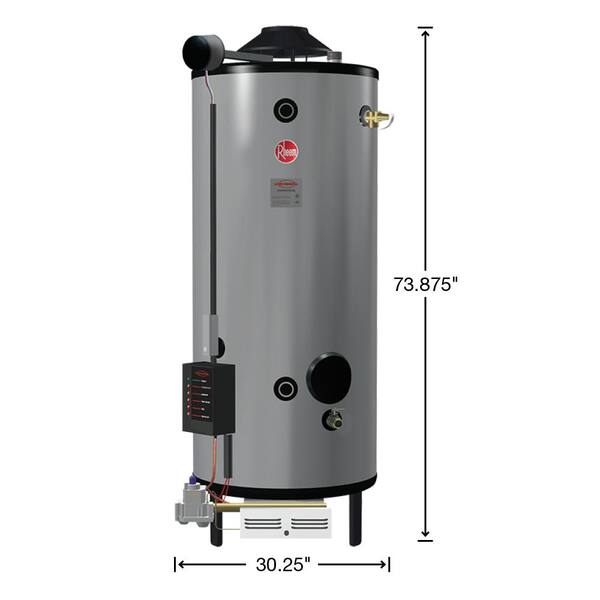

Universal Heavy-Duty 100 Gal. Commercial 199.9K BTU Natural Gas Mass Code Tank Water Heater

(1)Questions & Answers (2)
$567728
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • Delivers hot water in heavy duty, tight retrofit applications
  • Compact size and multiple water connections simplify installation
  • Backed by Rheem's 3 year limited warranty
  • View More Details
Store
0 in stock
caret

Product Details

Rheem Commercial Universal Gas Water Heaters are designed to fit into tight retrofit applications and have the features and capacity to meet heavy duty demands. The tighter the commercial retrofit, the more you will appreciate how the Universal's compact size and multiple water connections simplify installations. Please Note: This model requires a 120-Volt power source.
  • California and Utah residents (Utah effective 7/1/18): this water heater does not meet ultra-low nox (ULN) emissions requirements; regulations prohibit the sale, shipment or installation of this water heater in any air quality district that requires ULN water heaters
  • Texas residents: this water heater does not meet low nox (LN) emissions requirements; regulations prohibit the sale, shipment or installation of this water heater in any air quality district that requires low nox water heaters
  • Space saver design: the short heights and narrow jacket diameters, plus the top, front and rear water inlets/outlets offer the ultimate in installation flexibility
  • System sentinel LED diagnostic system: our exclusive diagnostic system, with glowing LED lights, verifies system operation sequence by sequence
  • Strong tank design: universals proprietary steel formulation, patented multi-flue design, combined with two coats of porcelain enamel, results in a superior heat exchanger design
  • Stainless steel burners: precision burners, raised port design, are formed from high chromium stainless steel; each burner assembly slides out like a drawer for quick inspection and maintenance
  • Low profile automatic flue damper: low profile damper minimizes overall product height and heavy-duty vent hood supports are designed to withstand the rigors of installation
  • Easy to service: factory installed full port, full flow brass drain valve allows for faster draining and servicing and hand-hole cleanout for easy removal of lime/sediment deposits
  • Direct spark to pilot ignition system: Saves energy by igniting only when there is a call for heat
  • Built-in corrosion resistance: patented anode design utilizes multiple magnesium rods to ensure corrosion resistance for a long tank life
  • Fully insulated: energy saving sag and moisture proof fiberglass insulation surrounds the storage tank and heavy mineral wool insulation surrounds the combustion chamber
  • Insulation: sag and moisture proof fiberglass insulation surrounds the storage tank and heavy mineral wool insulation surrounds the combustion chamber
  • Gas control system: thermostat adjusts from 100 degree F - 180 degree F, 24-Volt combination gas valve includes main gas pressure regulation, on-off manual valve, 120/24-Volt transformer and high limit temperature cut-out
  • Need a different configuration, no problem; our universal line offers water heaters in 35 Gal. - 100 Gal. models available in a range BTU/hr in natural gas and liquid propane
  • Call 1-855-400-2552 before noon for same-day installation service in most areas, or visit our Water Heater Installation page for more information.
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
caret

Specifications

caret

Questions & Answers

2Questions
caret
Q:We Are a family of 9. I need a commercial hot water heater . Tired of lack of hot water. What do you recommend
by|Apr 11, 2022
1 Answer
Answer This Question

A:  Hi Jean and thank you for your question. The unit you linked would produce as high and as low as - 485 - 138 GPH (gallons per hour). at it's lowest the unit would run several fixtures at the same time.

by|Apr 11, 2022
    caret
    Q:is this water heater lo nox ?
    by|Sep 30, 2018
    1 Answer
    Answer This Question

    A:  Please contact our commercial support line (334-203-7372) for more information on this product.

    by|Sep 30, 2018
      Showing 1-2 of 2
      caret

      Customer Reviews

      4 out of 5
      (1)
      • 4
        out of 1 reviews
      • 0%recommend this product
      Filter by:
      Showing 1-1 of 1 reviews
      May 1, 2020
      This water heater was just what we needed to replace...
      This water heater was just what we needed to replace the one that went down. It plumbed in easily and fired right up after the install. It wasnt so easy getting it into the basement as its about 700 lbs. If it lasts 22 years like the last one did I’ll bump this rating up to excellent.
      by
      • Verified Purchase
      Showing 1-1 of 1 reviews

      Frequently Bought Together

      +
      +
      Price:
      $567728

      • Compare Similar Gas Tank Water Heaters

      current product
      Universal Heavy-Duty 100 Gal. Commercial 199.9K BTU Natural Gas Mass Code Tank Water Heater      		Universal Heavy Duty 100 gal. 270K BTU Ultra-Low NOx (ULN) Commercial Natural Gas Tank Water HeaterCommercial Universal Heavy Duty 100 Gal. 270K BTU Natural Gas Tank Water HeaterCommercial Universal Heavy Duty 100 Gal. 250K BTU Natural Gas ASME Tank Water Heater
      BrandRheemRheemRheemRheem
      NameUniversal Heavy-Duty 100 Gal. Commercial 199.9K BTU Natural Gas Mass Code Tank Water HeaterUniversal Heavy Duty 100 gal. 270K BTU Ultra-Low NOx (ULN) Commercial Natural Gas Tank Water HeaterCommercial Universal Heavy Duty 100 Gal. 270K BTU Natural Gas Tank Water HeaterCommercial Universal Heavy Duty 100 Gal. 250K BTU Natural Gas ASME Tank Water Heater
      Price
      $567728
      $678728
      $686202
      $870388
      Ratings
      (1)
      (9)
      (14)
      (2)
      Nominal Tank Capacity (gallons)100 gal100 gal100 gal100 gal
      Vent TypeAtmosphericAtmosphericAtmosphericAtmospheric
      Application TypeCommercialCommercialCommercialCommercial
      Tank Warranty3 Year3 Year3 Year3 Year
      Product Height (in.)73.875 in73.875 in73.875 in73.25 in
      Water Heater ProfileTallTallTallTall
      Household Size5+5+5+5+
      THD SO SKU1003056788 10030615481003056898
      Gas Type Natural Gas
      View ProductView ProductView ProductView Product
