Model # TSS701

Internet #301920095

Store SKU #1002637227

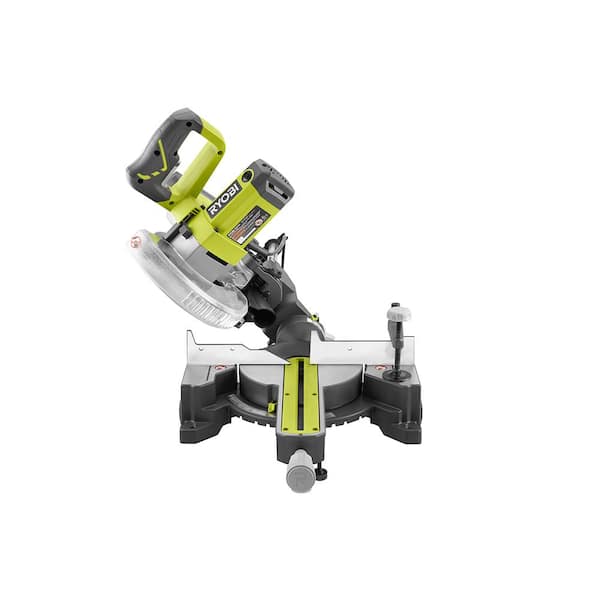

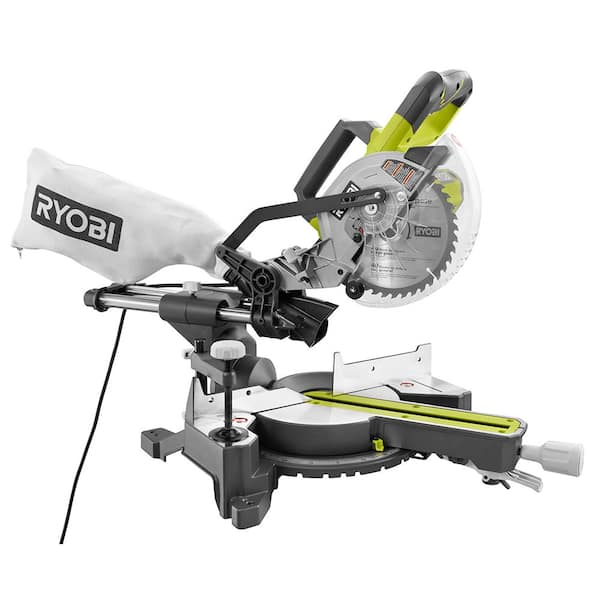

Ryobi 10 Amp 7-1/4 in. Sliding Miter Saw
0033287174188

Ryobi

10 Amp 7-1/4 in. Sliding Miter Saw

  • 10 in. nominal crosscut capacity
  • Includes a carbide-tipped blade and a work clamp
  • Features an LED cutline indicator and miter detent override
$ 139 00
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • 10 in. nominal crosscut capacity
  • Includes a carbide-tipped blade and a work clamp
  • Features an LED cutline indicator and miter detent override
RYOBI introduces the 10 Amp 7-1/4 in. Sliding Miter Saw. This Sliding Miter Saw can make angled cuts up to 45° on boards all the way up to 6 in. wide, and has a max RPM of 5,350. It also features an LED cutline indicator that illuminates the workspace and makes for easier cuts. Combine that with positive miter stops for all common crown molding angles, and a quick action lever that gives you the ability to lock in on any angle and you can see how this saw will allow anyone to become a precision craftsman. Backed by the RYOBI 3-Year Manufacturer's Warranty, the 10 Amp 7-1/4 in. Sliding Miter Saw includes a 7-1/4 in. carbide-tipped blade, work clamp, blade wrench, dust bag and an operator's manual.
  • Maximum crosscut dimensions: 90° - 1-1/2 in. x 10 in.; 45° - 1-1/2 in. x 6 in.
  • Sliding head provides maximum capacity for up to 10 in. W boards at zero bevel
  • Miter stops located at the most common crown molding angles: 0°, 15°, 22.5°, 31.6° and 45° (left and right)
  • LED light accurately aligns cutline with blade and illuminates the work piece
  • Miter ranges from 47° left to 47° right to accommodate a wide variety of cuts
  • Miter detent override provides quick-action lever bypass with 1 simple motion
  • Equipped with horizontal D-handle for utmost visibility and comfort
  • Electric brake stops blade rapidly for added safety
  • 3-year manufacturer's warranty
  • Includes: (1) 10 Amp Sliding Miter Saw, (1) 7-1/4 in. carbide-tipped blade, (1) work clamp, (1) blade wrench, (1) dust bag, and an operator's manual
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • 10 in. nominal crosscut capacity
  • Includes a carbide-tipped blade and a work clamp
  • Features an LED cutline indicator and miter detent override
Model #: TSS701
Sku #: 1002637227
Internet #: 301920095

RYOBI introduces the 10 Amp 7-1/4 in. Sliding Miter Saw. This Sliding Miter Saw can make angled cuts up to 45° on boards all the way up to 6 in. wide, and has a max RPM of 5,350. It also features an LED cutline indicator that illuminates the workspace and makes for easier cuts. Combine that with positive miter stops for all common crown molding angles, and a quick action lever that gives you the ability to lock in on any angle and you can see how this saw will allow anyone to become a precision craftsman. Backed by the RYOBI 3-Year Manufacturer's Warranty, the 10 Amp 7-1/4 in. Sliding Miter Saw includes a 7-1/4 in. carbide-tipped blade, work clamp, blade wrench, dust bag and an operator's manual.

  • Maximum crosscut dimensions: 90° - 1-1/2 in. x 10 in.; 45° - 1-1/2 in. x 6 in.
  • Sliding head provides maximum capacity for up to 10 in. W boards at zero bevel
  • Miter stops located at the most common crown molding angles: 0°, 15°, 22.5°, 31.6° and 45° (left and right)
  • LED light accurately aligns cutline with blade and illuminates the work piece
  • Miter ranges from 47° left to 47° right to accommodate a wide variety of cuts
  • Miter detent override provides quick-action lever bypass with 1 simple motion
  • Equipped with horizontal D-handle for utmost visibility and comfort
  • Electric brake stops blade rapidly for added safety
  • 3-year manufacturer's warranty
  • Includes: (1) 10 Amp Sliding Miter Saw, (1) 7-1/4 in. carbide-tipped blade, (1) work clamp, (1) blade wrench, (1) dust bag, and an operator's manual
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Customers Also Compared These

Price
$135.00
$139.00
$219.00
$269.00
Name 14 Amp 10 in. Compound Miter Saw 10 Amp 7-1/4 in. Sliding Miter Saw 15 Amp 10 in. Sliding Miter Saw with Laser 15 Amp Corded 12 in. Sliding Miter Saw with Laser
Brand Ryobi Ryobi Ryobi Ryobi
Ratings (452) (149) (1440) (883)
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
29.130 in
Product Height (in.)
21.5 in
Product Width (in.)
16 in
Table Length (in.)
11
Table Width (in.)
16

Details

45 Degree Crosscut Capacity Maximum
2x6
90 Degree Crosscut Capacity Maximum - Left
2x10
90 Degree Crosscut Capacity Maximum - Right
2x10
Amperage (amps)
10 A
Arbor Size
5/8 in.
Bench & Stationary Tool Type
Slide Miter Saw
Bench or Stationary
Bench
Bevel Type
Single
Blade Diameter (in.)
7-1/4
Color Family
Green
Condition
New
Cord Length (ft.)
6
Cordless/ Corded
Corded
Dust Collection Method
1.5 in. Dust Port
Maximum Cutting Thickness (in.)
3.375
Maximum Degree Miter Cuts - Left
47
Maximum Degree Miter Cuts - Right
47
Maximum Speed (rpm)
5350
Maximum miter capacity
47
Miter Saw Type
Sliding
No Tool Blade Change
No
Power Tool Features
No Additional Features,Positive Stops
Product Weight (lb.)
25 lb
Reconditioned
No
Returnable
90-Day
Tools Product Type
Power Tool

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
3-Year Limited Warranty

Specifications

Dimensions

Product Depth (in.)
29.130 in
Product Height (in.)
21.5 in
Product Width (in.)
16 in
Table Length (in.)
11
Table Width (in.)
16

Details

45 Degree Crosscut Capacity Maximum
2x6
90 Degree Crosscut Capacity Maximum - Left
2x10
90 Degree Crosscut Capacity Maximum - Right
2x10
Amperage (amps)
10 A
Arbor Size
5/8 in.
Bench & Stationary Tool Type
Slide Miter Saw
Bench or Stationary
Bench
Bevel Type
Single
Blade Diameter (in.)
7-1/4
Color Family
Green
Condition
New
Cord Length (ft.)
6
Cordless/ Corded
Corded
Dust Collection Method
1.5 in. Dust Port
Maximum Cutting Thickness (in.)
3.375
Maximum Degree Miter Cuts - Left
47
Maximum Degree Miter Cuts - Right
47
Maximum Speed (rpm)
5350
Maximum miter capacity
47
Miter Saw Type
Sliding
No Tool Blade Change
No
Power Tool Features
No Additional Features,Positive Stops
Product Weight (lb.)
25 lb
Reconditioned
No
Returnable
90-Day
Tools Product Type
Power Tool

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
3-Year Limited Warranty

Questions & Answers

So what is the difference between the LED and the Laser?

Asked by: Jaxjeff64
LED used the shadow of the saw blade to make very accurate cuts. Laser often needs to be calibrated and the LED doesn't. LED is harder to see or can't see at all in daylight. You can see the laser in daylight. You can't see either of them in direct sunlight.
Answered by: Matou
Date published: 2018-11-01

Would this struggle to cut some 2x12?

Asked by: Yugie
yes
Answered by: Andy
Date published: 2018-12-04

Can I cut crown molding with this saw?

Asked by: Bob
Yes
Answered by: Andy
Date published: 2018-12-08

Is there a rubber stand or plate to gonon bottom of this saw

Asked by: Gregg
Yes, it has the thing which you can screw to level the saw
Answered by: makuchaku
Date published: 2018-06-16
  • y_2018, m_12, d_14, h_23CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_28
  • loc_, sid_301920095, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 33ms
  • QUESTIONS, PRODUCT

Customer Reviews

10 Amp 7-1/4 in. Sliding Miter Saw is rated 4.5 out of 5 by 148.
Rated 5 out of 5 by from Used it immediately and am happy with the clean cuts... Used it immediately and am happy with the clean cuts and accuracy of the angles for mitering trim. It is the right size for what I need to do and is not so heavy and has a great feel to it that makes yoiu feel like you have one of the big boys in hand. I like my new saw!
Date published: 2018-12-13
Rated 5 out of 5 by from As advertised As advertised
Date published: 2018-12-11
Rated 5 out of 5 by from I needed to install some 1/2” x 6” base and... I needed to install some 1/2” x 6” base and this perfect for the outside corners. It is lightweight, easy to adjust and I really like the light that is directed down on the blade.
Date published: 2018-12-05
Rated 4 out of 5 by from The only drawback about this is the LED line is... The only drawback about this is the LED line is actually a shadow more than a lit line but it's not a huge issueo. Also the fence does not have ay measurements on it.
Date published: 2018-12-05
Rated 5 out of 5 by from Great little miter saw. No complaints. ... Great little miter saw. No complaints.
Date published: 2018-12-04
Rated 4 out of 5 by from No assembly required that’s the way I like it.... No assembly required that’s the way I like it.
Date published: 2018-12-04
Rated 5 out of 5 by from Its perfect for what I need small finish work,,Baseboards and wood trim around doors.. Its perfect for what I need small finish work,,Baseboards and wood trim around doors..
Date published: 2018-12-04
Rated 4 out of 5 by from The light feature is wonderful except that it casts shadows in a manner that makes it very diffic... The light feature is wonderful except that it casts shadows in a manner that makes it very difficult to see the line you're trying to cut. Better light placement and perhaps a laser would be icing. (also how much more expensive is it to do double beveling? Little extra piece of materials?) Overall I totally love this saw. The noise is fine, the look is slick, movements are smooth. I would recommend.
Date published: 2018-11-22
