Internet #312096900

Model #SFDP1-012-035-21

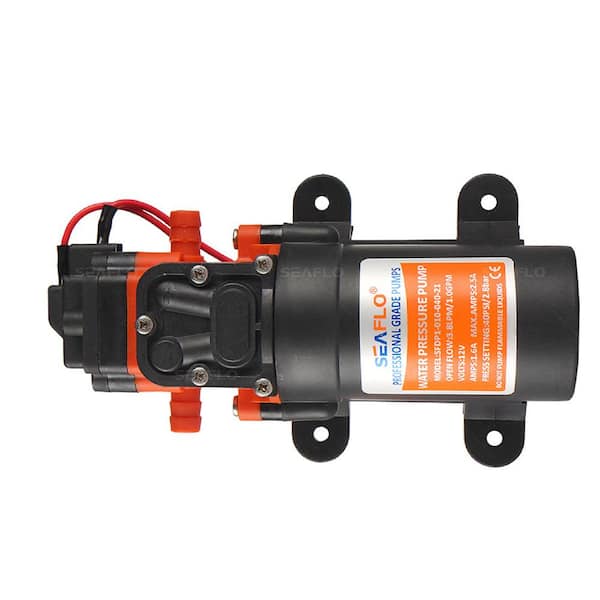

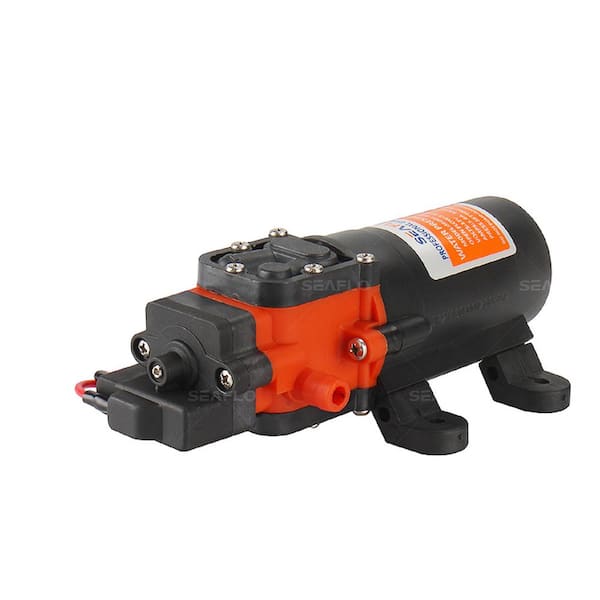

1.2 GPM 0.4 HP Water Pressure Diaphragm Pump

  • Designed for freshwater and saltwater applications
  • Pressure switch enables automatic pump operation
  • Thermally protected 0.4 HP motor ensures safe operation
  • See More Details

Frequently Bought Together

+
+
Price:
$2999

Product Overview

SEAFLOs 1.2 GPM 21-Series Low-Flow Water Pressure Pump is an automatic-demand water pressure pump capable of supplying up to 1.2 GPM. The compact design is great for single fixture applications. The pump is self-priming up to 4 ft., and has run-dry capabilities, which extends the life of the pump. The built-in adjustable pressure switch automatically starts and stops the pump when the faucet is opened or closed. The inlet and outlet are 3/8 in. hose barbs. This pump can be used in a wide range of applications including water supply to a fixture, liquid transfer and spraying. This pump can be used in both fresh and salt water applications. These pumps will offer you great reliability at an affordable price with a 4-Year Warranty.
  • California residents
  • Ignition protected
  • Control type: adjustable pressure switch factory set at 35 psi
  • Valve: EPDM
  • Diaphragm: santoprene
  • Can be used for salt and fresh water
  • 2 chamber positive displacement diaphragm pump
  • 16 AWG
  • 3/8 in. hose barb
  • 4 vertical feet suction lift
  • Built-in check valve
  • Housing material: nylon/polypropylene
  • Capable of supplying multiple fixtures
  • Rubber feet to reduce vibration and noise for quiet operation
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Transfer Pumps

current product
1.2 GPM 0.4 HP Water Pressure Diaphragm Pump
Standard Duty Lever Action Hand Pump36 in. Utility Hand Pump with 72 in. Hose1/10 HP 12-Volt Utility Transfer Pump
BrandSEAFLOFILL-RITESiphon KingAcquaer
Name1.2 GPM 0.4 HP Water Pressure Diaphragm PumpStandard Duty Lever Action Hand Pump36 in. Utility Hand Pump with 72 in. Hose1/10 HP 12-Volt Utility Transfer Pump
Price
$2999
/box
$3299
$3780
$6220
Ratings
(9)
(2)
(54)
(2)
Power TypeElectricMechanicalMechanicalElectric
Voltage12v 12v
Discharge Flow @ 0 ft. (gallons/hour)18010240264
Power Type RequiredDC DC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
7.2 in
Product Height (in.)
2.6 in
Product Width (in.)
4.17 in

Details

Amperage (amps)
4
Cord Length (ft.)
2
Discharge Flow @ 0 ft. (gallons/hour)
180
Discharge Flow @ 0 ft. (gallons/min)
3
Discharge Flow @ 10 ft. (gallons/hour)
180
Discharge Flow @ 10 ft. (gallons/min)
3
Features
Run-Dry Capable,Self-Priming,Thermal Overload Protection
Head Pressure (ft.)
100
Housing Material
Metal
Included
Mounting Bracket,Pump Hookup
Inlet Connection
Barb/rib
Maximum Discharge Flow (gallons/hour)
180
Maximum Horsepower (hp)
0.4
Maximum Pressure (psi)
35
Maximum Working Temperature (F)
140
Minimum working temperature (F)
33
Outlet Connection
Barb/rib
Pack Size
1
Power Type
Electric
Power Type Required
DC
Product Weight (lb.)
1.54 lb
Pump Switch Type
Diaphragm,Pressure
Returnable
180-Day
Vertical Lift (ft.)
100
Voltage
12v

Warranty / Certifications

Certifications and Listings
CSA Certified,CSA Listed,CSA-US Certified,ISO Certified,USCG Certified
Manufacturer Warranty
4 Year Warranty

Questions & Answers

7Questions5Answers

Can this pump pull water from the creek 50 yards away and 5 feet up ?

Asked by Marius November 15, 2020
1
Answer

Good evening. No that run is far to much distance for the 21 series pump.

Can this be used to drain a hot tub using standard garden hoses?

Asked by Jc1234 July 8, 2020
1
Answer

You certainly could use the 21 series pump to do that job. There are a few features of the 21 series pump that make it less than optimal to do that job however. First the pump will only pump 1.2 gallons a minute. Simple math will give you an idea of the amount of time that will take. There is also the fact that the 21 series has 3/8" inlet and outlet so you would need adapters to go from 3/8" to garden hose.

What amperage does this unit draw?

Asked by Nick January 20, 2021
1
Answer

The 21 series pump surges at approximately 4 amps and will run at right around 2 amps.

Is this pump suitable for a 12 gallon tow behind lawn sprayer? Probobly running for up to 15 minu...

Asked by Timothy July 31, 2020
1
Answer

It would be suitable with the understanding that the motor is an intermittent rated motor. Max I would run it straight would be right at 15 minutes. Then the pump would need to cool down for at least 15-20 minutes.

A customer asked what the input voltage is?

Asked by crash June 17, 2020
1
Answer

Voltage- 12v. Its in the description.

What are the battery requirements?

Asked by Mark August 15, 2020
0
Answers

what is the power source. 12 volt or plug in?

Asked by john April 22, 2020
0
Answers

Customer Reviews

  • 9 Customer Reviews
  • 4.6 out of 5 stars overall
0% of customers recommended.
Overall Ratings
5star-icon(5)
4star-icon(4)
3star-icon(0)
2star-icon(0)
1star-icon(0)
Sort By:
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Looks good, haven't hooked up yet because it's under the...
Looks good, haven't hooked up yet because it's under the tree....
Was this helpful?
0
0
That's exactly what it's supposed to do it's pretty good...
That's exactly what it's supposed to do it's pretty good little pump
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Performed without a hitch. Powered with jumper cables from...
Performed without a hitch. Powered with jumper cables from my running truck. Used to drain and refill ballast in rear tractor tire. Worked very well.
Was this helpful?
0
0
the pump is alright for what its ment for. i...
the pump is alright for what its ment for. i misunder stood ; ithought it would fit on a 15 gal sprayer and it will but the rotation is backwards. it was my falt.so i did not return it i will use it for somthing else
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Works as expected I've used almost everyday since I got...
Works as expected I've used almost everyday since I got it maybe 2 weeks to shower in the morning the only thing is that it has to be primed so everytime I switch container or refill and take the hose out that pulls the water I have to put water in the hose to start suction even with that the this is great it was probably in description but it was the only unexpected issue I had connected to the car cigarette lighter with and 12' extension cigarette lighter extension cord so I can use in back of my vehicle recommend small and works great
Was this helpful?
0
0
It works great and I wish I had another one...
It works great and I wish I had another one for back up. Home Depot had the best price of all.
Was this helpful?
0
0
