Internet #312084370

Model #SFDP1-055-060-51

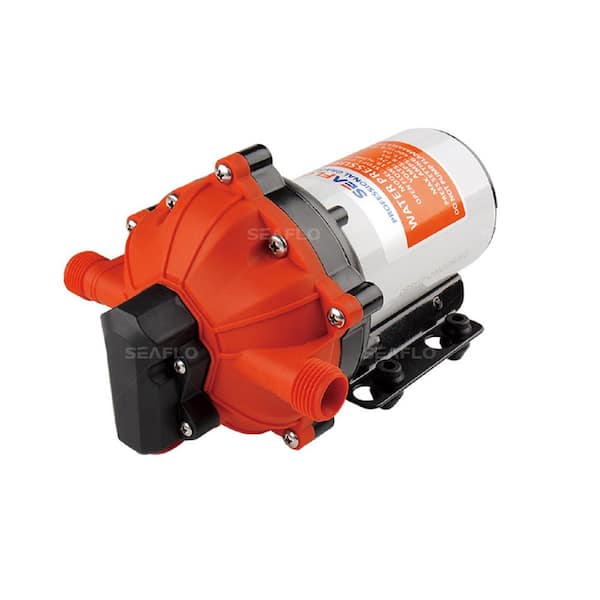

12-Volt 0.12 HP 5.5 GPM Water Pressure Diaphragm Pump

  • Designed for freshwater and saltwater applications
  • Pressure switch enables automatic pump operation
  • Thermally protected 0.12 HP motor ensures safe operation
  • See More Details

Frequently Bought Together

+
+
Price:
$10999

Product Overview

SEAFLO 12-Volt General Purpose 5.5 GPM Automatic-Demand Utility Pump. This general purpose pump can be used for a wide variety of applications. It is designed for Agricultural Spraying, Transferring Liquid Fertilizers, Herbicides, or Pesticides, Fluid Transfer, RV Water Supply, Boat Water Supply, Salt Water Washdown, Remote Cabin Water Supply, Industrial Applications, Draining Water Heaters, Draining Aquariums, Pumping Out Basements, Suctioning Water From Rivers or Streams, Transferring Water to an RV, Pumping Out Stock Tanks or other Liquid Transfer Applications. The built-in pressure switch turns the pump on-and-off automatically. If you install a valve, or hose on the outlet side, when you open the valve the pump automatically turns on. When you close the valve the pump will automatically turn off. This is a diaphragm pump, which makes it superior to an impeller pump because there is no impeller to wear out or fail. Also this greatly improves the pumps ability to reach higher pressure levels. This pump is Self-Priming, run-dry safe, and has very quiet operation and low power draw. The inlet and outlet ports are 1/2 in. threaded male fittings. The pump also comes with an intake strainer, and two 1/2 in. barbed fittings. This pump has a built-in check valve which prevents backflow and allows for city water connection if being used in an RV water supply application. This pump is NOT submersible. Intermittent duty. It comes with a 4-Year Warranty.
  • California residents
  • Ignition protected

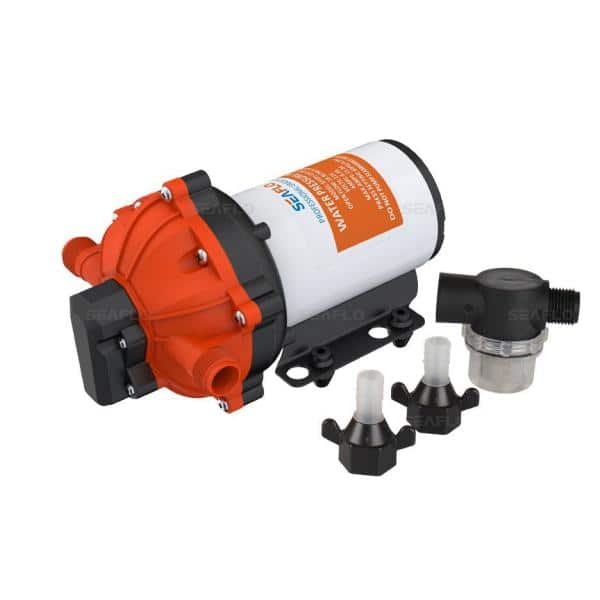

  • 2 barbed fittings and 1 strainer included
  • Valve: EPDM
  • Diaphragm: Santoprene
  • Can be used for salt and fresh water
  • 16 AWG
  • Control type: pressure switch factory set at 60 psi
  • 5 chamber positive displacement diaphragm pump
  • Built-in check valve
  • Housing material: nylon/polypropylene
  • Capable of supplying multiple fixtures
  • For use with non-flammable liquids
  • 9 vertical feet suction lift
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Transfer Pumps

12-Volt 3.0 GPM 0.064 HP Water Pressure Pump
current product
12-Volt 0.12 HP 5.5 GPM Water Pressure Diaphragm Pump
1/2 HP Non-Submersible Transfer Pump360 Pony Pump Series 1/10 HP Non-Submersible Self-Priming Transfer Pump
BrandSEAFLOSEAFLOSuperior PumpLittle Giant
Name12-Volt 3.0 GPM 0.064 HP Water Pressure Pump12-Volt 0.12 HP 5.5 GPM Water Pressure Diaphragm Pump1/2 HP Non-Submersible Transfer Pump360 Pony Pump Series 1/10 HP Non-Submersible Self-Priming Transfer Pump
Price
$5999
/box
$10999
/box
$12485
$14077
Ratings
(6)
(7)
(37)
(15)
Power TypeElectricElectricElectricElectric
Voltage12v12v120v115v
Discharge Flow @ 0 ft. (gallons/hour)1803301500360
Power Type RequiredDCDCACAC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
11.5 in
Product Height (in.)
11.5 in
Product Width (in.)
6.26 in

Details

Amperage (amps)
8.5
Cord Length (ft.)
1
Discharge Flow @ 0 ft. (gallons/hour)
330
Discharge Flow @ 0 ft. (gallons/min)
6
Discharge Flow @ 10 ft. (gallons/hour)
330
Discharge Flow @ 10 ft. (gallons/min)
6
Features
Run-Dry Capable,Self-Priming,Thermal Overload Protection
Head Pressure (ft.)
120
Housing Material
Metal
Included
Mounting Bracket,Pump Hookup
Inlet Connection
Threaded male
Maximum Discharge Flow (gallons/hour)
330
Maximum Horsepower (hp)
0.12
Maximum Pressure (psi)
60
Maximum Working Temperature (F)
140
Minimum working temperature (F)
33
Outlet Connection
Threaded male
Pack Size
1
Power Type
Electric
Power Type Required
DC
Product Weight (lb.)
6.7 lb
Pump Switch Type
Diaphragm,Pressure
Returnable
180-Day
Vertical Lift (ft.)
6
Voltage
12v

Warranty / Certifications

Certifications and Listings
CSA Certified,CSA Listed,CSA-US Certified,ISO Certified,USCG Certified
Manufacturer Warranty
4 Year Warranty

Questions & Answers

7Questions10Answers

What is the lift of this pump, how high can it pump? I need a 12 volt pump that will lift a 5/8 c...

Asked by buddy May 26, 2020
2
Answers

If you’re talking about pushing the water that has gone through the pump, it can easily do it. But if you’re talking about on the suction side, I don’t think so, but you might want to contact the manufacturer.

Can bleach be ran through this?

Asked by Jean February 15, 2020
2
Answers

Bleach water should be fine but if you are talking about pure bleach, only temporarily and then run water through the pump to clean it out. I would not let it sit in there for more than an hour.

I don't see a cord. Is this rechargeable?

Asked by Scott June 11, 2020
2
Answers

Hello Scott. This is not a rechargeable pump. It needs a hardwired 12v that can handle connection a 20 amp load.

What do the 12 volt connectors look like, how about a picture?

Asked by larry May 5, 2020
1
Answer

See photo

Can I power this pump with the battery in my car? How do I hook it up?

Asked by tygereye January 21, 2021
1
Answer

Yes it is a 12v pump. You could hook up in a number of ways. Cigarette lighter adapter. Power points in car or truck, or battery direct.

Can this be used to flush tankless water heater with vinegar? This is the closest motor I could f...

Asked by Shikhar October 17, 2020
1
Answer

The 5.5 gpm pump will more than likely encounter a cycling issue during operation as there would be a 1.5 gpm pressure side restriction. I would look at the 42 series. You will be a gallon per minute shy but I dont think that will be an issue as you will be delivering 3 gpm volume at pressure without cycling issues.

Whats the psi coming out of this pump, 60?

Asked by Dustin May 31, 2020
1
Answer

This pump is a non adjustable 60 psi of water pressure

Customer Reviews

  • 7 Customer Reviews
  • 4.2 out of 5 stars overall
67% of customers recommended.
Overall Ratings
5star-icon(4)
4star-icon(2)
3star-icon(0)
2star-icon(0)
1star-icon(1)
Sort By:
I have to write a review on this pump after I am initiating my second return. I thought the first...
Ease of installation :
4
Quality :
1
Value :
1
I have to write a review on this pump after I am initiating my second return. I thought the first one was a fluke. The first pump had an on/off pressure set pretty high and the pump never turned off. The more recent one does not come on automatically until the pressure is very low and now after a few days of operation it does not want to shut off either, just run down the battery bank. It is important to note that I verified with the manufacturer that the 55 series pump does not have and adjustable pressure switch as it is sometimes advertised to have.
Was this helpful?
3
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Works great, very happy with the purchase....
Works great, very happy with the purchase.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
very good pressure runs A 900 SQ ft home
very good pressure runs A 900 SQ ft home
Was this helpful?
0
0
Works good...
Works good
Was this helpful?
0
0
Very Reliable
previously bought this pump elsewhere and it has been working wonders. I decided I should get another one as a backup just in case anything happens. this thing is heavy duty and puts out a ton of water in my RV. if your in the market for a water pressure pump this is the one
Was this helpful?
1
0
