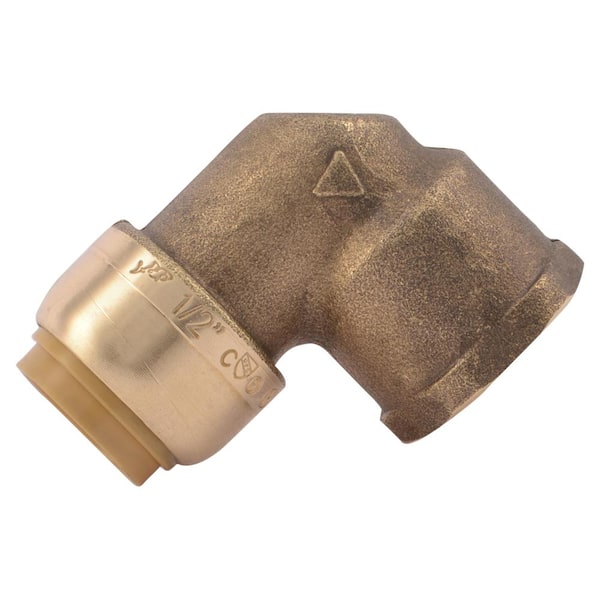

1/2 in. Push-to-Connect x FIP Brass 90-Degree Elbow Fitting

(390)Questions & Answers (7)
$9.47
  • Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE Pipe
  • Requires no special tools to install on hot or cold water lines
  • Works on wet lines, rotatable after installation & removable
  • View More Details
Store
0 in stock
caret

Product Details

SharkBite 1/2 in. Push-to-Connect x FIP Brass 90-Degree Elbow Fitting is the fastest way to connect PEX, Copper, CPVC, PE-RT, or HDPE pipe in any combination. No soldering, clamps, unions, glue, or special tools required. Simply insert the pipe and the teeth bite down and grip tight, while a specially formulated O-ring compresses to create a watertight seal. Changes can easily be made by rotating the fitting after installation. Removing the fitting is just as fast using a disconnect tool so fittings and valves can be easily changed or reused. Designed with stainless steel gripping teeth for a secure connection, chlorine-resistant O-ring for a long-lasting seal and backed by a 25-year warranty.
  • Push-to-Connect fittings are ideal for installation in tight spaces
  • Rated to 200°F and 200 PSI
  • Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
  • Can be installed on wet or dry lines and pressure tested immediately, no waiting on soldered joints to cool or solvents to dry
  • Low-lead DZR corrosion resistant brass body
  • Code approved, IAPMO listed, for details see Specifications
  • 25-Year Warranty when used with PEX, copper, CPVC & PE-RT Pipe
  • 5-Year Warranty when used with SDR-9 HDPE Pipe
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200°F and 200 psi
  • 1/2 in. pipe insertion depth = 15/16 in.
  • Shop all SharkBite Fittings
  • Shop the SharkBite Polyethylene Pipe Collection
  • Return Policy
  • California residents
caret

Specifications

caret

Questions & Answers

7Questions
caret
Q:Canopy used to connect the shower head pipe
by|Mar 5, 2023
3 Answers
Answer This Question

A:  Yes

by|Mar 6, 2023

    A:  Hi, The SharkBite 1/2 in. Push-to-Connect x FIP Brass 90-Degree Elbow can be used to connect to a shower pipe provided you have the same thread types. If you have any more questions you can call tech support at 877-700-4242. (Kind regards,)

    by|Mar 6, 2023

      A:  I wouldn’t use this for a shower head. you have to anchor the piping for a shower head to a stud in the wall

      by|Mar 5, 2023
        caret
        Q:Do i use teflon tape on the threads for the fittings to seal?
        by|Sep 24, 2022
        3 Answers
        Answer This Question

        A:  Yes for threaded side you would want to use tape make sure not to overlap tape

        by|Sep 29, 2022

          A:  Hi, The SharkBite 1/2 in. Push-to-Connect x FIP Brass 90-Degree Elbow will need Teflon tape for the fitting to seal. If you have any more questions you can call tech support at 877-700-4242. (Kind regards,)

          by|Sep 27, 2022

            A:  Yes

            by|Sep 25, 2022
              caret
              Q:Will these connectors work on PEX Type A (PEX-A) pipe?
              by|Aug 2, 2022
              2 Answers
              Answer This Question

              A:  Hi, The SharkBite 3/4 in. Push-to-Connect x FIP Brass 90-Degree Elbow can be used with PEX - A if the PEX - A is rated (ASTM F876). If you have any more questions you can call tech support at 877-700-4242. (Kind regards,)

              by|Aug 3, 2022

                A:  yes

                by|Aug 8, 2022
                  caret
                  Q:Can I use this to connect to PVC pipe?
                  by|Apr 7, 2021
                  2 Answers
                  Answer This Question

                  A:  Yes, you could use it for PVC.

                  by|Oct 19, 2022

                  A:  Hello - Our brass SharkBite Push-to-Connect fittings with the tan colored release collars are used to connect two pieces of pipe together that are CTS (Copper Tubing Size) comprised of any combination of PEX, rigid copper, CPVC, PE-RT, and HDPE pipe. These fittings will not work with schedule 40, 80, or 120 PVC piping, as PVC is IPS not CTS. We do offer a transition coupling that goes from PVC to CTS that is identified with a white colored release collar. If you have any other questions or need further assistance please feel free to reach out to Tech Support at 1 (877) 700-4242. Thank You.

                  by|Jan 2, 2023
                    Showing 1-4 of 7
                    caret

                    Customer Reviews

                    4.8 out of 5
                    (390)
                    • 4.8
                      out of 390 reviews
                    • 93%recommend this product
                    Filter by:
                    Showing 1-10 of 390 reviews
                    Mar 23, 2022
                    Convenient Easy plug and Fix...
                    Convenient Easy plug and Fix
                    by
                    • Verified Purchase
                    Jul 14, 2020
                    This SharkBite product worked perfect for me. I was replacing a broken outdoors water faucet, ins...
                    This SharkBite product worked perfect for me. I was replacing a broken outdoors water faucet, installed by the previous owner. and attached it 1/2" copper pipe. After copper pipe prep, the SharkBite connection was tight and no leaks first attempt. Still working....no leaks..... went and doubled check it again before completing this review.... still works no issues :-)
                    by
                    • Verified Purchase
                    • Recommended
                    May 19, 2020
                    Wonderfully Easy ! While this costs much more than a solder joint (assuming you already have all ...
                    Wonderfully Easy ! While this costs much more than a solder joint (assuming you already have all the other required equipment like a torch, file, flux etc), this makes it so quick and easy. The added bonus is both ends rotate so if your pipes aren't 100% vertical/horizontal it doesn't matter.
                    by
                    • DIY
                    Feb 11, 2020
                    I have used the Shark Bite pieces in my RV and they work great!
                    I have used the Shark Bite pieces in my RV and they work great!
                    by
                    • Verified Purchase
                    • Recommended
                    Nov 2, 2019
                    The Best Ever! Honestly saved me hours and hours of frustration!! We bought these as we were chan...
                    The Best Ever! Honestly saved me hours and hours of frustration!! We bought these as we were changing out our shower handle unit. Sounded like a simple job... Hahaha! Plumbing has never, ever turned out to be a good idea for me to do. Lol In stepped my life saving SharkBites!! Thank you SharkBite inventor!! We had to work in a tiny hole in the wall behind our shower, to cut old copper plumbing, and install our new unit. I honestly would have had to knock down my living room wall, or at least put a large hole in the wall to solder this in without SharkBite! SharkBite saved me hours and tears. I highly highly recommend these. Perfect seal. No leaks.
                    by
                    • DIY
                    • Verified Purchase
                    • Recommended
                    May 28, 2019
                    It's awesome . No need to weld . Just some pressure an that's it.
                    It's awesome . No need to weld . Just some pressure an that's it.
                    by
                    • Verified Purchase
                    • Recommended
                    Mar 20, 2019
                    Easy to use no leaks exactly what I expected
                    Easy to use no leaks exactly what I expected
                    by
                    • Verified Purchase
                    • Recommended
                    Jan 15, 2019
                    Makes the job so much easier and quicker, definitely worth the price.
                    Makes the job so much easier and quicker, definitely worth the price.
                    by
                    • Verified Purchase
                    • Recommended
                    Jan 8, 2019
                    Yea, I am just not the plumber type, so I guess it is good, although I have not put it under high...
                    Yea, I am just not the plumber type, so I guess it is good, although I have not put it under high pressure yet. Simple: Clean the pipe, push it in untill you hear a loud click, installed. A LOT easier than soldering pipe together!
                    by
                    • DIY
                    • Verified Purchase
                    • Recommended
                    Dec 26, 2018
                    Product was incredibly easy to use, just push down to seat and pull up to secure to pipe.if you n...
                    Product was incredibly easy to use, just push down to seat and pull up to secure to pipe.if you need to remove you can use the removal tool which is very inexpensive. No cutting or tools needed.
                    by
                    • Verified Purchase
                    • Recommended
                    Showing 1-10 of 390 reviews
