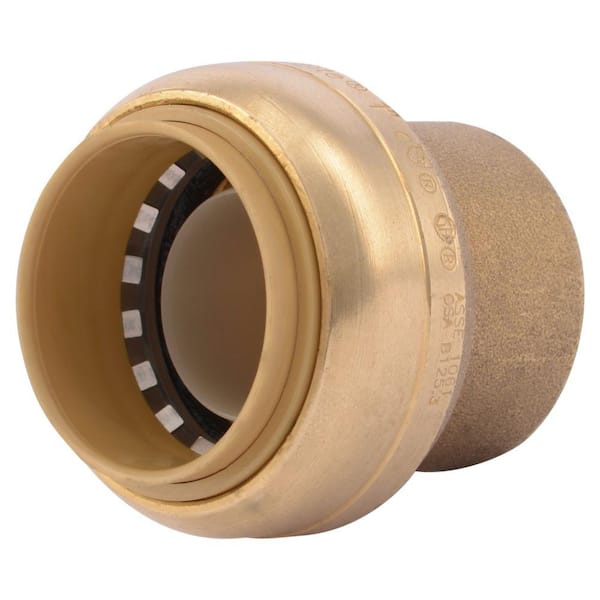

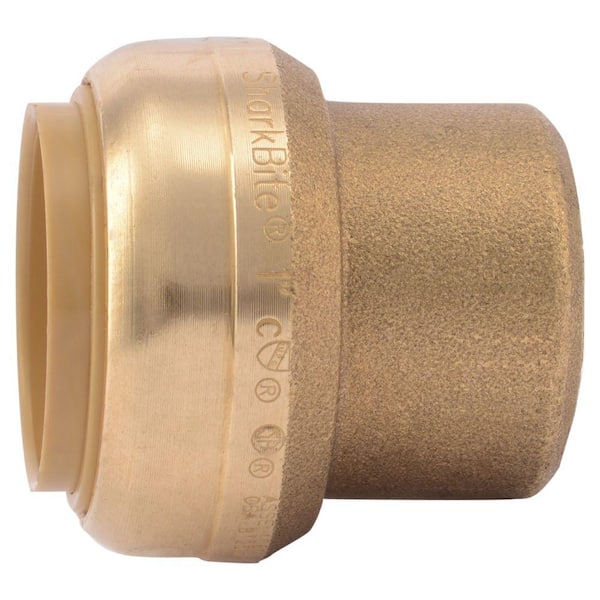

1 in. Push-to-Connect Brass End Stop Fitting

  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Push to Connect system, quick and easy installation in seconds
  • See More Details

Frequently Bought Together

+
+
Price:
$1298

Product Overview

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

No Tools Required

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Versatility

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap.

Easy Fast Install

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap. Allows fot the ability to work in tight spaces without having to make structural changes.

Man working with SB

Approved for Underground

Approved for burial applications (wrapping required when burying underground)

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Error-Proof

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

Wet or Dry Applications

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

SharkBite owns the entire manufacturing process, from raw materials to finished product.

Quality you can trust

SharkBite owns the entire manufacturing process, from raw materials to finished product

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe.

Versatile Fittings Collection

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe

Listed by IAPMO and design certified.

Certified

Listed by IAPMO and design certified and listed to ASSE 1061, CSA B125.3, NSF 372, NSF/ANSI 61, ASTM E84, CAN/ULC S102.2, ASTM, E119, CAN/ULC S101,UL289

Rated to 200°F and 200 PSI

Working Temperature and Pressure

Rated to 200°F and 200 PSI

Made of durable DZR brass

Material

Made of durable DZR brass

Approved for behind-the-wall applications

Behind the Wall

Approved for behind-the-wall applications

25 Year System Warranty

Reliability

25 Year System Warranty

The 1 in. SharkBite Push-to-Connect Endstop is the easiest way to cap copper, PE-RT, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Perfect solution for pressure testing a home and they are reusable. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.
  • California residents
  • Lead free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC, or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-Connect fittings require no solder, glue, unions, or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200F and 200 psi
  • 1 in. Pipe Insertion Depth = 1-5/16 in.
  • Shop all SharkBite Fittings
  • Shop the SharkBite Polyethylene Pipe Collection

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Brass Fittings

current product
1 in. Push-to-Connect Brass End Stop Fitting
1 in. Push-to-Connect Brass Coupling Fitting1 in. x 3/4 in. Push-to-Connect Brass Reducing Coupling Fitting1 in. Push-to-Connect Brass 90-Degree Elbow Fitting
BrandSharkBiteSharkBiteSharkBiteSharkBite
Name1 in. Push-to-Connect Brass End Stop Fitting1 in. Push-to-Connect Brass Coupling Fitting1 in. x 3/4 in. Push-to-Connect Brass Reducing Coupling Fitting1 in. Push-to-Connect Brass 90-Degree Elbow Fitting
Price
$1298
$1367
$1394
$1565
Ratings
(539)
(1363)
(185)
(941)
Fitting 1 size1"1"1"1"
Fitting or Connector TypeCapCouplingCouplingElbow
ConnectivityPush FitPush FitPush FitPush Fit
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
FeaturesRemovableRemovableRemovableRemovable
Pack Size1111
MaterialBrassBrassBrassBrass
View ProductView ProductView ProductView Product

Specifications

Dimensions

Fitting 1 size
1"
Single Fitting Size
1"

Details

Application
Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Cap
Fitting/ Connector Collection
Brass
Material
Brass
Maximum working pressure (psi)
200.0
Maximum Working Temperature (F)
200
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.284
Reducing Fitting
No
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

23Questions63Answers

I'm removing the bathroom in my basement. can I use these end caps to plug those existing copper lines?

Asked by Liz February 2, 2020
10
Answers

Yes

Does the open end fit 1 1/4 copper or 1 1/4 pex?

Asked by chaz November 15, 2019
2
Answers

IT WAS NEVER DELIVERED

can thos be useful to dead end pex tubing

Asked by jack October 4, 2019
6
Answers

Yes

Will this cap work to cap off the tub part of a rough-in valve?

Asked by AlanB April 5, 2019
6
Answers

Yes it can

is there a push to connect fitting made to work on 1/2" galvanized pipe?

Asked by larry January 31, 2019
6
Answers

No, these do not work on galvanized

can you use with threaded pipe?

Asked by HomePro October 17, 2018
3
Answers

I would not use it on a threaded pipe end cut the threads off first as the threads will create a weak point with this product

Will this work on 3/8" OD Type "L" copper tubing?

Asked by ghermond September 19, 2018
6
Answers

Yes

Can the end stop be used on water heater copper pipes?

Asked by Albert August 21, 2018
9
Answers

Yes

Do you have a cap for a quick connect end? See photo... (I don't want to use the side spray featu...

Asked by Kitty May 7, 2018
5
Answers

yes

Can these be used on a threaded copper backflow pipe

Asked by holl May 4, 2018
10
Answers

The product is not listed for use on threaded pipe. But you can just use a threaded cap.
