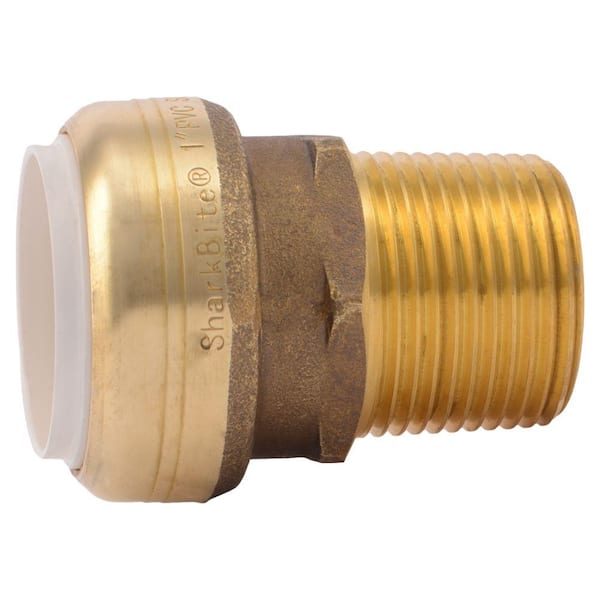

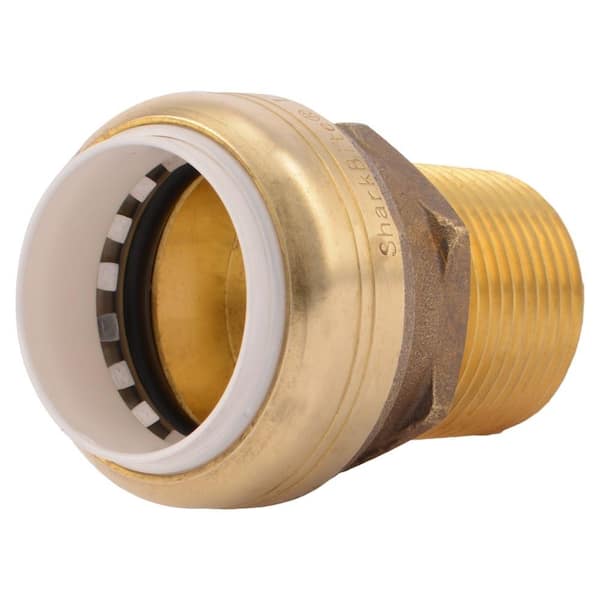

1 in. Push-to-Connect PVC IPS x 1 in. MIP Brass Adapter Fitting

$1797
  • Fastest way to transition from PVC pipe to PEX, Copper, CPVC pipe
  • Requires no special tools to install on hot or cold-water lines
  • Works on wet lines, rotatable after installation, and removable
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$1797

Product Overview

SharkBite Push-to-connect PVC transition fittings are the fastest way to transition from PVC or IPS (iron pipe size) pipe to PEX, copper, CPVC, PE-RT, or HDPE pipe. No soldering, clamps, unions, glue, or special tools are required. Simply insert the pipe, and the teeth bite down and grip tight, while a specially formulated O-ring compresses to create a watertight seal. The fitting has a white-collar for the PVC pipe and a tan collar for all CTS (copper tube size: PEX, copper, CPVC, PE-RT, HDPE) pipes. Changes can easily be made by rotating the fitting after installation. Removing the fitting is just as fast using a disconnect tool so fittings can be easily changed or reused. Designed with stainless steel gripping teeth for a secure connection, a chlorine-resistant O-ring for a long-lasting seal, and backed by a 25-year warranty.
  • Compatible with schedule 40, 80, 120 PVC pipe
  • Push-to-connect fittings are ideal for installation in tight spaces
  • Rated to 200 degrees Fahrenheit and 200 PSI
  • Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
  • Can be installed on wet or dry lines and pressure tested immediately, no waiting on soldered joints to cool or solvents to dry
  • Low-lead DZR corrosion-resistant brass body
  • PVC end of fitting (white-collar end) can be removed with PVC disconnect clip (UIP710, UIP712, UIP714)
  • Code approved, IAPMO listed, for details see Specifications
  • 25-Year warranty when used with PVC to PEX, copper, CPVC & PE-RT pipe
  • 5-Year Warranty when used with SDR-9 HDPE pipe
  • Listed by IAPMO and designed certified and listed to NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372
  • Meets all UPC, IPC and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • 1 in. Pipe Insertion Depth = 1-5/16 in.
  • Shop all SharkBite Fittings
  • Shop the SharkBite Polyethylene Pipe Collection
  • California residents

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Double Fitting Size
1" x 1"
Fitting 1 size
1"
Fitting 2 size
1"
Product Length (in.)
2.4

Details

Application
Potable Water
Bullet Spec 01
Compatible with schedule 40, 80, 120 PVC pipe
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
PVC
Connection 1
PTC
Connection 2
MPT
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Adapter
Fitting/ Connector Collection
Brass
Material
Brass
Maximum working pressure (psi)
200
Maximum Working Temperature (F)
200
Number in Package
1
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.328489
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.
