3/4 in. x 1/2 in. Push-to-Connect Reducing Ball Valve

$2297
  • Easiest way to install a new or replacement shut-off ball valve
  • Works on any combination of Copper, PE-RT, CPVC, PEX Pipe
  • Push-it connections need no solder, glue, unions, or tools
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$2297

Product Overview

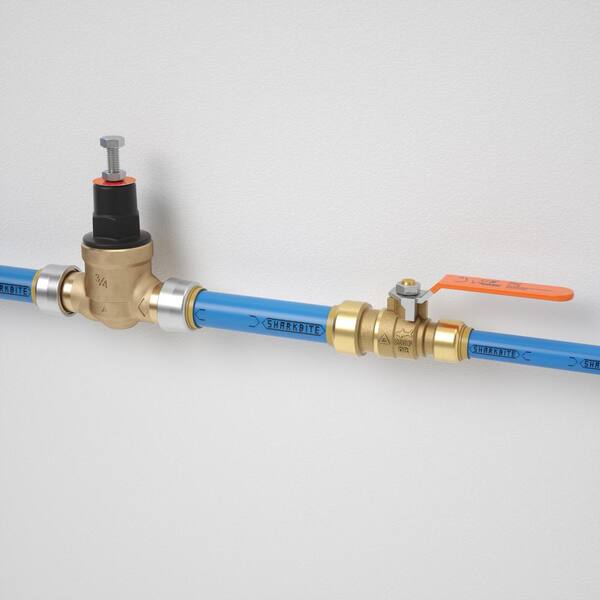

The 3/4 in. x 1/2 in. SharkBite push-to-connect reducing ball valve is the easiest way to install a new or replacement shut-off ball valve when transitioning from 3/4 in. pipe down to 1/2 in. The single lever control allows for easy operation and the valve is perfect for potable water and hydronic applications where a shut-off is needed. SharkBite fittings allow you to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. Get SharkBite and get a grip on your next plumbing project.
  • Lead free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 62
  • Meets all UPC, IPC and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200°F and 200 psi
  • Shop all SharkBite Fittings
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

3/4 in. x 1/2 in. Push-to-Connect Reducing Ball Valve

Compare Similar Ball Valves

Best Seller1/2 in. Brass Push-to-Connect Ball Valve
current product
3/4 in. x 1/2 in. Push-to-Connect Reducing Ball Valve
3/4 in. Push-to-Connect PVC IPS x 3/4 in. CTS Brass Ball Valve3/4 in. x 1/2 in. Brass Alloy Lead-Free Press x MIP Union Full Port Ball Valve
BrandSharkBiteSharkBiteSharkBiteNIBCO
Name1/2 in. Brass Push-to-Connect Ball Valve3/4 in. x 1/2 in. Push-to-Connect Reducing Ball Valve3/4 in. Push-to-Connect PVC IPS x 3/4 in. CTS Brass Ball Valve3/4 in. x 1/2 in. Brass Alloy Lead-Free Press x MIP Union Full Port Ball Valve
Price
$1847
$2297
$2497
$3667
Ratings
(1032)
(88)
(22)
(0)
ConnectionPTC x PTCPTCPTCPress Fit
Valve Inlet Diameter (in.)1/23/43/43/4
Valve Outlet Diameter (in.).50.50.75.50
Inlet Diameter (In.)1/23/43/43/4
Compatible Pipe MaterialMulti-PurposeMulti-PurposeMulti-PurposeBrass
MaterialBrassBrassBrassBrass
Valve UseWaterWaterWaterWater
Outlet Diameter (In.)1/21/23/41/2
ApplicationPotable WaterPotable WaterHydroponics,Potable WaterNon-Potable Water,Potable Water
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
3/4
Outlet Diameter (In.)
1/2
Product Depth (in.)
1.27
Product Height (in.)
1.27
Product Length (in.)
3.20
Product Width (in.)
1.27 in
Valve Inlet Diameter (in.)
3/4
Valve Outlet Diameter (in.)
.5

Details

Application
Potable Water
Compatible Pipe Material
Multi-Purpose
Connection
PTC
Features
Lead Free
Handle Style
Lever
Indoor/Outdoor
Indoor
Material
Brass
Maximum Pressure (psi)
200
Maximum Working Temperature (F)
200
Pack Size
1
Product Weight (lb.)
.46
Returnable
90-Day
Valve Type
Ball
Valve Use
Water

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4243
