Internet #302741118

Model # QG220

0783643148499

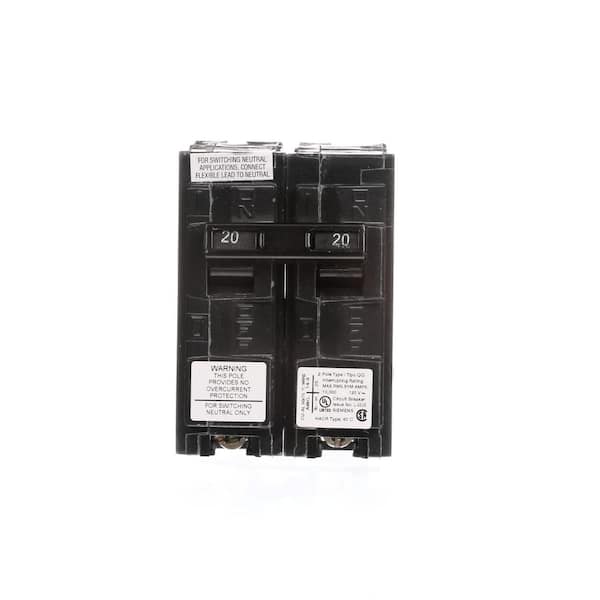

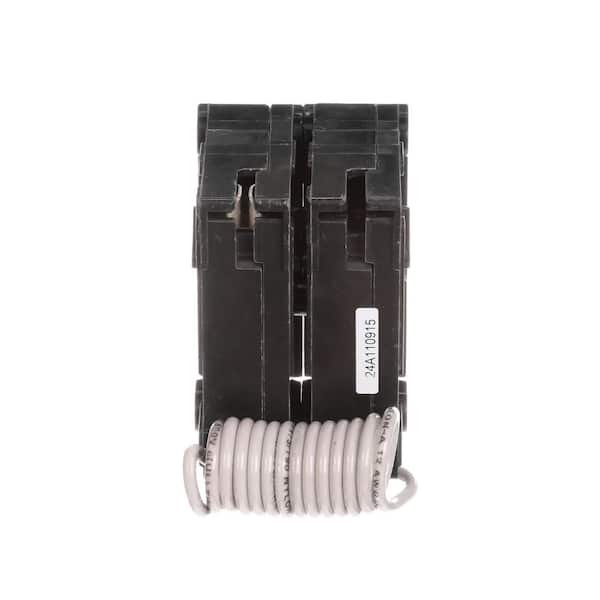

20 Amp 2-Wire Common Trip Switch Neutral Breaker

  • UL Listed as Switching Duty rated
  • For use where all conductors are required to be disconnected
  • Suitable for 120V AC Fluorescent Lighting
$ 36 01
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • UL Listed as Switching Duty rated
  • For use where all conductors are required to be disconnected
  • Suitable for 120V AC Fluorescent Lighting
Switching neutral breakers are used when all conductors are required to be disconnected. There is an additional pole connected to each switching neutral breaker that provides a means of disconnecting the neutral when the breaker is tripped or open. The additional pole does not connect to and is not energized by the bus bar. Siemens strongly recommends against the use of "used" breakers. The installation of used breakers in a Siemens panel will void the warranty on the panel. Siemens does not sell used breakers and has not approved any 3rd party sellers to do so.
  • Allows for disconnecting of the neutral when breaker is open
  • BG switch neutral
  • 10kA rating
  • UL Type BG breaker

Product Overview

  • UL Listed as Switching Duty rated
  • For use where all conductors are required to be disconnected
  • Suitable for 120V AC Fluorescent Lighting
Model #: QG220
Internet #: 302741118

Switching neutral breakers are used when all conductors are required to be disconnected. There is an additional pole connected to each switching neutral breaker that provides a means of disconnecting the neutral when the breaker is tripped or open. The additional pole does not connect to and is not energized by the bus bar. Siemens strongly recommends against the use of "used" breakers. The installation of used breakers in a Siemens panel will void the warranty on the panel. Siemens does not sell used breakers and has not approved any 3rd party sellers to do so.

  • Allows for disconnecting of the neutral when breaker is open
  • BG switch neutral
  • 10kA rating
  • UL Type BG breaker

Compare Similar

Compare Similar Products
Brand Siemens Siemens Siemens Siemens
Name 20 Amp 2-Wire Common Trip Switch Neutral Breaker 15 Amp 2-Wire BG Switch Neutral Breaker 100 Amp Double-Pole Type QPH 22kA Circuit Breaker 200 Amp Double-Pole 10kA Type QPP Circuit Breaker
Price
$36.01
$41.43
$61.75
$64.87
Ratings (0) (0) (5) (8)
Interruption Type Standard Trip Standard Trip Standard Trip Standard Trip
Product Width (in.) 4.4 4.4 3.54 5.25 in
Maximum Amperage (amps) 20 15 100 200
Power Distribution Features No Additional Features No Additional Features No Additional Features No Additional Features
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
5.6
Product Height (in.)
0.80
Product Width (in.)
4.4

Details

Breaker Type
Double Pole
Electrical Product Type
Breaker
Interruption Type
Standard Trip
Maximum Amperage (amps)
20
Mounting Type
Plug In
Number of Poles
2
Pack Size
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
0.80lb
Returnable
90-Day
Voltage (volts)
120

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
1 year

Specifications

Dimensions

Product Depth (in.)
5.6
Product Height (in.)
0.80
Product Width (in.)
4.4

Details

Breaker Type
Double Pole
Electrical Product Type
Breaker
Interruption Type
Standard Trip
Maximum Amperage (amps)
20
Mounting Type
Plug In
Number of Poles
2
Pack Size
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
0.80lb
Returnable
90-Day
Voltage (volts)
120

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
1 year
