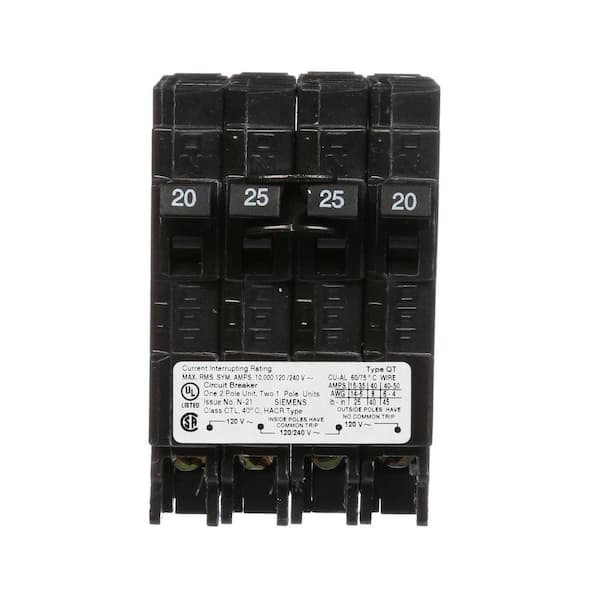

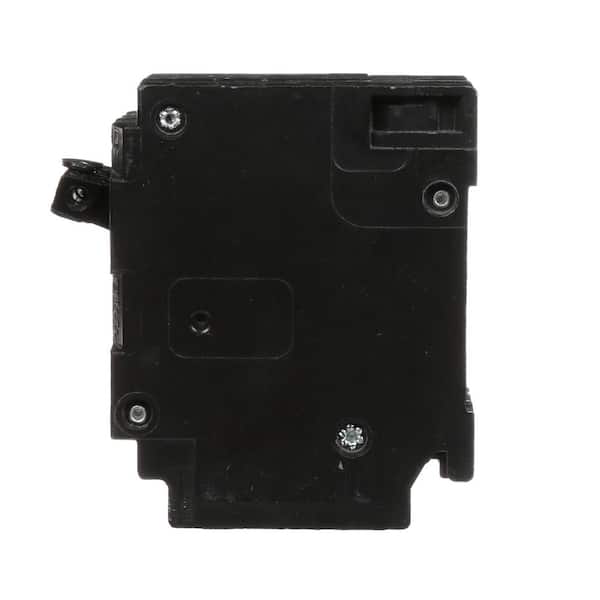

25 Amp Double-Pole and (2) 20 Amp Single-Pole Type QT Triplex Circuit Breaker

$3700
  • For use in Siemens panels that accept type QT circuit breakers
  • Triplex breakers provide 1 inner 2-pole/2 outer 1-pole breakers
  • Requires 2-panel spaces
  • View More Details

Frequently Bought Together

+
+
Price:
$3700

Product Overview

Siemens Triplex Type QT breakers are a 1/2 in. frame per pole and are suitable for use in Siemens panels that allow CTL type QT breakers. This Breaker has (2) 20 Amp Single Pole(s) Breakers and (1) 25 Amp Double Pole Breaker in one 2 in. housing. Siemens strongly recommends against the use of used breakers. The installation of used breakers in a Siemens panel will void the warranty on the panel. Siemens does not sell used breakers and has not approved any 3rd party sellers to do so. Siemens type QT dual circuit breakers are 1 in. wide and consist of (2) 1-pole breakers, in varying combinations of ampere ratings from 15 to 30 Amp. Type QT quad circuit breakers are 2 in. wide and consist of either (1) 2-pole and (2) 1-pole, or (2) 2-pole breakers. 2-pole constructions range from 15-50 Amps and are available with internal common trip. All type QT circuit breakers are plug-in style and load terminals are provided with the units. They are rated for 120/240-Volt AC and calibrated for 40C maximum ambient applications. The standard interrupting rating is 10k AIC.
  • One 25 Amp double pole and two 20 Amp single pole circuit breakers
  • Triplex 1/2 in. frame
  • Plug in type
  • Space saving design allows 2 poles to fit in a 1 in. panel space
  • 10K AIC series rating
  • 120/240 VAC
  • UL listed
  • CSA certified
  • HACR rated
  • Designed for residential/commercial applications
  • Learn More About Circuit Breakers Here in our Buying Guide.
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
3 in
Product Height (in.)
3 in
Product Width (in.)
2 in

Details

Breaker Type
Quad
Electrical Product Type
Breaker
Interruption Type
Standard Trip
Maximum Amperage (amps)
25
Mounting Type
Plug-On
Number of Poles
4
Pack Size
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
0.838 lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Lifetime
