Model # S4040B1200P

Internet #203027380

Store SKU #647278

Store SO SKU #516939

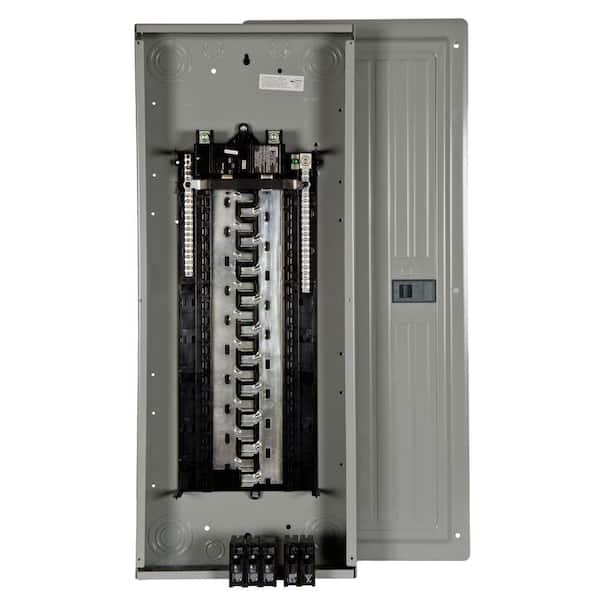

Siemens ES Series 200 Amp 40-Space 40-Circuit Main Breaker Load Center Value Pack
0040892651317

Siemens

ES Series 200 Amp 40-Space 40-Circuit Main Breaker Load Center Value Pack

  • Includes (3) Q120U and (1) Q230U circuit breaker
  • Ground bars sold seperately
  • Perfect panel for residential/commercial power distribution
$12900 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Includes (3) Q120U and (1) Q230U circuit breaker
  • Ground bars sold seperately
  • Perfect panel for residential/commercial power distribution
This Siemens ES Series Load Center is the smart choice for contractors when value and quick installation are of highest priority. The ES series Value Pack Load centers feature aluminum bussing, 10 year warranty, 100% neutrals, 3 Q120U circuit breakers and 1 Q230U circuit breaker and the ground bar is not included. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
  • Single-phase, 200 Amp main breaker load center with 40 spaces/40 circuits
  • Value pack load center includes 3 single pole 20-Amp circuit breakers and 1 double pole 30-Amp circuit breaker
  • Aluminum bus
  • Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
  • Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Single sided inboard neutral on 24 circuits and below; dual on 30 circuits and above
  • Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
  • A rigid, sturdy base pan provides the ruggedness required for the harshest applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Learn More About Electrical Panels Here in our Buying Guide.

Product Overview

  • Includes (3) Q120U and (1) Q230U circuit breaker
  • Ground bars sold seperately
  • Perfect panel for residential/commercial power distribution
Model #: S4040B1200P
Sku #: 647278
Internet #: 203027380

This Siemens ES Series Load Center is the smart choice for contractors when value and quick installation are of highest priority. The ES series Value Pack Load centers feature aluminum bussing, 10 year warranty, 100% neutrals, 3 Q120U circuit breakers and 1 Q230U circuit breaker and the ground bar is not included. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.

  • Single-phase, 200 Amp main breaker load center with 40 spaces/40 circuits
  • Value pack load center includes 3 single pole 20-Amp circuit breakers and 1 double pole 30-Amp circuit breaker
  • Aluminum bus
  • Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
  • Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Single sided inboard neutral on 24 circuits and below; dual on 30 circuits and above
  • Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
  • A rigid, sturdy base pan provides the ruggedness required for the harshest applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$106.00 /each
$129.00 /each
$134.00 /each
$154.77 /each
Name Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover - Value Pack ES Series 200 Amp 40-Space 40-Circuit Main Breaker Load Center Value Pack ES Series 200 Amp 30-Space 54-Circuit Main Breaker Load Center Value Pack 200 Amp 40-Space 40-Circuit Type BR Main Breaker Load Center Value Pack
Brand Square D Siemens Siemens Eaton
Ratings (13) (1) (1) (3)
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
5
Load center height (in.)
38.75
Load center width (in.)
16

Details

Electrical Product Type
Load Center and Breaker Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
200
Mounting type
Plug In
Number of Phases
1
Number of Spaces
40
Product Weight (lb.)
38lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
10 YEAR

Specifications

Dimensions

Load center depth (in.)
5
Load center height (in.)
38.75
Load center width (in.)
16

Details

Electrical Product Type
Load Center and Breaker Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
200
Mounting type
Plug In
Number of Phases
1
Number of Spaces
40
Product Weight (lb.)
38lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
10 YEAR

Questions & Answers

Which meter box will work with this breaker box?

Which meter box will work with this breaker box?
Asked by: Martha
You should contact your local utility for a list of approved Siemens metering products. Any load calculations needed should be performed by a certified electrician or electrical contractor.
Answered by: SIEMENS Product Expert
Date published: 2017-11-28

Which Siemens breakers do you purchase for this box? Does it come with main breaker?

Asked by: Martha
Yes, S4040B1200P comes with a 200A main breaker. The approved branch breaker for standard use is the Type QP (for example Q120U for a single pole 20A). To download the wiring diagram with all approved breaker types go to link below and click on "Downloads" and enter S4040B1200P in the search box. http://w3.usa.siemens.com/powerdistribution/us/en/Pages/low-medium-voltage.aspx
Answered by: SIEMENS Product Expert
Date published: 2017-11-22

Is this nema 3r rated?

Asked by: Es
This one is not Nema 3R. This is a NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
Answered by: SIEMENS Product Expert
Date published: 2017-06-01

Is there a manual for this panel I can see on line?

Asked by: Aqbmr
Yes. The Installation Guide, Product Brochure, and Specification manuals are all available on the right-hand size of the product page.
Answered by: CommunityAnswer
Date published: 2016-07-23
  • y_2018, m_1, d_17, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_, sid_203027380, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 115ms
  • QUESTIONS, PRODUCT

Customer Reviews

ES Series 200 Amp 40-Space 40-Circuit Main Breaker Load Center Value Pack is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from I have bought Siemens for every upgrade in the last two homes I have owned. (20yrs) Great product... I have bought Siemens for every upgrade in the last two homes I have owned. (20yrs) Great product. No issues. I started using Siemens because I am a bit of a German nut. (silly I know) Square D seems old school and GE has always seemed average. Heard a lot of good things about Siemens and thought I would give them a shot. Love their copper bus idea. Only thing is in my haste I bought this one by mistake to be honest. I went to install this panel and realized it didn't have the copper bus. I had to use it. It was after 9pm and I was deep in the project. Had to restore power. I was getting really tired and still had to hook up 11 circuits. So I said screw it; keep going. I have an aluminum entry cable feeding it anyway so whatever. Its all put together and its working like a charm.
Date published: 2017-10-21
