Model # LF111NR

Internet #205623362

Store SO SKU #516939

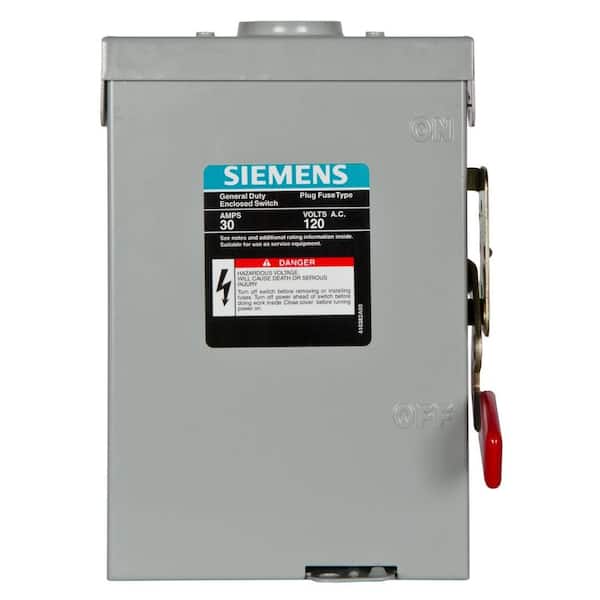

Siemens General Duty 30 Amp 240-Volt 1-Pole Outdoor Fusible Safety Switch with Neutral
0783643335134

Siemens

General Duty 30 Amp 240-Volt 1-Pole Outdoor Fusible Safety Switch with Neutral

  • Service Entrance labeled
  • 30 Amp, 1-Pole, 120/240V with Compact design
  • Fusible, with Solid Neutral
$4082 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Service Entrance labeled
  • 30 Amp, 1-Pole, 120/240V with Compact design
  • Fusible, with Solid Neutral
General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less where the available fault current is less than 100,000 Amp when used with Class R or T fuses or 10,000 Amp max when used with Class H fuses.
  • 120/240-Volt, single phase, 2 wire, fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Generous wiring gutters that meet or exceed NEC wire-bending space requirements
  • Visible blade, double-break switch action
  • Highly visible on/off indication
  • Single cover interlock
  • Side-hinged door that opens 180° for easier wiring
  • Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing

Product Overview

  • Service Entrance labeled
  • 30 Amp, 1-Pole, 120/240V with Compact design
  • Fusible, with Solid Neutral
Model #: LF111NR
Internet #: 205623362

General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less where the available fault current is less than 100,000 Amp when used with Class R or T fuses or 10,000 Amp max when used with Class H fuses.

  • 120/240-Volt, single phase, 2 wire, fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Generous wiring gutters that meet or exceed NEC wire-bending space requirements
  • Visible blade, double-break switch action
  • Highly visible on/off indication
  • Single cover interlock
  • Side-hinged door that opens 180° for easier wiring
  • Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$23.59 /each
$40.82 /each
$55.97 /each
$83.97 /each
Name General Duty 30 Amp 240-Volt 1-Pole Fusible Safety Switch with Neutral General Duty 30 Amp 240-Volt 1-Pole Outdoor Fusible Safety Switch with Neutral General Duty 30 Amp 240-Volt 3-Pole Indoor Fusible Safety Switch with Neutral General Duty 60 Amp 240-Volt 2-Pole Outdoor Fusible Safety Switch with Neutral
Brand Siemens Siemens Siemens Siemens
Ratings (0) (0) (1) (0)
Safety Switch Type Safety Safety Safety Safety
Automatic/Manual Manual Manual Manual Manual
Number of Phases 1 1 1 1
Maximum Amperage (amps) 30 30 30 60
Power Distribution Features Fusible Fusible Fusible Fusible
Voltage (volts) 240 240 120 240
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
5 in
Product Height (in.)
8 in
Product Width (in.)
6 in

Details

Automatic/Manual
Manual
Automatic/Manual
Manual
Electrical Product Type
Safety Switch
Features
No Additional Features
Maximum Amperage (amps)
30
Maximum Wattage
240 W
Number of Phases
1
Power Distribution Features
Fusible
Product Weight (lb.)
35 lb
Returnable
90-Day
Safety Switch Type
Safety
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

Specifications

Dimensions

Product Depth (in.)
5 in
Product Height (in.)
8 in
Product Width (in.)
6 in

Details

Automatic/Manual
Manual
Automatic/Manual
Manual
Electrical Product Type
Safety Switch
Features
No Additional Features
Maximum Amperage (amps)
30
Maximum Wattage
240 W
Number of Phases
1
Power Distribution Features
Fusible
Product Weight (lb.)
35 lb
Returnable
90-Day
Safety Switch Type
Safety
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR
