BC Galvanized Post Cap for 4x6 Nominal Lumber

  • Dual-purpose post cap/base
  • Secures bottom of posts or columns to concrete
  • Great for use on patios and decks
$ 5 99
Loading Options

Frequently Bought Together

Frequently Bought Together

Product Overview

Deck Glamour Photo

Deck It Out

Strong decks bring beauty and entertaining space to your outdoor living area

Deck Glamour Photo

Make Your Deck Beautiful and Safe

Building a safe, strong deck starts with the proper connectors and fasteners

Photo of a deck being built

Deck Building Tips and Tricks

Installing corrosion-resistant connectors and fasteners helps extend the life of your deck

SDWH Screw being installed into ledger

Ledger connections critical for deck safety

Strong-Drive® SDWH Timber-Hex HDG screw delivers high-strength, wood-to-wood connectivity, such as deck ledger applications

DTT2Z guardrail install

Guardrail Installation Tips and Tricks

Don’t take chances with guardrail connections. DTT2Z deck tension ties fasten guardrails to deck framing.

DTT1Z install

Securing the Deck to the House

Install DTT1Z as a tension tie to meet building codes and eliminate the need to access to the floor joists inside the home

LSCZ install

Take the Step to Secure Deck Stairs

LSCZ adjustable stair-stringer connector offers a concealed connection between the stair stringer and the carrying header or rim board

Tight LUS26Z install shot

Joist Hangers

Provides bearing and uplift resistance

Tight H1 install shot

Hurricane Ties

Ideal for preventing lateral movement of joists

Tight SD screw install photo

SD Connector Screw

The only screw approved with Simpson Strong-Tie connectors

Tight install shot of LCEZ4

Post Caps

LCEZ end post caps provide a post-to-beam connection in new or retrofit deck applications

Tight PBSZ install photo

Post Base

Features a 1 in. standoff to resist wood decay

Stainless-steel connector product shot

Prevent Corrosion

Deck-Drive DWP stainless-steel fasteners are recommended for higher-exposure environments or applications

  • Dual-purpose post cap/base
  • Secures bottom of posts or columns to concrete
  • Great for use on patios and decks

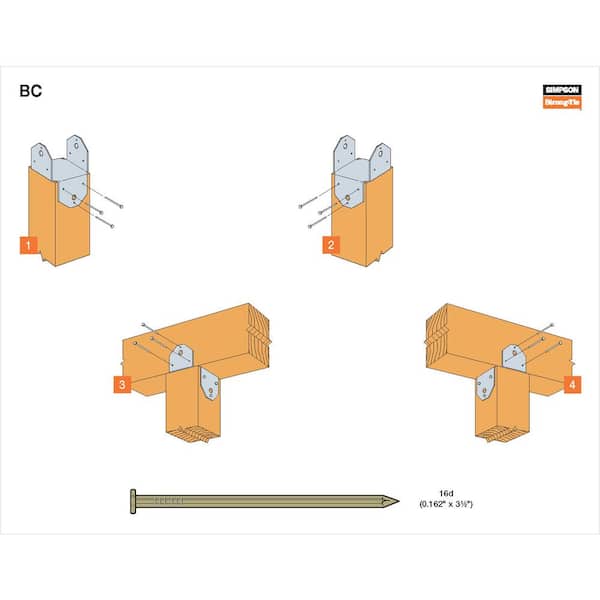

Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The BC series offers dual purpose post cap/base for light cap or base applications.
  • Provides a positive connection for a post to a wood deck
  • Stronger than angled nailing or screw fastening
  • Reduces the chance of the post splitting and eliminates nailing into end grain
  • Not recommended for non top-supported installations (such as fences or unbraced carports)
  • Nominal post size: 4x6
  • Made from 18-gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with 16d common nails or 16d x 2 1/2" joist hanger nails
  • Shop all Simpson Strong-Tie here.

Product Overview

  • Dual-purpose post cap/base
  • Secures bottom of posts or columns to concrete
  • Great for use on patios and decks
Model #: BC46
Sku #: 461660
Internet #: 100374964

Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The BC series offers dual purpose post cap/base for light cap or base applications.

  • Provides a positive connection for a post to a wood deck
  • Stronger than angled nailing or screw fastening
  • Reduces the chance of the post splitting and eliminates nailing into end grain
  • Not recommended for non top-supported installations (such as fences or unbraced carports)
  • Nominal post size: 4x6
  • Made from 18-gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with 16d common nails or 16d x 2 1/2" joist hanger nails
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Nominal Post Size (in.)
4x6
Product Depth (in.)
6
Product Height (in.)
5.563
Product Width (in.)
3.563

Details

Base Type
Half Base
Connector Finish
G90 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
18
Material
Steel
Material Connector Compatibility
Wood to Wood
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
0.74lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Specifications

Dimensions

Nominal Post Size (in.)
4x6
Product Depth (in.)
6
Product Height (in.)
5.563
Product Width (in.)
3.563

Details

Base Type
Half Base
Connector Finish
G90 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
18
Material
Steel
Material Connector Compatibility
Wood to Wood
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
0.74lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

Can you place this over a 4x4 post to help support a 4x6 beam? I'm having a shed built and need t...

Can you place this over a 4x4 post to help support a 4x6 beam? I'm having a shed built and need to run three 4x6 beams on top of my 4x4 posts I'm cementing in to the ground in order to build the foundation/floor of the shed on top of
Asked by: ThankYou
no
Answered by: buddy
Date published: 2019-04-03

Is this sized for double 2X over a 4x4 post?

Is this sized for double 2X over a 4x4 post?
Asked by: HomeDepotCustomer
no
Answered by: buddy
Date published: 2018-06-24

4x4 post to 3 2x8 beams

I have 3 2x8 beams bolted together horizontally. I want to support/connect one end to a 4x4 post vertically. Not sure which strong tie to get. Can you help? Actually width of the 3 2x8 beams together is 4.5 inches.
Asked by: Curts
no
Answered by: buddy
Date published: 2020-07-21

Would this work for a 4 x 6 post to a 4 x 8 beam

Would this work for a 4 x 6 post to a 4 x 8 beam
Asked by: biff
yes
Answered by: buddy
Date published: 2018-06-24
