Internet #205694616

Model #RPBZ

Store SKU #1001236714

RPBZ ZMAX Galvanized Retrofit Post Base for Double 2x4 Nominal Lumber

  • Versatile and easy to use post base
  • Designed to reinforce existing posts and columns
  • Corrosion resistance makes it great for outdoor applications
  • See More Details
$489

Frequently Bought Together

+
+
Price:
$489

Product Overview

Deck Glamour Photo

Deck It Out

Strong decks bring beauty and entertaining space to your outdoor living area

Deck Glamour Photo

Make Your Deck Beautiful and Safe

Building a safe, strong deck starts with the proper connectors and fasteners

Photo of a deck being built

Deck Building Tips and Tricks

Installing corrosion-resistant connectors and fasteners helps extend the life of your deck

SDWH Screw being installed into ledger

Ledger connections critical for deck safety

Strong-Drive® SDWH Timber-Hex HDG screw delivers high-strength, wood-to-wood connectivity, such as deck ledger applications

DTT2Z guardrail install

Guardrail Installation Tips and Tricks

Don’t take chances with guardrail connections. DTT2Z deck tension ties fasten guardrails to deck framing.

DTT1Z install

Securing the Deck to the House

Install DTT1Z as a tension tie to meet building codes and eliminate the need to access to the floor joists inside the home

LSCZ install

Take the Step to Secure Deck Stairs

LSCZ adjustable stair-stringer connector offers a concealed connection between the stair stringer and the carrying header or rim board

Tight LUS26Z install shot

Joist Hangers

Provides bearing and uplift resistance

Tight H1 install shot

Hurricane Ties

Ideal for preventing lateral movement of joists

Tight SD screw install photo

SD Connector Screw

The only screw approved with Simpson Strong-Tie connectors

Tight install shot of LCEZ4

Post Caps

LCEZ end post caps provide a post-to-beam connection in new or retrofit deck applications

Tight PBSZ install photo

Post Base

Features a 1 in. standoff to resist wood decay

Stainless-steel connector product shot

Prevent Corrosion

Deck-Drive DWP stainless-steel fasteners are recommended for higher-exposure environments or applications

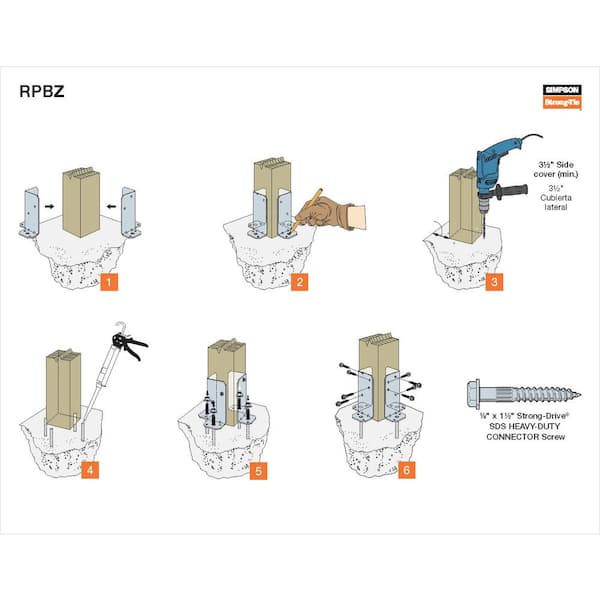

The RPBZ retrofit post base is designed to reinforce existing posts and columns. The single, versatile model will fit on any size post consisting of a double 2x4 or larger. RPBZ can also be used to reinforce new post-base connections, such as braced carports, patio covers, decks and other structures. The RPBZ can be installed with the CPS composite plastic standoff to meet a 1 in. post standoff code requirement. A single RPBZ can be installed on a post that is flush to a corner, and two RPBZs can be installed at away-from-edge conditions to fortify the post-base connection to resist both wind and seismic forces.
  • Designed to reinforce existing posts and columns
  • The single, versatile model will fit on any size post consisting of a nominal double 2x4 or larger
  • Can be used to reinforce new post-base connections such as braced carports, patio covers, trellises and other structures
  • Made from 12-Gauge steel
  • Comes standard in ZMAX finish to meet exposure conditions in many environments
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Nominal Post Size (in.)
Other
Product Depth (in.)
4
Product Height (in.)
5
Product Width (in.)
4

Details

Base Type
Regular Post Base
Connector Finish
G185 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
12
Material
Steel
Material Connector Compatibility
Wood to Wood
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
.93
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

24Questions19Answers

Would these be good to put up 4x4 on existing wood deck?

Asked by Theapprentice September 22, 2020
1
Answer

• The RPBZ retrofit post base is designed to reinforce existing posts and columns. • The RPBZ can also be used to reinforce new post-base connections, such as braced: carports, patio covers, decks and other structures. (braced is the important word here). • The RPBZ post bases do not provide adequate resistance to prevent members from rotating about the base and are therefore not recommended for non-top-supported installations (such as fences or unbraced carports). The top of the post must be restrained from moving horizontally by some other means, e.g., by tying the roof into a supporting structure or by adding knee bracing between the posts and beams. • Please see https://www.strongtie.com/products/connectors/wood-construction-connectors/technical-notes/bases-caps-general-notes Failure to follow all of the notes and instructions provided by Simpson Strong-Tie Company Inc. may result in improper installation of products. Improperly installed products may not perform to the specifications set forth in this catalog and may reduce a structure’s ability to resist the movement, stress and loading that occurs from gravity loads as well as impact events such as earthquakes and high-velocity winds. Simpson Strong-Tie Company Inc. does not guarantee the performance or safety of products that are modified, improperly installed or not used in accordance with the design and load limits set forth in this catalog.

would these work to anchor 4" x 4" x 8' pressure treated posts to a concrete slab for a Pergola 2...

Asked by Razor May 19, 2020
3
Answers

YES PUT ONE ON EACH SIDE FOR STABILITY

Can you screw these into wood (on a deck?) I am making a 6' tall wooden slatted privacy screen on...

Asked by leah April 8, 2020
3
Answers

• The RPBZ retrofit post base is designed to reinforce existing posts and columns. • The RPBZ can also be used to reinforce new post-base connections, such as braced: carports, patio covers, decks and other structures. (braced is the important word here). • The RPBZ post bases do not provide adequate resistance to prevent members from rotating about the base and are therefore not recommended for non-top-supported installations (such as fences or unbraced carports). The top of the post must be restrained from moving horizontally by some other means, e.g., by tying the roof into a supporting structure or by adding knee bracing between the posts and beams. • Please see https://www.strongtie.com/products/connectors/wood-construction-connectors/technical-notes/bases-caps-general-notes Failure to follow all of the notes and instructions provided by Simpson Strong-Tie Company Inc. may result in improper installation of products. Improperly installed products may not perform to the specifications set forth in this catalog and may reduce a structure’s ability to resist the movement, stress and loading that occurs from gravity loads as well as impact events such as earthquakes and high-velocity winds. Simpson Strong-Tie Company Inc. does not guarantee the performance or safety of products that are modified, improperly installed or not used in accordance with the design and load limits set forth in this catalog.

Will two of these work for a 8' long 6 x 6 post holding up a loft in a pole barn, anchoring it to...

Asked by Slash February 12, 2020
3
Answers

it should work but i would use two per post

Can these be used with a 4x4 on top of a composite deck to support the rails?

Asked by moe October 30, 2019
2
Answers

Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations, such as fences or unbraced car ports.

can I use for existing concrete foundation to 6X6 post for screen in porch? for 6X6 post, i have ...

Asked by happyhome April 29, 2019
2
Answers

Hi. Couple of things. 1) these are designed for double 2x4s, which conjoined are slightly smaller than a 4x4 post, so it's too small to completely support the 6x6. 2) It's unattractive and difficult to trim around, if aesthetics are important to you with this project. There are much better options for attaching structural support posts to concrete, such as the Simpson CPT 66Z (6x6) & Simpson CPT 44Z (4x4) when aesthetics are of concern. Otherwise, try the ABA 6x6 or ABA 4x4. But will be to be secured in the concrete with concrete epoxy adhesive. I'm giving you the 4x4 codes because using 6x6 posts for a screened porch may be overkill. 6x6s are commonly used for decks exposed to the elements and that by code in most Maryland jurisdictions, must be built self-supporting. Screened porches see roofed and generally you'd want the roof support posts closer together so your screening fits nicer. Anyway, that's just a thought--definitely check with your architect, engineer, or the county engineers to ensure you're in compliance. Hope that helps.

will a post sleeve fit over this

Asked by will April 23, 2019
1
Answer

If you are using a 3-1/2 P T post the post sleeve will fit over the post base, it you have one that is tight take a pencil mark the outline of the post base, then take a chisel and a hammer and trim it until it fits, best to measure each post and measure the post sleeve before you buy them at the home depot store, we use the same post base a lot never had a problem with them fitting.

In a question regarding the length of the connector to fasten the bracket for an outdoor project ...

Asked by Paul March 17, 2019
1
Answer

We use Tapcon 1/4 anchor screws for this type bracket when anchoring in concrete, it will hold up in most all types of weather, there are other concrete anchor that will work as well made by Hilti.

Can these be used to anchor 4x4 posts on a carport that has one side attached to a brick wall?

Asked by DYIGuy March 16, 2019
2
Answers

If I understand correctly, one side of your carport roof is attached to a brick wall, and the other will be supported by 4x4’s. I would say yes, these would work, I would probably use 2 on each post. Another consideration is that using these brackets will mean your posts will be sitting directly on the slab, which may ultimately lead to water degradation of the wood. I believe Simpson makes other brackets that create a separation between the two. Google may be your friend here.

I have a wobbly 4 x 4 wood deck railing post. The post does not go into the ground. Can I attach ...

Asked by HomeBeast October 11, 2018
1
Answer

We use these corner brackets a lot, the PVC sleeve will fit over the bracket if you counter sink, or tapper the holds slightly and use a flat head galv. screw, The best way is to trim the corners of the post and recess the bracket, you can modify the base a little if you have a grinder with a metal cutting disk to make the trim fit, beware you will lesson the structural integrates of the bracket when you modify it.
