Internet #205324434

Model # SUL2.37/11

0707392341109

SUL Galvanized Joist Hanger for 2-5/16 in. x 11-7/8 in. Engineered Wood, Skewed Left

  • Provides support underneath the joist, rafter or beam
  • Easy installation of single and double I-joists
  • Positive-angle nailing saves time
$ 13 91

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Provides support underneath the joist, rafter or beam
  • Easy installation of single and double I-joists
  • Positive-angle nailing saves time
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. SUL/SUR hangers provide a 45° connection between a joist and header.
  • SUL = skewed left
  • Can accommodate joists skewed 40 to 50 degrees
  • Angled nail slots direct nails for proper installation
  • Joist size: 2-1/4 in. to 2-5/16 in. x 11-7/8 in.
  • Made from 16-gauge steel
  • Galvanized (G90) for extra corrosion resistance

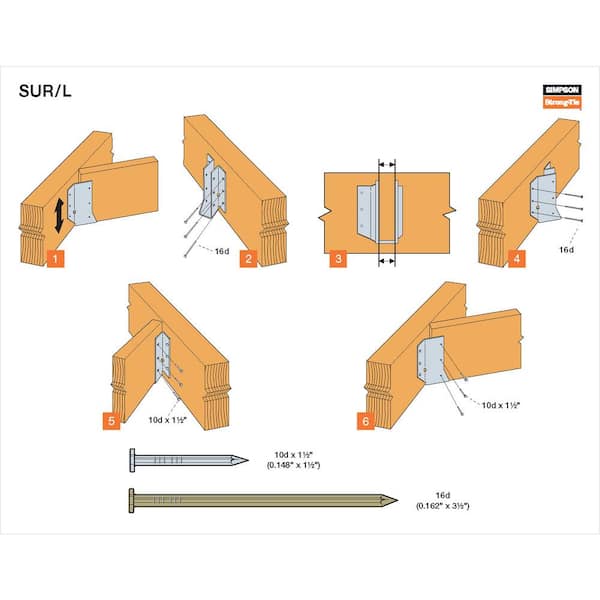

  • Install with 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
  • Shop all Simpson Strong-Tie here.

Product Overview

  • Provides support underneath the joist, rafter or beam
  • Easy installation of single and double I-joists
  • Positive-angle nailing saves time
Model #: SUL2.37/11
Internet #: 205324434

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. SUL/SUR hangers provide a 45° connection between a joist and header.

  • SUL = skewed left
  • Can accommodate joists skewed 40 to 50 degrees
  • Angled nail slots direct nails for proper installation
  • Joist size: 2-1/4 in. to 2-5/16 in. x 11-7/8 in.
  • Made from 16-gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Joist Hanger Size
I-Joist
Product Depth (in.)
4.1875
Product Height (in.)
11.25
Product Width (in.)
7.125 in

Details

Connector Finish
G90 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
16
Hanger Flange Type
Other
Hanger Modifications
Skewed
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
2.07lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Specifications

Dimensions

Joist Hanger Size
I-Joist
Product Depth (in.)
4.1875
Product Height (in.)
11.25
Product Width (in.)
7.125 in

Details

Connector Finish
G90 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
16
Hanger Flange Type
Other
Hanger Modifications
Skewed
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
2.07lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes
