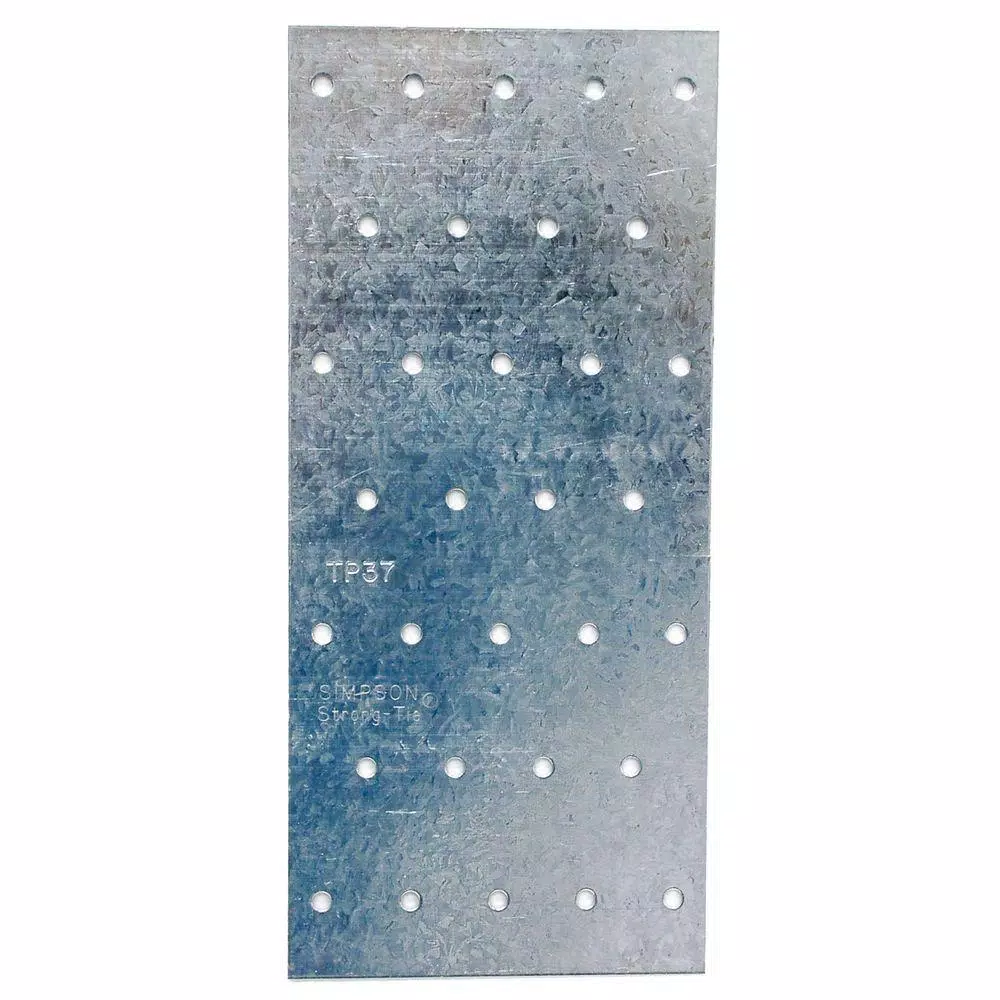

TP 3-1/8 in. x 7 in. 20-Gauge Galvanized Tie Plate

$239
  • Industry leader in structural hardware engineering since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line for DIY and residential
  • View More Details
Store
0 in stock
caret

Product Details

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference.
  • A versatile and easy-to-use tie plate for splicing and miscellaneous wood-to-wood connections
  • Ideal for reinforcing wood-to-wood connections on flat members
  • Staggered nail pattern for a secure connection that resists splitting
  • Available flat (TP) or with a flange (TPA) for added strength
  • Width: 3-1/8-in
  • Length: 7 in.
  • Made from 20-Gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with (32) 0.131 in. x 2-1/2 in. nails, 0.131 in. x 1-1/2 in. nails or #9 Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.
  • Return Policy

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

13Questions
caret
Q:I would like to use this to tie pressure treated edging together. Can this be buried?
by|Jun 18, 2022
4 Answers
Answer This Question

A:  Hello Ryan, Simpson Strong-Tie does not test any of our products below grade, so there is no way for us to give any sort of life expectancy if it is buried. Kind Regards, McKenzie

by|Jun 20, 2022

    A:  I would think it would be fine to use it the way you describe.

    by|Jun 18, 2022

      A:  Yes, the process of galvanization of steel provides a coating of zinc (more resistant to corrosive environments than the steel alone, and acts as a protective layer to the underlying steel. It has a life of from 20 to 50 years, depending on the environment, so a buried galvanized tie should last a goodly amount of time.

      by|Jun 21, 2022

        A:  Great plates for above ground, but personally I would never go below grade with it.

        by|Feb 15, 2023
          1 found this answer helpful
          caret
          Q:Is this plate pliable? I want to be able to bend it to cover part of a wooden fence post.
          by|Jan 19, 2021
          3 Answers
          Answer This Question

          A:  Yes, it can bend fairly easily

          by|Jan 23, 2021

          A:  TP plates are made of 20 gauge steel, which is 1 mm thick, and should be pliable for on-site adjustments.

          by|Jan 20, 2021

            A:  Yup. It is sheet metal with holes in it. If you have a bench vice, you can make straight bends.

            by|Jan 26, 2021
            caret
            Q:I have a split in a 4 x 4 load bearing post would TP37 be appropriate to cover/reinforce the split?
            by|Dec 8, 2020
            4 Answers
            Answer This Question

            A:  TP plates are not load-rated parts so I would not rely on this solution if there is a concern about structural performance of the post. TP is a utility connector plate that should only be used for non-structural applications. I would suggest having the post inspected by a qualified professional to determine an appropriate solution.

            by|Dec 9, 2020

              A:  This is a non-structural plate. The post would need to be replaced.

              by|Feb 5, 2021
              1 found this answer helpful

              A:  Use a HTP which is thicker gauge (16 ga.) and made to tension loads up to a certain point. Check the Simpson Strong-Tie specs for exact figures. It will do the job whereas the TP series is more of a non-structural mending plate type of connector. Using the proper type & number of fasteners is important too.

              by|Feb 5, 2021

                A:  To be honest i haven't actually tried it on load bearing posts. However it has worked to help reinforce splitting wood pieces for other projects. I have used it to combine pieces together.

                by|Dec 9, 2020
                caret
                Q:Can these be used to build roof trusses?
                by|Sep 12, 2020
                3 Answers
                Answer This Question

                A:  No they cannot

                by|Jan 23, 2021

                A:  You can, but a HTP would be better. Also, unless you have engineering/architectural design qualifications, and especially where a govt. agency inspection is required, I would strongly not recommend doing so. JMHO. :)

                by|Feb 5, 2021

                  A:  The TP Tie Plates are not load rated and are not for use to build trusses. We do not sell plates for field built roof trusses. Thank you!

                  by|Feb 8, 2021
                    1 found this answer helpful
                    Showing 1-4 of 13
                    caret

                    Customer Reviews

                    4.8 out of 5
                    (81)
                    • 4.8
                      out of 81 reviews
                    • 100% recommend this product
                    Filter by:
                    Showing 1-10 of 81 reviews
                    Very handy plate for tying/mending pieces of wood together. I used these during a fence installat...
                    Very handy plate for tying/mending pieces of wood together. I used these during a fence installation where some of my posts were off due to very large tree roots. I basically sistered 2x4s to the fence stringers to so I could secure the fence panels to a post that was about 6" too far away. The fence has panels on both sides, so the plate and unsightly work was hidden. The plate is a relatively thin 20 gauge but together with a 6 inch lag bolt, it was a solid mending of the two wood pieces. The plate has 32 staggered holes, I used 16 with Simpson Strong Tie #9 screws. You can also use 8d nails. The plate and screws are galvanized so they will outlive the fence itself.
                    by
                    • DIY
                    • Recommended
                    by
                    • Verified Purchase
                    by
                    • Verified Purchase
                    Quality excellent, but seems to be space for a more...
                    Quality excellent, but seems to be space for a more reasonable tag price. Ease of finding the materials and service still is the best in the industry.
                    by
                    • Verified Purchase
                    by
                    • Verified Purchase
                    by
                    • Verified Purchase
                    by
                    • Verified Purchase
                    Light weight version - I used it to tie together...
                    Light weight version - I used it to tie together a broken fence rail underneath. Does the job!
                    by
                    • Verified Purchase
                    by
                    • Verified Purchase
                    the best for joins 2x4 2x6...
                    the best for joins 2x4 2x6
                    by
                    • Verified Purchase
