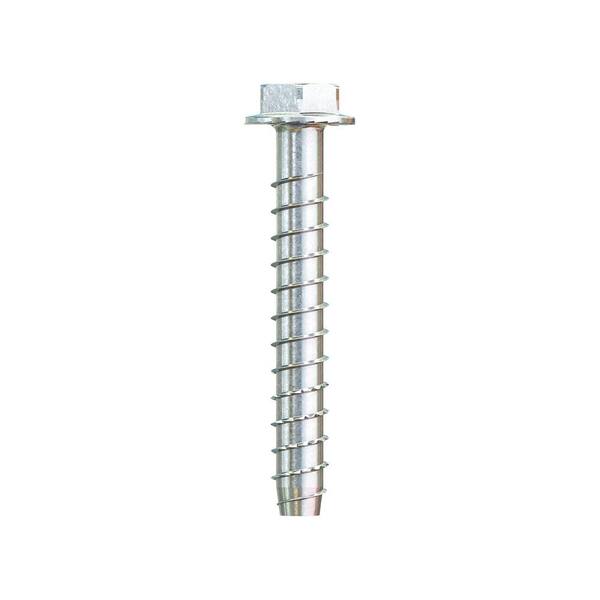

Titen HD 1/2 in. x 4 in. Zinc-Plated Heavy-Duty Screw Anchor

(10)Questions & Answers (5)
$238
/package
  • Global leader in structural construction products since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line trusted by Pros and DIYers alike
  • View More Details
Store
0 in stock
caret

Product Details

The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
  • Hex-washer head requires no separate washer and provides a clean installed appearance
  • Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
  • Zinc-plated carbon steel anchor can be used for temporary exterior applications
  • Size: 1/2 in. x 4 in.
  • Caution: Use a Titen HD screw anchor one time only - installing the anchor multiple times may result in excessive thread wear and reduce load capacity
  • Shop all Simpson Strong-Tie here.
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

5Questions
caret
Q:Suitable for use to tie down an exterior deck post base? Also , I?ll be using treated lumber.
by|Jun 29, 2023
1 Answer
Answer This Question

A:  Hi Kris, this is McKenzie from Simpson Strongtie. We'd like to address your question on the THD, but to better assist you please reach out to our customer service team at 800-999-5099.

by|Jun 29, 2023
    caret
    Q:Does the concrete have to be completely cured(28 days) or can I place them within a week or so of pouring?
    by|Jun 29, 2023
    1 Answer
    Answer This Question

    A:  Hi Kris, this is McKenzie from Simpson Strong-Tie. The THD's do require full cure of the concrete in order to achieve the loads we give for them. Installing into green concrete can alter the performance and may result in a reduction of load. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.

    by|Jun 29, 2023
      caret
      Q:Attempting fix warped horizontal 2X6 wood board. What size and type of drill bit would you recommend to make the hole to insert this Simson tie HD 1/2 x 5 in zinc plated screw threw the wood and into the concrete foundation?
      by|Sep 15, 2021
      1 Answer
      Answer This Question

      A:  Hello Sman, this is Ricardo with the Simpson Strong-Tie Company. In order to be sure the threads of the THD anchor pass through the wood, we would recommend you pre-drill the wood at 5/8" using a wood bit. For the concrete, using a masonry bit, it would be pre-drilled 1/2", since the threads are designed to cut into the concrete as the anchor is turning. Thank you for choosing our products. Have a great day.

      by|Sep 16, 2021
        caret
        Q:What size drill is required?
        by|May 13, 2021
        1 Answer
        Answer This Question

        A:  The 1/2" Titen HD anchors require a 1/2" drill bit. Thank you!

        by|May 8, 2023
          1 found this answer helpful
          Showing 1-4 of 5
          caret

          Customer Reviews

          5 out of 5
          (10)
          • 5
            out of 10 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-10 of 10 reviews
          Sep 5, 2022
          by
          • Verified Purchase
          Jan 14, 2021
          Used these to secure my gun safe to the concrete basement floor, worked great.
          Used these to secure my gun safe to the concrete basement floor, worked great.
          by
          • Verified Purchase
          • Recommended
          May 1, 2020
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Apr 21, 2020
          Much betteer than Tapcon...
          Much betteer than Tapcon
          by
          • Verified Purchase
          1 found this review helpful
          Apr 8, 2020
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Dec 10, 2019
          Very easy to use. You can install and remove and...
          Very easy to use. You can install and remove and reinstall with no problem. I will buy this product again.
          by
          • Verified Purchase
          Nov 13, 2019
          5 Star Review
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Jul 15, 2018
          Solid and strong bolts. Have to wait for the earthquake to find out if they work :-).
          Solid and strong bolts. Have to wait for the earthquake to find out if they work :-).
          by
            Jun 20, 2018
            Titian are very easy to use compared to expoxy....
            Titian are very easy to use compared to expoxy.
            by
            • Verified Purchase
            May 22, 2018
            My framers like using these over Redhead. Where additional...
            My framers like using these over Redhead. Where additional anchor bolts are needed for the base plate these anchors are quick and easy to install. They tighten down into the slab really well.
            by
            • Verified Purchase
            1 found this review helpful
            Showing 1-10 of 10 reviews
          • Titen HD 1/2 in. x 5 in. Zinc-Plated Heavy-Duty Screw Anchor
            (10)
            $313
            /package

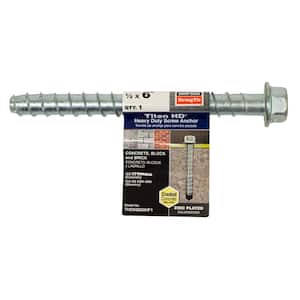

          • Titen HD 1/2 in. x 6 in. Mechanically Galvanized Heavy-Duty Screw Anchor
