Model #THD50800HMG

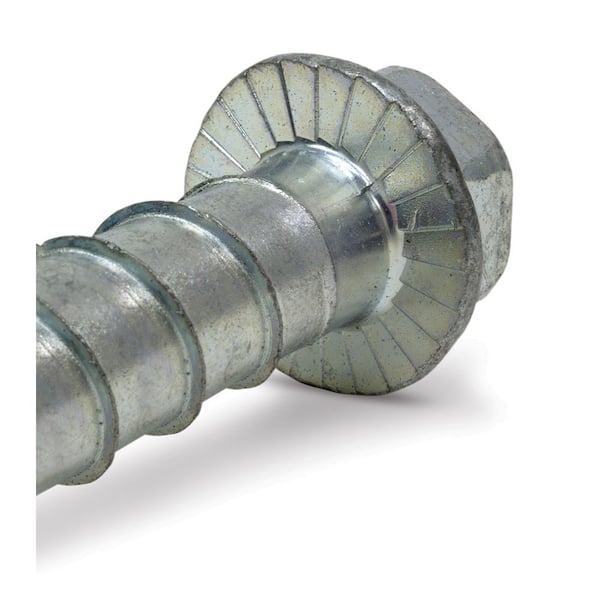

Titen HD 1/2 in. x 8 in. Mechanically Galvanized Heavy-Duty Screw Anchor (20-Pack)

  • The Professional's Choice
  • Can install closer to the edge of concrete than expansion anchors
  • Approved for use in seismic areas
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

The Titen HD is a patented, high-strength, easy-to-install screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titen HD demonstrates industry-leading performance even in seismic conditions.
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
  • No special drill bit required - designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
  • Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
  • Mechanical Galvanized - intended for some pressure-treated wood sill plate applications; not for use in other corrosive or outdoor environments
  • Removable - ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
  • Caution: Use a Titen HD screw anchor one time only - installing the anchor multiple times may result in excessive thread wear and reduce load capacity
  • Shop all Simpson Strong-Tie here.
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Masonry & Concrete Anchors

current product
Titen HD 1/2 in. x 8 in. Mechanically Galvanized Heavy-Duty Screw Anchor (20-Pack)
1 in. x 12 in. Kwik Bolt 3 Carbon Steel Expansion Anchor (5-Piece)New3/4 in. x 9 in. Kwik Hus EZ Corrosion-Resistant Coating Screw Anchor for Concrete and Masonry (10-Piece)3/4 in. x 12 in. Kwik Bolt 3 Carbon Steel Expansion Anchor (10-Piece)
BrandSimpson Strong-TieHiltiHiltiHilti
NameTiten HD 1/2 in. x 8 in. Mechanically Galvanized Heavy-Duty Screw Anchor (20-Pack)1 in. x 12 in. Kwik Bolt 3 Carbon Steel Expansion Anchor (5-Piece)3/4 in. x 9 in. Kwik Hus EZ Corrosion-Resistant Coating Screw Anchor for Concrete and Masonry (10-Piece)3/4 in. x 12 in. Kwik Bolt 3 Carbon Steel Expansion Anchor (10-Piece)
Price
Ratings
(5)
(0)
(0)
(2)
Fastener Length (in.)812912
Fastener Head StyleHexHex NutHexHex Nut
Fastener/Connector MaterialSteelSteelSteelSteel
Package Quantity2051010
Maximum Weight Capacity (lb.)0.00 0
Finish FamilyOtherZincGalvanizedZinc
Anchor Diameter (in.)1/2"1"3/4"3/4"
Fastener TypeConcrete ScrewsAnchor BoltsConcrete ScrewsWedge Anchors
View ProductView ProductView ProductView Product

Specifications

Dimensions

Anchor Diameter (in.)
1/2"
Anchor Length (in.)
8
Fastener Length (in.)
8
Required Drill Hole Size (in.)
0.625

Details

Color Family
Steel
Fastener Head Style
Hex
Fastener Plating
Galvanized
Fastener Type
Concrete Screws
Fastener/Connector Material
Steel
Fastening Base Material
Brick,Cinder Block,Concrete
Features
No Additional Features
Finish
Mechanically Galvanized
Finish Family
Other
Included
No Additional Items Included
Interior/Exterior
Exterior,Interior
Maximum Weight Capacity (lb.)
0.00
Measurement Standard
SAE
Package Quantity
20
Product Weight (lb.)
0.5676
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

5Questions5Answers

Are these mechanically galvanized (as opposed to SS) screws approved for use with treated lumber?

Asked by Rick February 9, 2021
1
Answer

THD anchors with mechanically galvanized finish can be used with preservative treated wood but we recommend to use them in interior dry conditions. These screw anchors are made of heat treated steel which is not recommended for exterior wet conditions. Consider using THD made of stainless steel. Copy and paste the following link into your web browser for information on stainless steel THD: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thdss_anchor/p/stainless-steel-titen-hd

I am wondering what the weight bearing load of this screw is.

Asked by Chris April 25, 2020
1
Answer

The Titen HD anchors are rated for tension and shear. There are several factors to be considered to determine the allowable load: concrete strength, bolt location, bolt spacing, local building codes, etc. Please feel free to contact our Engineering Support Department at 800-999-5099 for further assistance. Thank you!

Is this available in stores?

Asked by Brian October 17, 2017
1
Answer

Hi Brian, this 1/2 in. x 8 in. Mechanically Galvanized Titen Heavy Duty Screw Anchor (20 per Pack) is not offered in stores, which you can verify by seeing if a "Store SKU" is presented near the model and internet numbers.

I can't find how many are included either

Asked by ramatsu March 26, 2016
1
Answer

The package contains 20.

How many Titens come in this order?

Asked by AMPanther February 21, 2016
1
Answer

A box comes with 20 Titens.

Customer Reviews

  • 4.8
    out of 5 reviews
  • 100% recommend this product
Filter by:
Showing 1-5 of 5 reviews
Best anchor I ever used for attachment to concrete!! ...
Best anchor I ever used for attachment to concrete!! Great price because Home Depot has decided to clearance!! Your loss my gain.. Stupid *SS move once again on Home Depots part and there over paid buyers!!Good Work Home Depot Dan Hale
by Dhale
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
We installed 26 fasteners in to 4000psi fiber reinforced ...
We installed 26 fasteners in to 4000psi fiber reinforced concrete with 6" engagement. Using a Makita rotary/ hammer drill. We found the drill diameter was abraded to the point fasteners bound. Our solution was to pilot the holes with an older drill and final size the with a newer bit.
by Paul
1 person found this helpful
Worked really well. Need soap to help because they are...
Worked really well. Need soap to help because they are hard to screw in, or use a 17/32 bit
by HomeDepotCustomer
Great product. We used this for the mudsill on our new garage. Being able to install the anchors ...
Great product. We used this for the mudsill on our new garage. Being able to install the anchors in between the studs after walls are placed sure beats cutting up the studs when the cast anchor bolts are in a bad spot.
by Karey
