Model #THD37500HMG

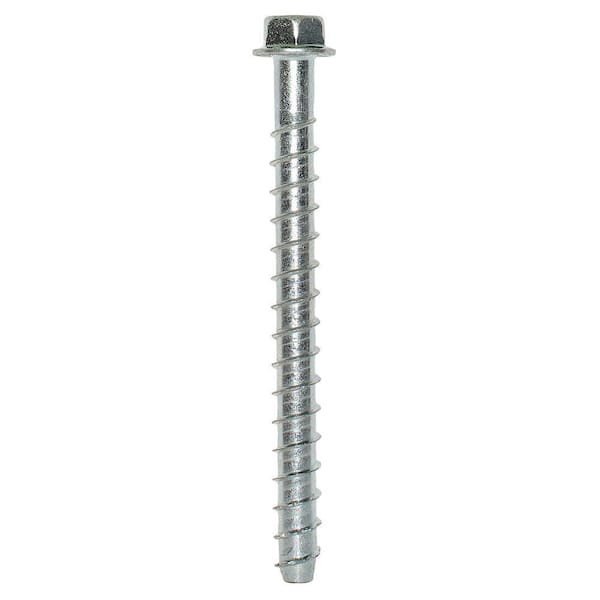

Titen HD 3/8 in. x 5 in. Mechanically Galvanized Heavy-Duty Screw Anchor (50-Pack)

(1)
Questions & Answers (1)
  • The Professional's Choice
  • Can install closer to the edge of concrete than expansion anchors
  • Approved for use in seismic areas
  • See More Details

Product Overview

The Titen HD is a patented, high-strength, easy-to-install screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titen HD demonstrates industry-leading performance even in seismic conditions.
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
  • No special drill bit required - designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors

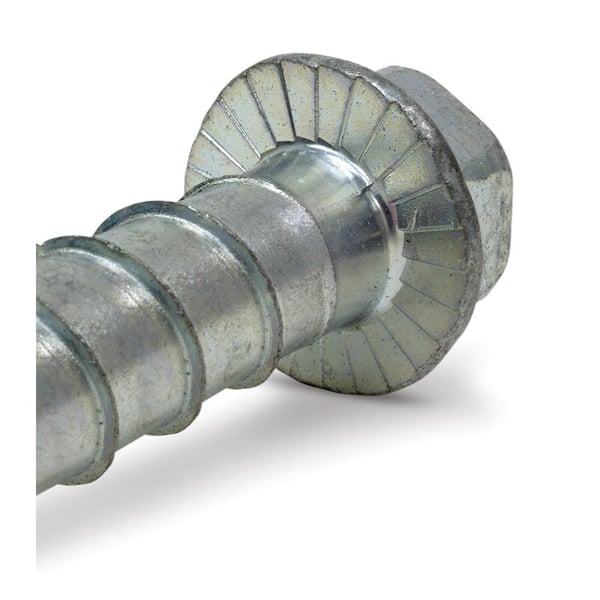

  • Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
  • Mechanical Galvanized - intended for some pressure-treated wood sill plate applications; not for use in other corrosive or outdoor environments
  • Removable - ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
  • Caution: Use a Titen HD screw anchor one time only - installing the anchor multiple times may result in excessive thread wear and reduce load capacity
  • Learn more about concrete anchors here.
  • Shop all Simpson Strong-Tie here.
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Masonry & Concrete Anchors

current product
Titen HD 3/8 in. x 5 in. Mechanically Galvanized Heavy-Duty Screw Anchor (50-Pack)
New3/8 in. x 5 in. Kwik Hus EZ SS316 Screw Anchor for Concrete and Masonry (25-Piece)New1/4 in. x 2-1/2 in. Kwik Hus EZ SS316 Screw Anchor for Concrete and Masonry (50-Piece)New1/4 in. x 3 in. Kwik Hus EZ SS316 Screw Anchor for Concrete and Masonry (50-Piece)
BrandSimpson Strong-TieHiltiHiltiHilti
NameTiten HD 3/8 in. x 5 in. Mechanically Galvanized Heavy-Duty Screw Anchor (50-Pack)3/8 in. x 5 in. Kwik Hus EZ SS316 Screw Anchor for Concrete and Masonry (25-Piece)1/4 in. x 2-1/2 in. Kwik Hus EZ SS316 Screw Anchor for Concrete and Masonry (50-Piece)1/4 in. x 3 in. Kwik Hus EZ SS316 Screw Anchor for Concrete and Masonry (50-Piece)
Price
Ratings
(1)
(1)
(0)
(0)
Fastener Length (in.)552.53
Fastener Head StyleHexHexHexHex
Fastener/Connector MaterialSteelSteelSteelSteel
Package Quantity50255050
Maximum Weight Capacity (lb.)0.00000
Finish FamilyOtherStainless SteelStainless SteelStainless Steel
Anchor Diameter (in.)3/8"3/8"1/4"1/4"
Fastener TypeConcrete ScrewsConcrete ScrewsConcrete ScrewsConcrete Screws
View ProductView ProductView ProductView Product

Specifications

Dimensions

Anchor Diameter (in.)
3/8"
Anchor Length (in.)
5
Fastener Length (in.)
5
Required Drill Hole Size (in.)
0.5

Details

Color Family
Steel
Fastener Head Style
Hex
Fastener Plating
Galvanized
Fastener Type
Concrete Screws
Fastener/Connector Material
Steel
Fastening Base Material
Brick,Cinder Block,Concrete
Features
No Additional Features
Finish
Mechanically Galvanized
Finish Family
Other
Included
No Additional Items Included
Interior/Exterior
Exterior,Interior
Maximum Weight Capacity (lb.)
0.00
Measurement Standard
SAE
Package Quantity
50
Product Weight (lb.)
0.2024
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

1Questions1Answers

Anchor screw application

Asked by Jason June 17, 2016
1
Answer

We have a few different 4x4 adjustable post bases. This anchor would be an option for those that require a 5/8" diameter anchor, but it is up to the Designer to specify the anchor bolt type, length and embedment. Please see the C-A-2016 catalog for complete installation instructions for this anchor. Thank you!

Customer Reviews

  • 5
    out of 1 reviews
  • 0% recommend this product
Filter by:
Showing 1-1 of 1 reviews
5/8 drill worked like a charm. 16 bolts and...
5/8 drill worked like a charm. 16 bolts and the only problem was one hole was not drilled deep enough. I recommend blowing the holes out with an air compressor
