#1 Home Improvement Retailer

Internet #100122624

Model #521-943HN

Store SKU #103799

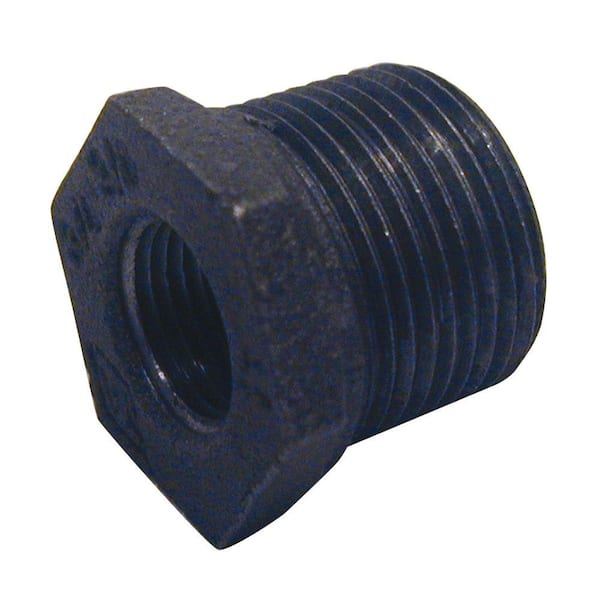

3/4 in. x 1/2 in. Black Malleable Iron Hex Bushing

  • Threaded end connects 2 pipes and gives watertight joints
  • Resists up to 350 F and ensures long-term usage
  • Withstands work pressure up to 300 PSI
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Connect pipes of different sizes with the Mueller Global 3/4 in. x 1/2 in. black iron hex bushing. Used in gas, oil, and air applications, the reliable hex bushing meets ASTM and ASME standards and has ANSI B 1.20.1 approved threads. The bushing's Class 150 lb. malleable iron construction makes it durable.
  • Inserts into female threading of a fitting to reduce size of a pipe or fitting
  • For use with gas, oil, and air applications
  • Malleable iron class 150 lb.
  • Meets ASTM and ASME standards
  • Threads comply with ANSI b 1.20.1
  • Note: product may vary by store
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Double Fitting Size
3/4" x 1/2"
Fitting 1 size
3/4"
Fitting 2 size
1/2"
Product Length (in.)
1.5 in

Details

Application
Oil
Color Family
Black
Color/Finish
Black
Compatible Pipe Material
Steel
Connection 1
M
Connection 2
FIP
Connectivity
Threaded
Features
Threaded
Fitting or Connector Type
Bushing
Fitting/ Connector Collection
Black
Material
Iron
Maximum working pressure (psi)
300
Maximum Working Temperature (F)
350
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.13 lb
Reducing Fitting
Yes

Warranty / Certifications

Manufacturer Warranty
1 Year

Questions & Answers

2Questions1Answers

Would these fit onto a Maverick 16-Gauge Square Point Shovel with 47 in. Ash Wood Handle.

Asked by Aidan December 27, 2016
0
Answers

Does this have 1/2-28 internal threads and 3/4-16 external threads?

Asked by craftysquash April 5, 2015
1
Answer

No. This sizing you see is NPT, typically used for Natural Gas pipe. National Pipe Thread Taper (NPT) is a U.S. standard for tapered threads used on threaded pipes and fittings. In contrast to straight threads that are found on a bolt, a taper thread will pull tight and therefore make a fluid-tight seal. The Thread Pitch of 1/2" NPT and 3/4" NPT is 14 TPI (threads per inch). The Pipe Nominal Outside Diameter is 0.84" for 1/2" NPT and 1.05" for 3/4" NPT.

Customer Reviews

  • 4
    out of 6 reviews
  • 33% recommend this product
Filter by:
Showing 1-6 of 6 reviews
The fitting worked perfectly on my old galvanized pipe, so I could convert to a flexible pipe
The fitting worked perfectly on my old galvanized pipe, so I could convert to a flexible pipe
by Mj
Good hex bushing for reducing down from 3/4" to 1/2"...
Good hex bushing for reducing down from 3/4" to 1/2" black pipe.
by madmax
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
The fit was perfect with no leaking. I needed this...
The fit was perfect with no leaking. I needed this bushing to enable the installation of a faucet. I used teflon tape on the threads. As with any iron pipe, I expect that the bushing will rust over time.
by Chris
1 person found this helpful
start rusting after 2 days so it's not healthy to use the water for drinking or cooking.
start rusting after 2 days so it's not healthy to use the water for drinking or cooking.
by Saddawi
Most likely not
I think the 1/2 is 1/2-9. It's no more than a 13. If you take standard 1/2" bolt the threads will not match in spacing and your best bet is to go with a smaller size and rework it to the right size. But you are much better off looking for something that is special made,it will end up a lot cheaper. And what could you be do to need threads that are so tight.
by Bigdaddyd06
Showing 1-6 of 6 reviews
